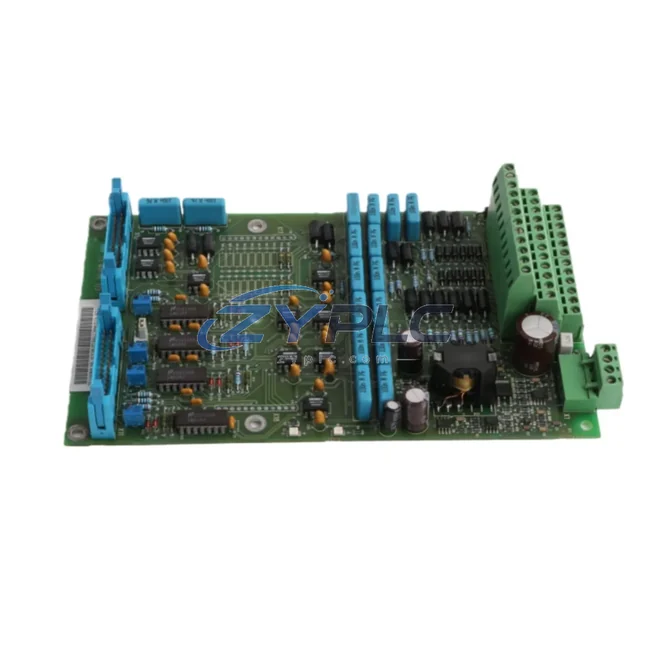

ABB LDMUI-01 61320946C Power Control Module

ABB LDMUI-01 61320946C Power Control Module for ACS Automation

The ABB LDMUI-01 61320946C is a precision-engineered power control module designed for integration within ABB’s ACS series variable frequency drive platforms. In modern industrial environments where equipment uptime and replacement lead time directly affect production continuity, this module plays a critical role in bridging the gap between drive-level power regulation and system-wide maintenance planning. Whether deployed in continuous process lines, discrete manufacturing cells, or multi-axis motion systems, the LDMUI-01 61320946C delivers stable, measurable improvements in motor control efficiency, power factor management, and overall drive system responsiveness.

Industrial facilities operating ABB ACS drives — including the ACS580, ACS880, and ACS380 series — frequently encounter challenges related to uncontrolled energy draw during motor acceleration, inconsistent torque delivery under variable load conditions, and excessive heat generation from poorly regulated power stages. The LDMUI-01 61320946C addresses these issues at the hardware level, enabling the drive to maintain tighter control over output voltage and current waveforms, which directly reduces reactive power losses and minimizes thermal stress on connected motor windings.

From an condition monitoring perspective, when paired with ABB’s NETA-21 remote monitoring adapter or integrated into a PROFIBUS DP or Modbus RTU communication network, the LDMUI-01 61320946C allows plant engineers to capture real-time power consumption data at the drive level. This granular visibility into per-drive energy usage is essential for identifying inefficiencies in production scheduling, detecting abnormal load patterns that indicate mechanical wear, and validating the ROI of operational-efficiency initiatives across the facility.

Product Specification Table

System Compatibility and Application

The LDMUI-01 61320946C does not operate in isolation — its value is fully realized when it functions as part of a coordinated automation architecture. In a typical ABB-based drive system, the module interfaces directly with the ACS880 main drive board, working alongside the RDCU-02C drive control unit to manage pulse-width modulation parameters and gate drive signals for the IGBT power stage. This coordination ensures that motor acceleration ramps are executed with minimal current overshoot, reducing peak demand charges and protecting both the motor and the upstream power distribution infrastructure.

For multi-axis applications, the LDMUI-01 61320946C is commonly deployed alongside the RINT-5514C rectifier interface board, which manages the DC bus voltage shared across multiple drive units in a common DC bus topology. This architecture is particularly effective in regenerative applications — such as crane hoists, winding machines, and test benches — where braking energy from one axis can be redistributed to accelerating axes, dramatically reducing net operating load from the grid.

On the I/O and signal conditioning side, the module integrates with ABB’s RAIO-01 analog I/O extension module and RDIO-01 digital I/O module, enabling precise feedback loops between the drive and field sensors such as encoders, thermistors, and current transformers. This closed-loop architecture allows the ACS drive system to dynamically adjust motor speed and torque in response to real-time process demands, eliminating the unplanned downtime associated with fixed-speed motor operation.

For facilities implementing centralized maintenance planning, the LDMUI-01 61320946C-equipped drive system can be connected to an ABB AC500 PLC via PROFIBUS DP or EtherNet/IP, enabling the controller to issue speed reference commands, monitor drive fault registers, and log operating load data to a central SCADA or MES platform. The CP600 HMI panel can then visualize per-drive energy KPIs in real time, giving operators immediate feedback on production efficiency and enabling rapid response to energy anomalies.

In power quality-sensitive environments, the LDMUI-01 61320946C works in conjunction with ABB’s FENA-21 Ethernet adapter module to support EtherNet/IP and PROFINET communication, ensuring that drive status and energy data are available to higher-level control systems without additional protocol conversion hardware. This reduces both installation complexity and the latency associated with energy data reporting, which is critical for real-time demand response programs.

Maintenance and Replacement Notes

In automotive body shop welding lines, where dozens of servo-driven positioning axes operate simultaneously, uncoordinated power draw during simultaneous acceleration events can cause significant voltage sag on the local distribution bus. By deploying the LDMUI-01 61320946C within each ACS drive unit, plant engineers can implement staggered acceleration profiles coordinated by the AC500 PLC, smoothing the aggregate current demand curve and reducing peak kVA draw by a measurable margin. This directly translates to lower demand charges on the facility’s electricity tariff and reduced stress on transformer and switchgear infrastructure.

In pump and fan applications — which represent the largest share of industrial motor load globally — the LDMUI-01 61320946C enables the ACS drive to implement precise affinity law-based speed control. Since pump power consumption scales with the cube of speed, even a 10% reduction in operating speed achieved through accurate drive control can reduce operating load by approximately 27%. The LDMUI-01 61320946C’s role in maintaining stable, accurate speed reference tracking is therefore directly linked to quantifiable operational stability in HVAC, water treatment, and process cooling applications.

From a predictive maintenance perspective, the module’s integration with the ACS drive’s internal diagnostics allows continuous monitoring of IGBT junction temperatures, DC bus voltage ripple, and output current harmonic content. Deviations from baseline values — which may indicate capacitor aging, cooling fan degradation, or motor insulation deterioration — can be detected early and flagged for scheduled maintenance, avoiding the unplanned downtime and associated production losses that result from reactive maintenance strategies. Combined with a warranty terms confirmed during quotation on the LDMUI-01 61320946C itself, this predictive capability significantly reduces the total cost of ownership for the drive system.

All units supplied by ZYPLC undergo functional testing prior to shipment, including power-up verification, communication interface checks, and output signal validation. This ensures that replacement modules integrate seamlessly into existing ACS drive systems without requiring additional commissioning time, minimizing production line downtime during maintenance events.

Product Sourcing FAQ

Q1: How does the ABB LDMUI-01 61320946C contribute to measurable operational stability in an ACS drive system?
The LDMUI-01 61320946C improves the quality of the drive’s output voltage and current waveforms, reducing reactive power losses and harmonic distortion. In variable-torque applications such as pumps and fans, this enables more accurate speed control, which directly reduces operating load in accordance with affinity laws. In multi-drive systems using a common DC bus topology, it also supports energy regeneration between axes, further reducing net grid energy draw.

Q2: Is the LDMUI-01 61320946C compatible with all ABB ACS drive models?
The LDMUI-01 61320946C is primarily designed for use within ABB’s ACS series drive platforms, including the ACS580, ACS880, and ACS380 families. Compatibility depends on the specific drive frame size and firmware version. We recommend verifying the drive’s hardware revision and consulting the ABB ACS drive documentation before installation. Our technical team can assist with compatibility confirmation prior to purchase.

Q3: What is the recommended replacement procedure to minimize production downtime?
For planned replacement, we recommend procuring the LDMUI-01 61320946C as a pre-tested spare and scheduling the swap during a planned maintenance window. The module should be installed with the drive de-energized and DC bus fully discharged. After installation, perform a drive parameter backup restore and run a no-load test cycle before returning the drive to production. ZYPLC supplies pre-tested units to eliminate the need for incoming inspection, reducing total replacement time.

Q4: What warranty and after-sales support does ZYPLC provide for the LDMUI-01 61320946C?
All ABB LDMUI-01 61320946C modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Units are tested prior to dispatch and shipped with documentation of test results. In the event of a warranty claim, ZYPLC provides rapid replacement to minimize production impact. For technical support, contact our team at plc.sales@zyplc.com or +86 19859288691.
