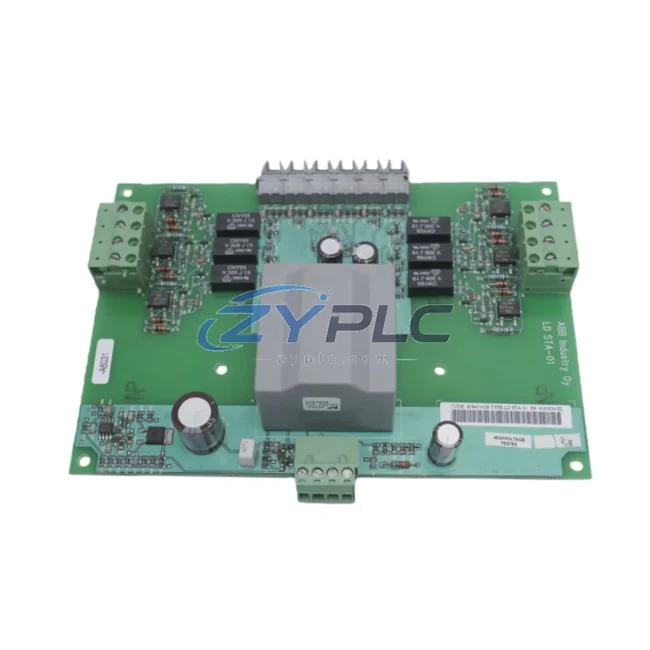

ABB LDSTA-01 63940143B Industrial Network Interface for ACS Series

ABB LDSTA-01 63940143B: Industrial Data Link for Smart Factory ACS Drive Networks

The ABB LDSTA-01 63940143B is a high-performance fieldbus communication gateway engineered to bridge ABB ACS series variable frequency drives with plant-wide industrial networks. Designed for demanding automation environments, this module enables seamless protocol conversion between PROFIBUS-DP and DeviceNet architectures, delivering real-time process data from the drive layer directly to SCADA systems, DCS platforms, and HMI terminals. In modern smart factory deployments where data transparency and network reliability are non-negotiable, the LDSTA-01 63940143B serves as a critical connectivity node — eliminating data silos and ensuring that every drive parameter, fault code, and operational status is visible across the entire control hierarchy.

Whether integrated into a new greenfield automation project or retrofitted into an existing ACS800, ACS550, or ACS355 drive installation, the LDSTA-01 63940143B provides the communication backbone that connects field-level devices to supervisory control layers. Its compact form factor slots directly into the ABB drive option slot, requiring no external power supply or additional mounting hardware, which significantly reduces installation time and panel space requirements on the factory floor.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory data flow, the ABB LDSTA-01 63940143B sits at the intersection of the drive layer and the fieldbus network, acting as the protocol translator that makes drive intelligence accessible to the broader automation ecosystem. At the field level, sensors and encoders feed real-time process variables — speed references, torque feedback, motor current, and thermal status — into the ACS series drive. The LDSTA-01 63940143B then packages this data into PROFIBUS-DP or DeviceNet frames and transmits it upstream to the PLC controller, typically an ABB AC500 PLC or a Siemens S7-300/S7-400 series controller acting as the PROFIBUS master.

From the PLC, process data flows into the SCADA layer, where platforms such as ABB System 800xA or Wonderware InTouch aggregate drive status from multiple LDSTA-01-equipped drives across the production line. Operators at HMI terminals — including ABB CP600 operator panels or Siemens TP700 Comfort panels — can monitor drive speed, output frequency, fault history, and energy consumption in real time, without requiring direct serial connections to each individual drive.

For remote I/O expansion, the PROFIBUS-DP network supported by the LDSTA-01 63940143B can simultaneously carry data from distributed I/O modules such as ABB S900 remote I/O or Phoenix Contact Inline remote I/O stations, allowing a single network cable run to serve both drive control and distributed sensor/actuator data. In DeviceNet configurations, the gateway integrates naturally with Allen-Bradley 1756-DNB DeviceNet scanner modules, enabling cross-platform connectivity between ABB drives and Rockwell Automation control architectures.

Edge computing nodes — such as ABB Edge Connect gateways or Moxa MGate protocol converters — can sit downstream of the PROFIBUS network to aggregate data from multiple LDSTA-01-equipped drives and push structured datasets to cloud-based MES or ERP platforms via OPC-UA or MQTT. This architecture supports predictive maintenance workflows, where drive vibration trends, thermal profiles, and fault frequency data are analyzed against production KPIs to schedule maintenance before unplanned downtime occurs.

For power distribution and drive protection, the LDSTA-01 63940143B installation is typically paired with ABB SACE Emax circuit breakers and ABB UNO-series industrial power supplies, ensuring that the communication module and its host drive operate within stable voltage and current parameters throughout the production cycle. The complete data chain — from field sensor through drive, gateway, PLC, SCADA, and cloud analytics — is what defines the connected smart factory, and the LDSTA-01 63940143B is the link that makes the drive layer a full participant in that chain.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different equipment generations and vendor ecosystems. A production line may simultaneously operate ABB ACS drives on PROFIBUS-DP, legacy Modbus RTU sensors, and newer EtherNet/IP-based controllers — creating data islands where critical drive parameters are invisible to the plant’s SCADA or MES systems. The ABB LDSTA-01 63940143B directly addresses this challenge by providing a standardized fieldbus interface that integrates ACS series drives into the plant’s primary network architecture without requiring drive replacement or custom software development.

Protocol unification is achieved at the hardware level: the LDSTA-01 63940143B translates the drive’s internal communication into PROFIBUS-DP or DeviceNet frames that any compliant PLC master or SCADA OPC server can read natively. This eliminates the need for intermediate protocol converters or custom driver development, reducing both integration cost and potential points of failure in the communication chain.

Remote monitoring and diagnostics become straightforward once drives are connected via the LDSTA-01 63940143B. Maintenance engineers can access drive fault logs, runtime hours, energy consumption data, and parameter sets from the SCADA workstation or even from mobile HMI applications — without walking the factory floor or connecting a laptop directly to the drive. This capability is particularly valuable in large facilities with dozens of drives distributed across multiple production zones, where manual inspection of each drive would consume significant maintenance labor.

Production line transparency is enhanced by the ability to correlate drive data with upstream and downstream process variables in real time. When a conveyor drive equipped with an LDSTA-01 63940143B reports an overcurrent fault, the SCADA system can immediately cross-reference the event with upstream sensor data, downstream throughput metrics, and adjacent drive status — enabling root cause analysis in minutes rather than hours. System expansion is equally straightforward: adding a new ACS drive to an existing PROFIBUS-DP network requires only the installation of an additional LDSTA-01 63940143B module and a network address assignment, with no changes to the PLC program or SCADA configuration required for basic drive monitoring.

Industrial Connectivity FAQ

Q1: What is the maximum communication speed supported by the ABB LDSTA-01 63940143B on a PROFIBUS-DP network?
The LDSTA-01 63940143B supports PROFIBUS-DP transmission speeds up to 12 Mbit/s, which is the maximum standard PROFIBUS-DP baud rate. In practice, network speed is determined by the cable length and the number of nodes on the segment; for most industrial installations with cable runs under 100 meters, 1.5 Mbit/s to 12 Mbit/s operation is achievable with standard PROFIBUS cable.

Q2: Is the ABB LDSTA-01 63940143B compatible with all ACS series drives, and does it require firmware updates?
The LDSTA-01 63940143B is designed for ABB ACS series drives including the ACS800, ACS550, ACS355, and ACS150 families. Compatibility depends on the drive’s option slot type and firmware version. It is recommended to verify the drive’s option slot specification against the LDSTA-01 installation manual before installation. Firmware updates for the gateway module are typically managed via the ABB DriveStudio or Drive Composer PC tool.

Q3: How does the LDSTA-01 63940143B perform in electrically noisy industrial environments, and what measures ensure network stability?
The LDSTA-01 63940143B is designed to meet industrial EMC standards and operates reliably in environments with variable frequency drive switching noise, motor cable interference, and high-voltage bus proximity. PROFIBUS-DP uses shielded twisted-pair cable with defined grounding requirements that provide inherent noise immunity. For DeviceNet installations, proper cable routing, termination resistors at both ends of the trunk cable, and separation from high-voltage power cables are the primary measures for ensuring network stability.

Q4: What warranty and pre-shipment testing does the ABB LDSTA-01 63940143B include?
Every ABB LDSTA-01 63940143B unit supplied by ZYPLC includes a warranty terms confirmed during quotation covering manufacturing defects and communication failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm protocol communication, module recognition by the host drive, and physical connector integrity. Units are shipped in anti-static packaging with full documentation. Availability is confirmed via RFQ for same-day or next-business-day dispatch, with global logistics support to minimize lead times for urgent maintenance requirements.
