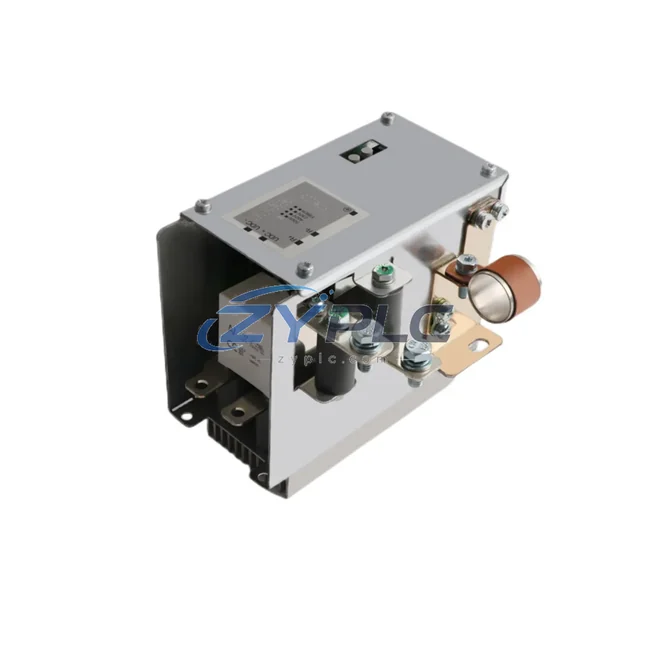

ABB NBRA-656C Brake Chopper for ACS880

ABB NBRA-656C Brake Chopper for ACS880 Drive

In modern industrial drive systems, effective maintenance planning is not a standalone function — it is a critical layer within a coordinated control architecture. The ABB NBRA-656C Brake Chopper Module is engineered to fulfill exactly this role: dissipating regenerative energy during motor deceleration cycles, protecting the DC bus from overvoltage conditions, and maintaining system stability across the full operational envelope of ABB’s ACS880 and ACS580 variable frequency drive platforms.

Unlike generic braking resistor assemblies, the NBRA-656C is designed as a native extension of ABB’s drive architecture. It integrates directly into the ACS880 drive cabinet infrastructure, aligning with the same mechanical mounting standards, DC bus connection topology, and thermal management philosophy that governs the broader ACS880 multi-drive system. This native compatibility eliminates the engineering overhead associated with third-party braking solutions and ensures that the chopper module operates within the validated performance envelope defined by ABB’s drive engineering team.

Within a layered automation system, the NBRA-656C sits at the power conversion layer — downstream of the ACS880 drive unit and upstream of the braking resistor bank. Its activation is governed by the drive’s internal DC bus voltage monitoring logic, which triggers the chopper circuit when bus voltage exceeds the defined threshold during regenerative braking events. This tight integration with the drive’s control firmware means that the NBRA-656C responds in real time to dynamic load changes, crane deceleration cycles, centrifuge stopping sequences, and other high-inertia application demands without requiring external control signals or additional PLC programming overhead.

From a system architecture perspective, the NBRA-656C supports the scalability that defines ABB’s ACS880 multi-drive platform. In applications where multiple ACS880 drive modules share a common DC bus — such as in coordinated multi-axis crane systems, rolling mill drives, or large-scale conveyor networks — the NBRA-656C can be deployed as a shared braking resource, reducing the total number of braking components required while maintaining adequate energy dissipation capacity across the entire drive group. This architecture reduces panel space, simplifies wiring, and lowers the total cost of the braking subsystem.

The module’s compatibility extends across the ACS880 product family, including the ACS880-01 single drive, ACS880-07 cabinet drive, and ACS880-17 regenerative drive variants, as well as the ACS580 general-purpose drive series. In installations where the RDCU-02C drive control unit manages the ACS880’s core control functions, the NBRA-656C operates transparently within the same control hierarchy, with no firmware conflicts or parameter mapping requirements. Similarly, in systems where the AINT-02C inverter control board governs the power stage, the chopper module’s DC bus interface remains fully compatible.

For engineers commissioning ACS880 systems with the Drive Composer Pro or DriveWindow Light configuration tools, the NBRA-656C requires no dedicated parameterization beyond the standard braking resistor resistance and power values entered into the drive’s parameter set. This simplicity accelerates commissioning timelines and reduces the risk of configuration errors during system startup. In multi-drive installations managed through an ABB AC500 PLC or a third-party SCADA platform via PROFIBUS-DP or PROFINET communication, the drive’s braking status can be monitored in real time, providing operators with visibility into energy dissipation events and enabling predictive maintenance scheduling.

The NBRA-656C is also relevant in applications where the BRES-0x braking resistor units are deployed as the energy dissipation element. The chopper module and resistor bank form a matched pair within the ABB braking subsystem, and selecting the correct NBRA-656C rating relative to the resistor’s thermal capacity is essential for reliable long-term operation. In high-cycle applications such as hoist drives, test bench systems, or paper machine section drives, the thermal coordination between the NBRA-656C and the connected BRES resistor determines the sustainable braking duty cycle of the entire system.

Beyond its core braking function, the NBRA-656C contributes to the overall reliability architecture of the drive system. By preventing DC bus overvoltage trips, it reduces unplanned drive shutdowns that would otherwise interrupt production processes. In industries such as mining, metals processing, pulp and paper, and marine propulsion — where ACS880 drives are routinely deployed in demanding environments — the availability improvement delivered by a properly sized and installed NBRA-656C translates directly into measurable uptime gains.

Every NBRA-656C unit supplied by ZYPLC undergoes pre-shipment functional verification, confirming chopper circuit integrity, gate drive operation, and DC bus interface continuity. Units are shipped with a warranty terms confirmed during quotation, supported by ZYPLC’s global logistics network via DHL and FedEx for rapid delivery to project sites worldwide.

Product Specification Table

System Compatibility Notes

The NBRA-656C operates as part of a broader system architecture that spans multiple functional layers. At the drive control layer, the ACS880-01 or ACS880-07 cabinet drive unit governs motor speed, torque, and direction, while the NBRA-656C manages the energy returned to the DC bus during deceleration. The RDCU-02C drive control unit coordinates the control firmware that determines chopper activation thresholds, ensuring that braking events are handled within the drive’s validated operating parameters.

At the power supply layer, the ACS880-17 regenerative drive or a dedicated input rectifier unit maintains DC bus voltage stability during normal operation, with the NBRA-656C providing the overvoltage protection layer during transient braking events. In multi-drive configurations sharing a common DC bus, the NBRA-656C works in parallel with the regenerative front end to balance energy flow across the drive group.

At the I/O and monitoring layer, the AINT-02C inverter control board provides the interface between the drive’s power stage and its control logic, while the BRES-0x braking resistor units serve as the thermal energy sink for the chopper circuit. In systems managed by an ABB AC500 PLC, drive status signals — including braking activity and DC bus voltage levels — are transmitted via PROFIBUS-DP or PROFINET to the PLC’s communication module, enabling real-time monitoring and alarm management at the SCADA or HMI level. Operators using ABB CP600 HMI panels can visualize braking events, resistor thermal status, and drive fault history from a centralized interface, supporting both operational oversight and maintenance planning.

Industrial Application Notes

The NBRA-656C is deployed across a wide range of industrial sectors where high-inertia loads and frequent deceleration cycles create significant regenerative energy demands. In mining and minerals processing, ACS880 drives controlling conveyor belts, crushers, and hoist systems generate substantial regenerative energy during load lowering and emergency stop sequences; the NBRA-656C ensures that this energy is safely dissipated without triggering DC bus overvoltage faults that would shut down the drive and halt production.

In metals and steel processing, rolling mill section drives and coiler/uncoiler systems operate in continuous acceleration-deceleration cycles. The NBRA-656C’s ability to handle high-frequency braking events makes it well suited to these demanding duty cycles, where braking resistor thermal management and chopper reliability are critical to maintaining production throughput. In pulp and paper manufacturing, paper machine section drives and winder systems similarly rely on the NBRA-656C to manage the energy dynamics of web tension control and reel change sequences.

In water and wastewater treatment, pump and blower drives controlled by ACS880 units benefit from the NBRA-656C’s protection of the DC bus during pump shutdown sequences, particularly in variable-speed pumping stations where rapid deceleration is required to prevent water hammer effects. In marine and offshore applications, ACS880 drives powering thrusters, winches, and deck machinery operate in environments where DC bus stability is essential for vessel safety; the NBRA-656C provides the braking maintenance planning layer that supports reliable operation in these critical applications.

Product Compatibility FAQ

Q1: Is the NBRA-656C compatible with both ACS880 and ACS580 drive series?
Yes. The NBRA-656C is compatible with the ACS880 family — including the ACS880-01, ACS880-07, and ACS880-17 variants — as well as the ACS580 general-purpose drive series. Compatibility is determined by the drive’s DC bus voltage rating and the chopper module’s current and power ratings; ZYPLC’s technical team can confirm the correct NBRA-656C variant for your specific drive configuration.

Q2: Does the NBRA-656C require dedicated PLC programming or SCADA integration for activation?
No. The NBRA-656C is activated automatically by the ACS880 drive’s internal DC bus voltage monitoring firmware. No external PLC control signals or SCADA commands are required for normal braking operation. However, braking status and DC bus voltage data can be monitored via the drive’s PROFIBUS-DP or PROFINET communication interface for integration into SCADA and HMI systems.

Q3: What warranty and pre-shipment testing does ZYPLC provide for the NBRA-656C?
Every NBRA-656C unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes pre-shipment functional verification, including chopper circuit integrity testing, gate drive operation confirmation, and DC bus interface continuity checks. Units are shipped via DHL or FedEx with full tracking, and ZYPLC’s technical support team is available to assist with installation, commissioning, and system integration questions.
