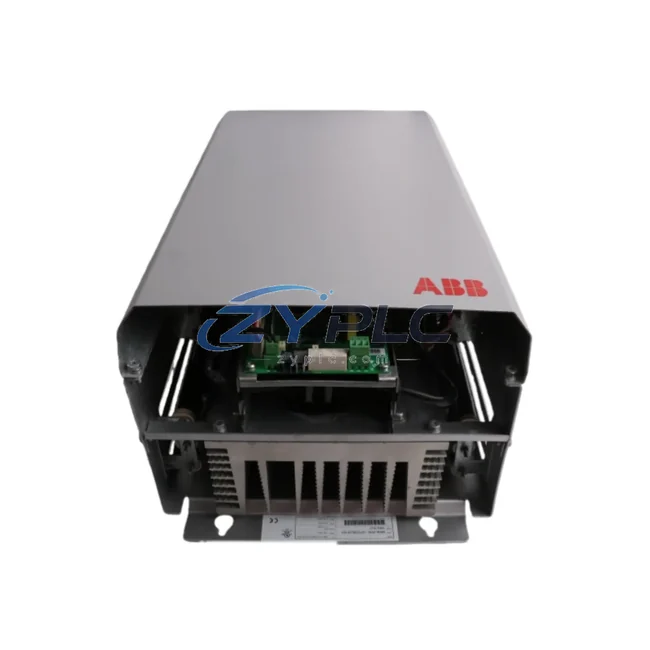

ABB NBRA-657C 59006410 Braking Chopper Module for ACS880 Systems

ABB NBRA-657C 59006410 Industrial Network Interface for ACS880 Systems: Precision Braking Control Across the Smart Factory Data Chain

The ABB NBRA-657C (Part No. 59006410) is a high-performance Braking Chopper Module engineered for seamless integration within ABB’s ACS880 and ACS580 industrial drive platforms. Far beyond a standalone braking component, the NBRA-657C functions as a critical node in the industrial data chain — enabling real-time energy dissipation control, drive status feedback, and system-level communication between field devices, PLC controllers, SCADA platforms, and upper-level monitoring systems. In smart factory environments where uptime, precision, and data transparency are non-negotiable, the NBRA-657C delivers the electrical and communicative backbone that keeps high-inertia production lines running safely and efficiently.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully connected smart factory, the ABB NBRA-657C does not operate in isolation. Its role begins at the field level, where high-inertia motors — driven by the ABB ACS880-01 or ACS880-07 multi-drive cabinet — generate regenerative energy during deceleration cycles. The NBRA-657C intercepts this energy at the DC bus, dissipating it through external braking resistors while simultaneously feeding real-time DC bus voltage data back through the drive’s internal DDCS fiber optic communication link.

This status data flows upward to the ABB RDCO-03 DDCS Communication Module, which bridges the drive’s internal bus to plant-level fieldbus networks. From there, the signal enters the PROFIBUS or PROFINET backbone, where a Siemens S7-1500 PLC or ABB AC500 PLC processes braking status, fault codes, and energy metrics in real time. The PLC logic can trigger automatic protective responses — such as halting upstream conveyor drives or activating safety interlocks — based on NBRA-657C fault signals, ensuring system-wide coordination without manual intervention.

At the HMI layer, operators monitoring a Weintek cMT Series HMI or ABB CP600 Control Panel receive live drive status, braking chopper activation frequency, and DC bus voltage trends. These visualizations are critical for predictive maintenance scheduling and energy efficiency audits. The HMI communicates with the PLC via EtherNet/IP or Modbus TCP, ensuring that braking events are logged with millisecond-level timestamps for post-event analysis.

For remote monitoring and diagnostics, the data chain extends further: an ABB Ability™ Smart Sensor or edge gateway device aggregates drive telemetry — including NBRA-657C operational data — and transmits it to cloud-based SCADA platforms such as Ignition SCADA by Inductive Automation or ABB System 800xA DCS. This enables plant engineers to monitor braking chopper health, DC bus stability, and fault history from any location, supporting remote diagnostics and reducing unplanned downtime.

In multi-drive configurations — common in crane, hoist, and winding machine applications — the NBRA-657C works alongside ABB BRES-01 Braking Resistor Units and NINT-72C Inverter Modules within the ACS880 drive cabinet. The coordinated data flow between these components, managed through the drive’s internal communication architecture, ensures that braking energy is distributed and dissipated safely across the system, with all fault and status data available to the SCADA layer for real-time alarm management and historical trending.

At the power supply level, ABB UNO-PS/1AC/24DC industrial power supplies ensure stable 24VDC control voltage for the drive control boards and communication modules, maintaining signal integrity across the entire data chain even during braking transients. This end-to-end connectivity — from field-level energy dissipation through PLC logic, HMI visualization, and SCADA integration — positions the NBRA-657C as a foundational component in any ABB-centric smart factory architecture.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible systems. Legacy drives, proprietary fieldbus protocols, and siloed control architectures create data islands that prevent plant managers from achieving true production transparency. The ABB NBRA-657C, when deployed within the ACS880 drive ecosystem, directly addresses these challenges.

By leveraging the ACS880’s built-in protocol adapter slots — supporting PROFIBUS-DP (RPBA-01), PROFINET IO (RPNA-01), EtherNet/IP (RENA-01), and Modbus TCP — the NBRA-657C’s operational data becomes accessible to any modern SCADA, DCS, or MES platform without custom middleware or protocol converters. This eliminates the communication barriers that traditionally isolated drive-level data from plant-level analytics systems.

For sites transitioning from legacy PROFIBUS networks to modern Industrial Ethernet architectures, the ACS880 + NBRA-657C combination provides a migration-friendly solution: the drive can simultaneously support legacy fieldbus connections while exposing data to Ethernet-based systems, enabling phased network upgrades without production interruption. Remote monitoring capabilities — including fault alarm push notifications, DC bus voltage trending, and braking chopper activation logs — give maintenance teams the visibility they need to shift from reactive to predictive maintenance strategies.

Production line transparency is further enhanced through integration with MES platforms, where NBRA-657C-derived data contributes to OEE (Overall Equipment Effectiveness) calculations, energy consumption reporting, and quality traceability records. In regulated industries such as food processing, pharmaceuticals, and automotive manufacturing, this data chain supports compliance documentation and audit readiness. All units supplied by ZYPLC undergo pre-shipment functional testing, and each NBRA-657C is backed by a warranty terms confirmed during quotation, ensuring confidence in both product quality and long-term system reliability.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB NBRA-657C support for SCADA integration?
The NBRA-657C itself communicates via the ACS880 drive’s internal DDCS fiber optic bus. For SCADA and PLC integration, the ACS880 drive supports optional fieldbus adapter modules including PROFIBUS-DP (RPBA-01), PROFINET IO (RPNA-01), EtherNet/IP (RENA-01), and Modbus TCP, making the NBRA-657C’s status data accessible to virtually any industrial automation platform.

Q2: How does the NBRA-657C maintain network stability during high-frequency braking cycles?
The NBRA-657C is designed for continuous duty in demanding applications. Its DC bus monitoring and chopper activation logic operate independently of the fieldbus communication layer, ensuring that network communication remains stable even during rapid, high-frequency braking events. Fault signals are transmitted with minimal latency to the PLC and SCADA layers for immediate alarm response.

Q3: Can the NBRA-657C be integrated into an existing ACS580 drive system, and will it expand to future ACS880 installations?
Yes. The NBRA-657C is compatible with both ACS880 and ACS580 drive platforms, providing investment protection for sites that operate mixed drive fleets. Its standardized communication architecture within the ABB drive ecosystem ensures that it can be seamlessly incorporated into future ACS880 multi-drive cabinet expansions without requiring changes to the existing SCADA or PLC configuration.

Q4: What pre-shipment testing and warranty coverage does ZYPLC provide for the NBRA-657C?
Every ABB NBRA-657C 59006410 supplied by ZYPLC undergoes pre-shipment functional verification, including DC bus interface checks and communication port integrity testing. All units are covered by a warranty terms confirmed during quotation from the date of shipment. Availability is confirmed via RFQ for shipment arranged after confirmation via DHL or FedEx with full tracking. For volume orders or urgent requirements, contact our team directly.
