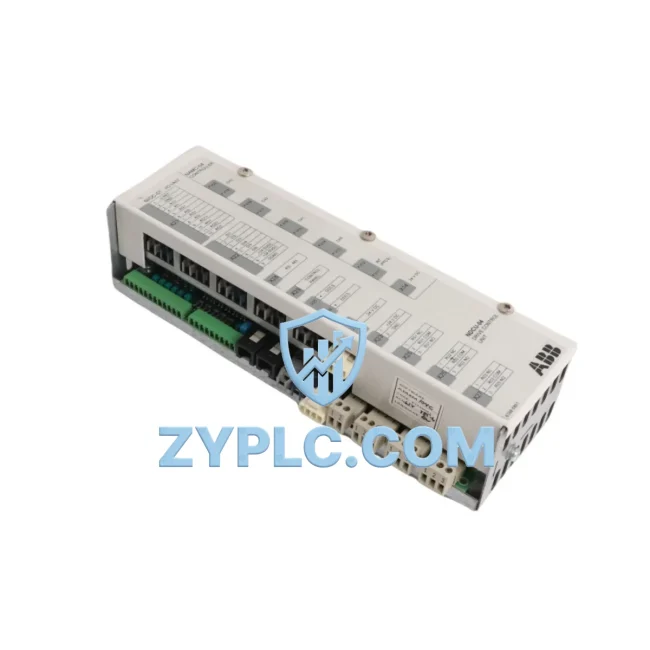

ABB NDCU-52CK Industrial Network Interface for ACS800 Systems

ABB NDCU-52CK Industrial Network Interface for ACS800 Systems: Bridging the Industrial Data Link

The ABB NDCU-52CK is a high-performance drive control unit engineered for the ACS800 series of AC drives, delivering robust industrial network communication capabilities across complex automation architectures. Designed to serve as the intelligent nerve center between field-level devices and upper-level control systems, the NDCU-52CK enables seamless protocol conversion, real-time data exchange, and remote diagnostics — making it an indispensable component in modern smart factory deployments.

In today’s industrial environment, the demand for transparent, low-latency data flow between PLCs, remote I/O modules, HMI panels, SCADA platforms, and variable frequency drives has never been greater. The NDCU-52CK addresses this challenge by acting as a dedicated communication gateway within the ACS800 drive system, supporting multiple fieldbus protocols and ensuring that every data packet — from torque references and speed feedback to fault codes and energy consumption metrics — reaches its destination reliably and on time.

Network Communication Table

Connected Automation Data Flow

The NDCU-52CK sits at the heart of a layered industrial communication architecture. At the field level, sensors and encoders feed real-time process values — speed, current, temperature, and torque — directly into the ACS800 drive. The NDCU-52CK processes these signals and transmits structured data upward through the fieldbus network. When paired with an ABB RPBA-01 PROFIBUS Adapter or an ABB RDNA-01 DeviceNet Adapter mounted in the drive’s fieldbus slot, the control unit bridges the ACS800 to the plant-wide network with minimal configuration overhead.

On the PLC side, a Siemens S7-300 or S7-1500 CPU running a PROFIBUS master configuration can poll the NDCU-52CK for cyclic process data — drive status word, actual speed, output current — while simultaneously writing setpoints and control words in real time. This bidirectional data exchange eliminates the need for hardwired analog signals and dramatically reduces wiring complexity in multi-drive panels.

For distributed I/O architectures, the NDCU-52CK integrates naturally with ABB CI854 PROFIBUS DP/V1 communication interfaces installed in AC800M controller cabinets, enabling the ACS800 drive to participate in a unified process automation network alongside remote I/O stations, motor starters, and soft starters. The DDCS fiber optic port on the NDCU-52CK further supports high-speed drive-to-drive communication in multi-drive configurations — a critical feature for coordinated winder, crane hoist, and conveyor applications where synchronization tolerances are tight.

At the supervisory level, HMI panels such as the ABB CP600 series or third-party SCADA systems running on Ignition by Inductive Automation can access live drive parameters, energy data, and fault histories through OPC-UA gateways connected to the fieldbus network. Edge computing nodes — such as the ABB Edge Controller AC500-eCo — can aggregate data from multiple NDCU-52CK-equipped drives and push structured datasets to cloud analytics platforms, enabling predictive maintenance and energy optimization at the enterprise level.

Variable frequency drives equipped with the NDCU-52CK also interact seamlessly with ABB ACS880 series drives in mixed-fleet environments, where a common DDCS ring or PROFIBUS segment connects drives of different generations under a single PLC master. This interoperability is essential for brownfield modernization projects where legacy ACS800 drives must coexist with newer drive platforms without disrupting production continuity.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different equipment generations and vendors. A typical production line may include PLCs speaking PROFIBUS, drives using proprietary serial protocols, and sensors outputting analog 4–20 mA signals — creating data silos that prevent real-time visibility and coordinated control. The ABB NDCU-52CK directly addresses this problem by serving as a protocol-agnostic communication hub within the ACS800 drive system.

By supporting PROFIBUS-DP, Modbus RTU, DeviceNet, and CANopen through interchangeable fieldbus adapter modules, the NDCU-52CK allows plant engineers to connect ACS800 drives to virtually any PLC or DCS platform without custom programming or signal conversion hardware. This flexibility is particularly valuable during system expansions, where new production cells must be integrated into an existing SCADA infrastructure without halting ongoing operations.

Remote monitoring and diagnostics are equally critical in large industrial facilities where drives may be installed in remote pump stations, offshore platforms, or multi-story manufacturing buildings. The NDCU-52CK’s real-time fault reporting and parameter logging capabilities allow maintenance teams to identify drive anomalies — overcurrent trips, thermal warnings, encoder faults — from a central SCADA workstation, reducing unplanned downtime and eliminating the need for on-site inspection of every drive cabinet.

Production line transparency is further enhanced by the NDCU-52CK’s ability to report energy consumption data alongside process variables. When this data is aggregated across an entire drive fleet and visualized in an HMI or MES dashboard, plant managers gain actionable insights into motor efficiency, load profiles, and maintenance intervals — transforming raw drive data into measurable operational improvements.

All NDCU-52CK units supplied by ZYPLC are sourced from verified channels, undergo pre-shipment functional testing, and are backed by a 12-month warranty. Stock is maintained for fast global dispatch, ensuring minimal lead times for both urgent replacement orders and planned system expansions.

Industrial Connectivity FAQ

Q1: What fieldbus protocols does the ABB NDCU-52CK support, and how is protocol selection configured?
The NDCU-52CK supports PROFIBUS-DP, Modbus RTU, DeviceNet, CANopen, and ABB DDCS through interchangeable fieldbus adapter modules installed in the drive’s option slot. Protocol selection is configured via the ACS800 drive parameters (parameter group 51 for fieldbus adapter settings), and no hardware modification to the NDCU-52CK itself is required when switching between supported protocols.

Q2: What is the typical communication latency between the NDCU-52CK and a PROFIBUS PLC master?
Under standard PROFIBUS-DP cyclic communication, the NDCU-52CK achieves process data exchange cycles of 1–10 ms depending on the baud rate (up to 12 Mbps) and the number of slaves on the network segment. For time-critical applications such as crane synchronization or high-speed winders, it is recommended to configure the PROFIBUS master scan rate to match the drive’s control cycle time.

Q3: Can the NDCU-52CK be integrated into an existing SCADA system without replacing the PLC?
Yes. The NDCU-52CK communicates through standard fieldbus protocols that are natively supported by most PLC platforms, including Siemens SIMATIC, Allen-Bradley ControlLogix, and Schneider Electric Modicon. No PLC replacement is required — only the appropriate fieldbus master module and network configuration are needed to bring the ACS800 drive online within the existing SCADA architecture.

Q4: What does the 12-month warranty from ZYPLC cover for the NDCU-52CK?
The 12-month warranty covers manufacturing defects, component failures under normal operating conditions, and functional non-conformance verified through pre-shipment testing. Warranty claims are processed directly through ZYPLC’s technical support team. Replacement units are dispatched from in-stock inventory to minimize system downtime. Contact: +86 19859288691 | plc.sales@zyplc.com
