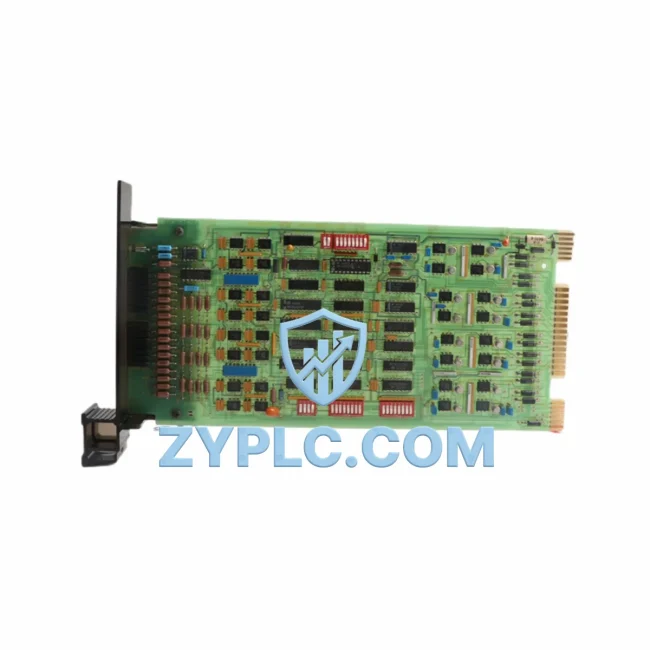

ABB NDSM05 Digital Input Module for AC500 Systems

ABB NDSM05 Digital Input Module: Industrial Data Link for AC500 Smart Factory Systems

The ABB NDSM05 is a high-performance digital input module engineered for the ABB AC500 PLC series, delivering reliable signal acquisition at the field device level and forming a critical node in the industrial data chain. In modern smart factory environments, the NDSM05 bridges the gap between physical field signals — from proximity sensors, limit switches, push buttons, and safety interlocks — and the higher-level control and communication layers that drive real-time decision-making. Whether deployed in discrete manufacturing, process automation, or infrastructure control, the NDSM05 ensures that every digital signal is captured, validated, and transmitted with deterministic precision.

At the heart of any connected automation architecture lies the ability to move data seamlessly from field devices to PLC controllers, remote I/O stations, HMI panels, SCADA systems, and enterprise MES platforms. The NDSM05 fulfills this role by integrating directly into the ABB AC500 backplane, communicating natively with the ABB PM5xx CPU modules — such as the PM554, PM564, and PM583 — over the internal S500 I/O bus. This tight integration eliminates protocol conversion overhead at the I/O level, ensuring that signal latency from field to controller remains within microsecond-range cycle times, a prerequisite for high-speed production lines and safety-critical applications.

Network Communication Table

Connected Automation Data Flow

Understanding the NDSM05’s role requires tracing the full data flow from field to cloud. At the lowest layer, field devices such as inductive proximity sensors, photoelectric sensors, and mechanical limit switches generate binary ON/OFF signals that are wired directly into the NDSM05’s input terminals. These signals are scanned at the module level and passed to the ABB AC500 CPU — for example, the PM564-TP or PM583-ETH — via the S500 backplane bus during each PLC scan cycle.

The CPU then processes the input data according to the application program and routes relevant process values upstream. When the AC500 system is equipped with a CM579-PNIO PROFINET communication module or a CM577-ETH Modbus TCP module, the digital input states captured by the NDSM05 become available to SCADA servers, historian databases, and HMI terminals across the plant network. Operators monitoring a CP600 HMI panel or a PC-based SCADA platform such as ABB Ability™ System 800xA can view real-time input states, configure alarm thresholds, and trigger automated responses — all driven by the raw digital signals first captured by the NDSM05.

In distributed control architectures, the AC500 system may also communicate with remote I/O stations via PROFIBUS DP, using a CM572-DP master module to extend the I/O network across large plant floors. In such configurations, the NDSM05 may serve as a local I/O expansion module at a central cabinet while remote DP slaves handle field signals at distant locations — all data ultimately converging at the AC500 CPU for unified processing.

For drive integration, the AC500 PLC communicates with ABB ACS880 variable frequency drives and ACS580 drives over PROFIBUS or PROFINET, coordinating motor start/stop commands and speed references with the digital input states read by the NDSM05. This enables closed-loop control scenarios where a limit switch signal captured by the NDSM05 directly triggers a drive speed change or emergency stop sequence — a common requirement in conveyor systems, packaging lines, and material handling applications.

At the edge layer, ABB Edge Controllers or third-party edge gateways can subscribe to AC500 data via OPC UA or MQTT, enabling the NDSM05’s input data to flow into IIoT platforms, cloud analytics engines, and predictive maintenance systems. This positions the NDSM05 not merely as a passive input module, but as a foundational data source in the broader smart factory data architecture.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field-level signals remain trapped within a single controller or cabinet, invisible to the broader plant network. The ABB NDSM05, when deployed within a properly configured AC500 system, directly addresses this problem by ensuring that every digital input signal is immediately available to the PLC’s communication stack and, by extension, to any connected SCADA, HMI, or MES system.

In legacy installations, digital inputs were often hardwired to relay panels or standalone PLCs with no network connectivity, making remote monitoring impossible and forcing operators to physically inspect equipment to determine machine states. By migrating to an AC500-based architecture with NDSM05 input modules, engineers gain full protocol flexibility: the same input signals can be simultaneously accessed via Modbus TCP for SCADA polling, PROFINET for real-time control, and OPC UA for MES integration — eliminating the need for parallel wiring or signal splitters.

Production line transparency is another key benefit. With NDSM05 input data flowing into a SCADA historian, maintenance teams can analyze machine state trends, identify recurring fault patterns, and schedule predictive maintenance interventions before unplanned downtime occurs. Alarm management systems can be configured to trigger SMS or email notifications when specific input combinations indicate abnormal conditions — enabling remote diagnostics without requiring on-site personnel.

System expansion is equally straightforward. The AC500 S500 I/O system supports hot-swappable module replacement and modular expansion, meaning additional NDSM05 modules can be added to an existing rack without system shutdown. This scalability ensures that the control architecture can grow alongside the production facility, accommodating new machines, additional sensors, and expanded monitoring requirements without requiring a complete system redesign.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB NDSM05 support for SCADA and HMI integration?
The NDSM05 itself communicates over the ABB S500 internal I/O bus. Protocol access to SCADA and HMI systems is provided by the AC500 CPU’s communication modules, which support PROFIBUS DP, PROFINET IO, Modbus TCP/RTU, EtherNet/IP, and OPC UA depending on the CPU and CM module selected. This allows the NDSM05’s input data to be accessed by virtually any industrial SCADA or HMI platform.

Q2: How does the NDSM05 ensure network stability and deterministic data delivery?
The S500 backplane bus operates with fixed, deterministic cycle times synchronized to the AC500 CPU scan cycle. This ensures that digital input states are updated consistently every scan, with no network-induced jitter or packet loss. For time-critical applications, the AC500 CPU can be configured with interrupt-driven input processing to respond to NDSM05 signals within sub-millisecond timeframes.

Q3: Can the NDSM05 be integrated into an existing PROFIBUS or PROFINET network without replacing the entire PLC system?
Yes. If an existing AC500 system is already equipped with a PROFIBUS or PROFINET communication module, additional NDSM05 modules can be added to the S500 I/O rack and immediately mapped into the CPU’s I/O configuration. No changes to the network infrastructure are required. For systems migrating from older PLCs, the AC500’s broad protocol support also facilitates gateway-based integration with legacy Modbus RTU or DeviceNet networks.

Q4: What warranty and quality assurance does ZYPLC provide for the ABB NDSM05?
All ABB NDSM05 modules supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify input channel integrity, backplane communication, and power consumption within ABB’s specified tolerances. In-stock units are available for immediate dispatch, with full traceability documentation provided upon request.
