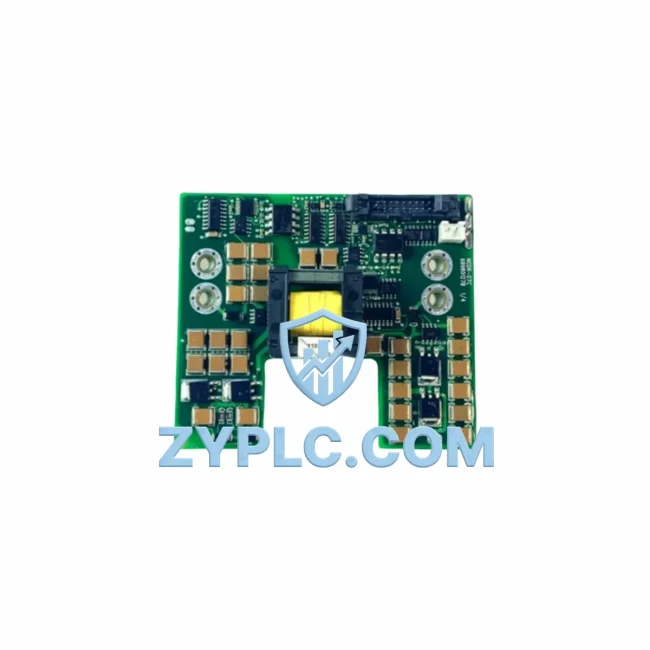

ABB NGDR-07C Industrial Network Interface for NGDR Systems: Bridging the Industrial Data Link in Smart Factory Environments
In modern smart manufacturing, the integrity of the industrial data link determines the efficiency of the entire production ecosystem. The ABB NGDR-07C IGBT Gate Driver Board is engineered to serve as a critical node in this chain — connecting field-level power electronics to upper-level control, monitoring, and diagnostic systems with precision and reliability. Designed for the ABB NGDR series drive platforms, the NGDR-07C enables seamless signal conditioning, gate pulse management, and real-time feedback across complex industrial network architectures.
From the moment a drive command is issued by a PLC controller — such as the ABB AC500 series — the NGDR-07C translates that command into precise IGBT switching signals, ensuring that power conversion stages respond with minimal latency. This tight coupling between the control layer and the power stage is what makes the NGDR-07C indispensable in high-demand applications including variable speed drives, servo systems, and regenerative braking units deployed across automotive, steel, chemical, and energy industries.
Network Communication Table
| Parameter |
Specification |
| SKU |
NGDR-07C |
| Brand / Series |
ABB / NGDR Series |
| Product Type |
IGBT Gate Driver Board |
| Protocol Support |
Internal ABB drive communication bus; compatible with PROFIBUS, PROFINET, Modbus RTU/TCP via drive interface modules |
| Interface Type |
Fiber optic gate signal interface, internal drive backplane connector |
| Transmission Capability |
High-speed gate pulse transmission with real-time fault feedback |
| Network Compatibility |
ABB ACS880, ACS580, ACS800 drive platforms; NGDR series gate driver ecosystem |
| System Application |
Variable frequency drives, regenerative units, industrial motor control, SCADA-integrated power systems |
| Origin |
Sweden (ABB) |
| Warranty |
12-Month Warranty — all units ship after full functional testing |
Connected Automation Data Flow
The NGDR-07C does not operate in isolation — it is a functional element within a layered industrial automation architecture. At the field level, sensors and encoders feed real-time process data into the drive system. The ABB RMIO-02C control board processes this data and issues gate commands to the NGDR-07C, which then drives the IGBT power modules with microsecond-level precision. Fault signals — including overcurrent, overvoltage, and thermal alarms — are captured by the NGDR-07C and relayed back through the RMIO-02C to the drive’s main control logic.
At the network layer, the ABB RINT-5514C or AINT-02C communication adapter modules bridge the drive system to plant-wide PROFIBUS or PROFINET networks, enabling the SCADA system — such as ABB System 800xA or third-party platforms like Siemens WinCC or Ignition SCADA — to receive live drive status, energy consumption data, and fault logs. This bidirectional data flow supports predictive maintenance workflows and reduces unplanned downtime.
In multi-drive configurations, the NGDR-07C-equipped drives communicate with the ABB RDCU-02C drive control unit, which coordinates torque and speed references across parallel drive strings. Remote I/O modules connected via Modbus TCP relay field sensor data — temperature, vibration, pressure — into the same data stream, giving operators a unified view of the production line through the HMI panel, such as the ABB CP600 series or a Weintek cMT HMI terminal.
For edge computing and IIoT integration, the drive data aggregated through the NGDR-07C’s host drive can be forwarded via an industrial edge gateway — such as the ABB Edge Controller or a Moxa MGate protocol converter — to cloud-based MES or ERP platforms, completing the data journey from the IGBT switching event to enterprise-level analytics dashboards.
Solving Data Isolation in Industrial Sites
One of the most persistent challenges in legacy industrial environments is protocol fragmentation. Older drives, PLCs, and field devices often speak different communication languages — Modbus RTU, DeviceNet, CANopen, or proprietary serial protocols — creating data silos that prevent unified monitoring and control. The ABB NGDR-07C, when integrated within the ACS880 or ACS580 drive platform alongside the NINT-46C or AINT-02C fieldbus adapter, acts as the protocol bridge that unifies these disparate data streams.
By standardizing gate driver communication within the ABB NGDR ecosystem and exposing drive-level data through open industrial protocols at the network layer, the NGDR-07C enables production line transparency that was previously unachievable. Maintenance engineers can access real-time IGBT junction temperature estimates, switching frequency data, and fault history from a central SCADA workstation — eliminating the need for on-site manual inspection of individual drive cabinets.
Remote diagnostics capability is further enhanced when the NGDR-07C’s host drive is connected to the ABB Ability™ digital platform or a third-party remote monitoring gateway. Alarm notifications are pushed to mobile devices or control room displays the moment a fault threshold is crossed, enabling rapid response and minimizing mean time to repair (MTTR). System expansion is equally straightforward — additional NGDR-07C boards can be integrated into new drive cabinets without disrupting the existing network topology, supporting phased capacity upgrades aligned with production growth.
Industrial Connectivity FAQ
Q1: Does the ABB NGDR-07C support direct PROFINET or Modbus TCP communication?
The NGDR-07C is a gate driver board and communicates internally within the ABB drive platform via the drive’s backplane bus. External fieldbus connectivity — including PROFINET, PROFIBUS, and Modbus TCP — is provided by the drive’s communication adapter modules such as the AINT-02C or RINT-5514C. The NGDR-07C’s fault and status data is accessible through these adapters to SCADA and HMI systems.
Q2: How does the NGDR-07C contribute to network stability in multi-drive systems?
The NGDR-07C ensures deterministic gate pulse timing, which directly reduces harmonic disturbances and voltage spikes on the power network. Stable switching behavior minimizes electromagnetic interference (EMI) that can disrupt fieldbus communication on PROFIBUS or Ethernet-based networks co-located in the same control cabinet or cable tray.
Q3: Can the NGDR-07C be used in systems with existing SCADA or HMI infrastructure?
Yes. When installed in an ACS880 or ACS580 drive equipped with the appropriate fieldbus adapter, the NGDR-07C’s operational data — including fault codes, thermal status, and switching statistics — is fully accessible to SCADA platforms via OPC-UA, Modbus TCP, or PROFINET. No additional middleware is required for integration with standard industrial HMI and SCADA systems.
Q4: What quality assurance process applies before shipment, and what warranty is provided?
Every ABB NGDR-07C unit supplied by ZYPLC undergoes a full functional test prior to shipment, verifying gate signal integrity, fault feedback circuits, and connector condition. All units are covered by a 12-month warranty from the date of delivery. In-stock units are available for same-day or next-business-day dispatch via DHL Express or FedEx International Priority.
