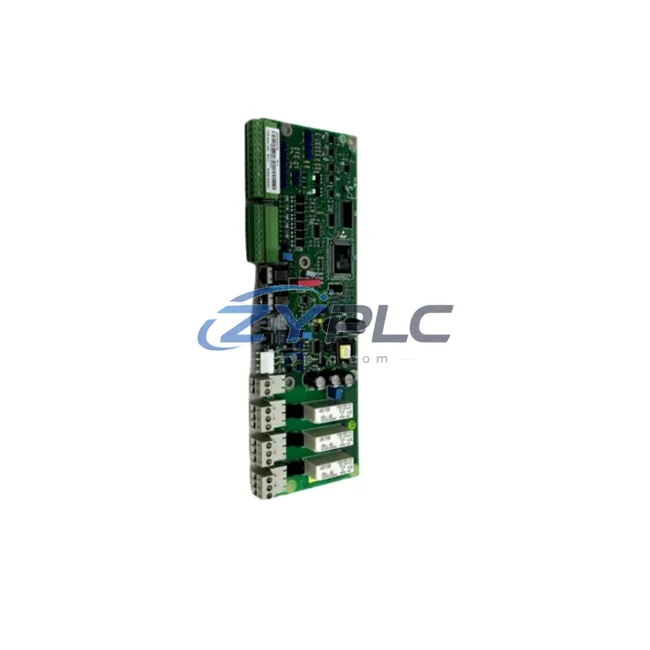

ABB NIOC-02C Network Interface for AC 800M

ABB NIOC-02C Network Interface for AC 800M

The ABB NIOC-02C is a dedicated Network Interface and Optical Controller module engineered for seamless integration within the ABB AC 800M Distributed Control System (DCS) architecture. Rather than functioning as a standalone component, the NIOC-02C occupies a critical position at the intersection of the control layer, I/O layer, and communication network layer — serving as the optical fiber backbone interface that binds the entire control system into a coherent, high-availability automation platform. In large-scale industrial installations where signal integrity, deterministic communication, and long-term maintainability are non-negotiable, the NIOC-02C delivers the system integration that modern process control demands.

Designed to operate within the S800 I/O system and the broader AC 800M controller ecosystem, the NIOC-02C enables the PM861, PM864, and PM866 controller modules to communicate with distributed I/O clusters over optical fiber links, eliminating electromagnetic interference concerns common in electrically noisy environments such as power generation facilities, petrochemical plants, and heavy metallurgical operations. Its role in the system architecture is not merely communicative — it is structural, defining how the control hierarchy is physically and logically organized across cabinet rows, marshalling panels, and remote I/O stations.

Product Specification Table

System Compatibility Notes

The NIOC-02C does not operate in isolation. Its value is fully realized when considered within the complete AC 800M control system architecture, where every layer — from the CPU to the field device — must communicate with precision and reliability. In a typical system configuration, the PM864 or PM866 processor module serves as the central controller, executing control logic and managing I/O data exchange. The NIOC-02C acts as the optical bridge between this CPU and the S800 I/O clusters distributed across the control cabinet or remote marshalling panels.

Within the I/O layer, modules such as the AI810 analog input module, AO810V2 analog output module, DI810 digital input module, and DO810 digital output module are mounted on S800 I/O cluster bases and communicate upstream through the NIOC-02C’s optical ModuleBus link. The TB820V2 ModuleBus Optical Port serves as the termination and branching point for the optical fiber network, working in close coordination with the NIOC-02C to define the physical topology of the I/O network. For applications requiring high availability, a second NIOC-02C can be deployed in a redundant configuration, ensuring that a single module failure does not interrupt process control — a critical requirement in continuous process industries such as oil refining, chemical manufacturing, and power generation.

At the power layer, the SD821 or SD822 power supply modules provide stable 24VDC to the S800 I/O cluster, ensuring that the NIOC-02C and all connected I/O modules receive clean, regulated power even during grid fluctuations. At the human-machine interface layer, operator workstations running ABB 800xA System software receive real-time process data routed through the AC 800M controller, with the NIOC-02C ensuring that I/O data arrives at the controller with minimal latency and without signal degradation. This end-to-end data path — from field sensor through I/O module, through NIOC-02C optical link, through PM864 controller, to 800xA operator station — represents the complete system integration that defines a well-engineered DCS architecture.

Industrial Application Notes

The ABB NIOC-02C finds application across a broad spectrum of industrial sectors where the AC 800M platform is the control system of choice. In power generation facilities — including thermal, hydroelectric, and combined-cycle plants — the NIOC-02C enables distributed I/O clusters to be positioned close to field devices such as turbine actuators, generator protection relays, and boiler instrumentation, while maintaining a clean optical communication path back to the central control room. This architecture reduces cable runs, minimizes signal noise, and simplifies commissioning.

In petrochemical and refinery applications, the NIOC-02C supports the deployment of S800 I/O in hazardous area marshalling panels, where optical isolation is not merely a performance advantage but a safety requirement. The module’s ability to support redundant ModuleBus configurations aligns with the SIL-rated control architectures common in process safety systems. In water treatment and municipal utility plants, the NIOC-02C enables cost-effective distributed control by allowing I/O clusters to be installed at pump stations and treatment stages without requiring dedicated controller hardware at each location. In mining and metallurgical operations, where vibration, dust, and temperature extremes challenge conventional copper-based communication systems, the optical fiber interface of the NIOC-02C provides a robust and interference-free data path that maintains system integrity under demanding conditions. Packaging lines and discrete manufacturing facilities also benefit from the NIOC-02C’s ability to integrate high-density I/O clusters into a unified AC 800M control architecture, supporting rapid changeover, recipe management, and production data acquisition.

Product Compatibility FAQ

Q1: Can the NIOC-02C be used in a redundant ModuleBus configuration, and what additional components are required?
Yes. The NIOC-02C supports redundant optical ModuleBus configurations when paired with a second NIOC-02C unit and a compatible TB820V2 ModuleBus Optical Port. In this configuration, both NIOC units are connected to the same S800 I/O cluster, and the AC 800M controller automatically switches to the backup optical path in the event of a primary link failure. This redundancy architecture is recommended for all critical process control applications and is fully supported within the warranty terms confirmed during quotation coverage period.

Q2: Is the NIOC-02C compatible with all AC 800M controller variants, and are there firmware version dependencies?
The NIOC-02C is designed for use with the AC 800M controller family, including the PM861, PM864, and PM866 processor modules. Compatibility is maintained across the standard AC 800M firmware releases supported by ABB 800xA System versions 5.x and 6.x. For installations involving legacy controller revisions or mixed firmware environments, it is recommended to verify the specific ModuleBus protocol version supported by the installed PM module before deployment. Our technical team can assist with compatibility verification as part of the pre-shipment support included with every order.

Q3: What does the warranty terms confirmed during quotation cover, and how is a warranty claim processed for an NIOC-02C installed in a live production system?
The warranty terms confirmed during quotation covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions as specified in the ABB NIOC-02C product documentation. In the event of a warranty claim, a replacement unit is dispatched to minimize system downtime, and the defective module is returned for evaluation. For live production systems, we recommend maintaining a spare NIOC-02C in the control cabinet as part of a standard critical spares inventory strategy — a practice that aligns with the long-term maintenance philosophy supported by our warranty terms confirmed during quotation and ongoing stock availability commitment.
