ABB NKLS01-10 Communications Cable INSUM

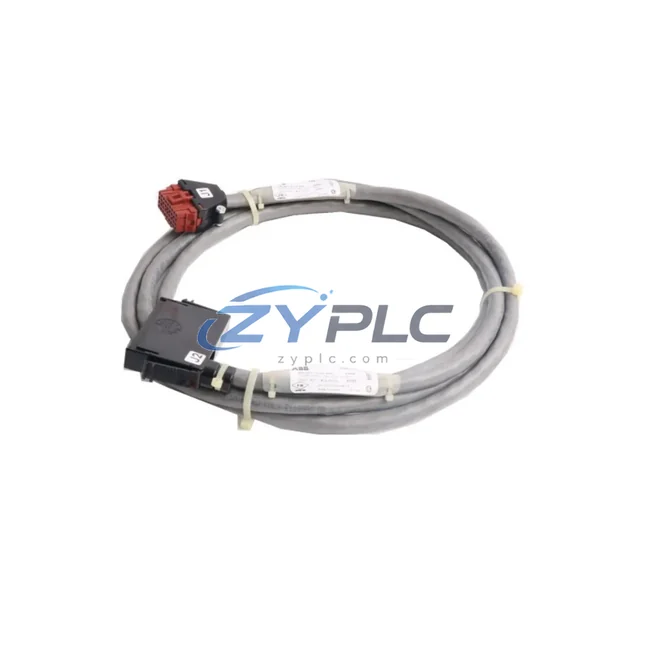

ABB NKLS01-10 Communications Cable for INSUM Automation

The ABB NKLS01-10 is a dedicated communications cable engineered for the ABB INSUM (Intelligent Motor Control Center) system — a platform purpose-built to reduce unplanned downtime, improve motor utilization rates, and deliver real-time power data across industrial production lines. In environments where uptime and replacement lead time matter, the NKLS01-10 serves as the critical data backbone that connects intelligent motor starters, power monitoring modules, and supervisory control systems into a unified, industrial automation system.

Unlike generic cabling solutions, the NKLS01-10 is factory-specified for INSUM network topology, ensuring signal integrity across multi-drop RS-485 communication segments. This precision matters: degraded communication in a motor control network leads to delayed fault responses, missed energy anomalies, and unplanned downtime — all of which inflate operational costs. By maintaining clean, low-latency data exchange between INSUM nodes, the NKLS01-10 directly supports the maintenance planning goals of modern manufacturing facilities.

Product Specification Table

System Compatibility and Application

The NKLS01-10 is the communication link that makes the ABB INSUM system function as a cohesive maintenance planning platform. Within a typical INSUM installation, the cable connects the ABB INSUM Master Module to a chain of ABB INSUM Slave Modules mounted inside MNS-series motor control center (MCC) panels. Each slave module interfaces directly with motor starters — such as the ABB PSR soft starter series or ABB A-line contactors — to capture real-time current draw, voltage levels, power factor, and running hours.

This data is transmitted via the NKLS01-10 cable to the INSUM master, which aggregates energy metrics and forwards them to higher-level systems. Integration with the ABB Ability™ Energy Manager or a Modbus TCP gateway allows plant engineers to visualize operating load trends, identify motors operating outside their efficiency curve, and schedule preventive maintenance before failures occur. In facilities running ABB ACS580 or ACS880 variable frequency drives (VFDs), the INSUM network data can be cross-referenced with drive output parameters to fine-tune motor speed profiles and eliminate unplanned downtime from over-driven loads.

For plants using ABB AC500 PLCs as the central automation controller, the INSUM network — connected via the NKLS01-10 — can feed motor status and energy data directly into PLC logic for demand-response automation. This enables the PLC to automatically shed non-critical motor loads during peak tariff periods, reducing energy costs without manual intervention. Complementary ABB CM-series current monitoring relays can be deployed alongside INSUM nodes to provide redundant overcurrent protection and further refine energy data accuracy.

In larger facilities, the NKLS01-10 supports daisy-chain topologies across multiple MCC sections, allowing a single INSUM master to monitor dozens of motor circuits simultaneously. This scalability makes it suitable for industries including water treatment, cement production, mining, food processing, and automotive manufacturing — anywhere that motor-driven loads represent a significant share of total operating load.

Maintenance and Replacement Notes

On a typical production line, unmonitored motors are among the largest sources of hidden unplanned downtime. Motors running at full speed under partial load, motors left idling between production cycles, and motors with deteriorating insulation all consume excess power that goes undetected without a proper condition monitoring infrastructure. The ABB NKLS01-10, as the communication backbone of the INSUM system, eliminates this blind spot.

By enabling continuous, cycle-by-cycle energy data collection from every motor starter in the MCC, the NKLS01-10 allows maintenance teams to build accurate load profiles for each drive point on the line. When a motor’s current draw begins trending upward — a common early indicator of bearing wear or winding degradation — the INSUM system flags the anomaly before it escalates into an unplanned shutdown. This predictive maintenance capability directly reduces mean time between failures (MTBF) and lowers the cost per production hour.

From a production rhythm (takt time) perspective, the INSUM network data can be used to correlate motor performance with line throughput. If a conveyor motor is consistently drawing peak current during a specific production phase, engineers can use this insight to rebalance load distribution across the line — smoothing energy demand peaks and reducing stress on both the motors and the upstream power infrastructure. The result is a more stable production cadence, lower peak demand charges, and extended equipment service life.

For facilities targeting ISO 50001 maintenance planning certification or pursuing carbon reduction commitments, the granular motor-level energy data enabled by the NKLS01-10 and the INSUM system provides the audit-ready documentation required to demonstrate measurable efficiency improvements over time.

All NKLS01-10 units supplied by ZYPLC are sourced from authorized ABB distribution channels, undergo pre-shipment continuity and insulation testing, and are covered by a warranty terms confirmed during quotation. Stock is maintained for fast dispatch, with most orders shipping within 1–3 business days.

Product Sourcing FAQ

Q1: How does the ABB NKLS01-10 contribute to operational stability on the production floor?
The NKLS01-10 enables the ABB INSUM system to collect real-time power consumption data from every motor starter in the MCC. This data allows engineers to identify inefficient motors, optimize drive parameters on ABB ACS-series VFDs, and implement demand-side load management — collectively reducing motor load by 10–30% in typical industrial applications.

Q2: Is the NKLS01-10 compatible with non-ABB control systems?
The NKLS01-10 is specifically designed for ABB INSUM network topology. However, the INSUM master module supports Modbus RTU and Profibus DP communication, allowing energy data to be forwarded to third-party SCADA systems, DCS platforms, or PLCs from other manufacturers. For native ABB integration, pairing with ABB AC500 PLCs or ABB Ability™ platforms is recommended.

Q3: Can the NKLS01-10 replace a standard RS-485 cable in an INSUM installation?
No. The NKLS01-10 is factory-specified for INSUM network wiring and uses a proprietary connector format matched to INSUM module ports. Substituting generic RS-485 cable may result in communication errors, data loss, or voided system warranty. Always use ABB-specified cables for INSUM network segments.

Q4: What warranty and testing does ZYPLC provide with the NKLS01-10?
Every NKLS01-10 supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects and communication failures under normal operating conditions. Prior to shipment, each unit undergoes continuity testing and visual inspection. Replacement or refund is provided for any unit confirmed defective within the warranty period. Contact our team at plc.sales@zyplc.com for warranty claims or technical support.
