ABB NKLS01-15 Loop Interface Cable

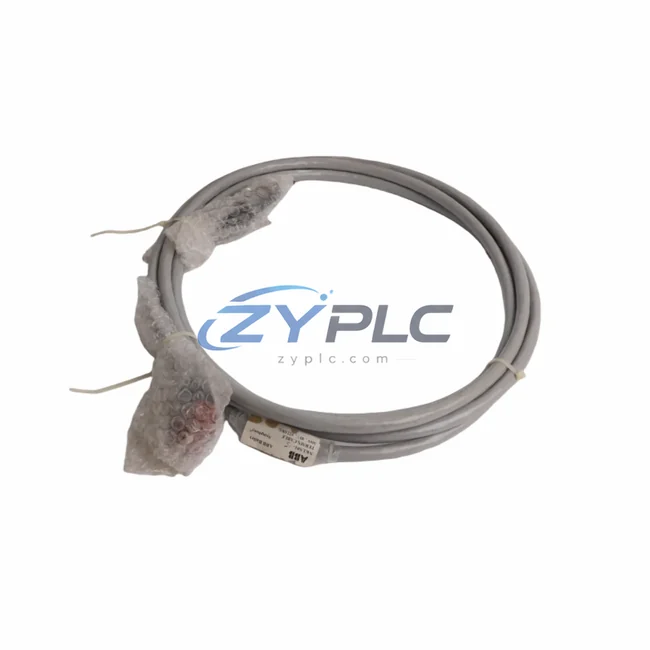

ABB NKLS01-15 Loop Interface Cable: Precision Loop Control for Advant OCS Automation

The ABB NKLS01-15 is a dedicated loop interface cable engineered for the ABB Advant OCS distributed control system platform. In modern industrial facilities where energy efficiency is no longer optional, the integrity of every signal path between controllers, I/O modules, and field devices directly determines how effectively a plant can monitor, regulate, and reduce operating load. The NKLS01-15 provides the reliable, low-noise communication backbone that enables your Advant OCS architecture to operate at peak efficiency — minimizing wasted cycles, reducing unnecessary actuator movement, and keeping your condition monitoring data accurate and actionable.

Product Specification Table

System Compatibility and Application

The NKLS01-15 does not operate in isolation — it is a critical link in a broader industrial automation system. In a typical Advant OCS installation, the loop interface cable connects the ABB AC 450 process controller or AC 410 controller to field-level I/O clusters, enabling real-time feedback from sensors, transmitters, and actuators. When this signal path is compromised by cable degradation or incompatible substitutes, the entire control loop suffers: PID tuning becomes unstable, drives hunt for setpoints, and operating load spikes.

Paired with ABB NDSC-01 communication modules and NKTU01 termination units, the NKLS01-15 ensures that analog loop signals from flow transmitters, pressure sensors, and temperature elements reach the controller with minimal attenuation. This directly supports the accuracy of energy calculations performed by the ABB Advant Station 500 Series operator workstation, where plant engineers monitor real-time power consumption trends and adjust setpoints to reduce peak demand charges.

On the drive side, the loop interface cable plays a key role in coordinating variable speed drive (VSD) commands. When the Advant OCS issues a speed reference to an ABB ACS800 industrial drive or an ACS550 HVAC drive, the quality of the analog 4–20 mA signal transmitted through the NKLS01-15 determines how precisely the drive responds. A clean, noise-free signal means the drive reaches its target speed without overshoot, eliminating the unplanned downtimed in repeated acceleration-deceleration cycles on pump and fan loads.

For facilities that have integrated ABB S800 I/O modules into their Advant OCS topology, the NKLS01-15 supports the daisy-chain loop wiring architecture that keeps field wiring costs low while maintaining the signal integrity needed for high-resolution process measurements. Combined with ABB PROFIBUS DP communication adapters at the drive level, this creates a unified condition monitoring and control network where every motor, valve, and actuator can be tracked for operating load in real time.

Power quality monitoring is further enhanced when the NKLS01-15 loop infrastructure is used alongside ABB M2M energy meters or third-party power analyzers integrated via the Advant OCS analog input channels. Accurate loop signals mean accurate energy data — and accurate energy data is the foundation of any meaningful efficiency improvement program.

Maintenance and Replacement Notes

In continuous process industries — pulp and paper mills, chemical reactors, water treatment facilities, and power generation plants — the Advant OCS platform manages hundreds of control loops simultaneously. Each loop governs a specific process variable: flow rate, pressure, temperature, or level. The cumulative energy impact of poorly maintained loop infrastructure is significant: a single degraded cable causing a 5% control error on a 75 kW pump motor can translate to thousands of operating-hours of wasted energy annually.

Replacing a worn or non-OEM loop interface cable with the genuine ABB NKLS01-15 restores the signal integrity that the Advant OCS was designed to operate with. This has several measurable effects on production line energy performance. First, PID controllers stabilize faster after setpoint changes, reducing the duration of transient high-energy operating states. Second, drive systems connected via the loop receive cleaner speed references, allowing them to operate closer to their optimal efficiency point on the motor performance curve. Third, reduced signal noise means fewer false alarms and spurious control actions, which lowers the frequency of unnecessary actuator cycling — a common but often overlooked source of unplanned downtime in automated plants.

From a maintenance perspective, using the correct OEM cable also reduces the risk of insulation breakdown and ground loops, which can cause intermittent faults that are difficult to diagnose and result in unplanned downtime. Unplanned stops are among the most energy-intensive events in industrial production: restarting large motors and heating systems from cold consumes significantly more energy than maintaining steady-state operation. By ensuring loop communication reliability with the NKLS01-15, maintenance teams can shift from reactive to predictive maintenance strategies, scheduling interventions during planned shutdowns rather than responding to emergency failures.

Production line throughput also benefits directly. When control loops operate with accurate feedback, process variables are held tighter to their setpoints, reducing product quality variation and the energy cost of rework or off-spec production. In batch processes, tighter loop control shortens cycle times, improving overall equipment effectiveness (OEE) and reducing the energy consumed per unit of output.

All units of the ABB NKLS01-15 available through ZYPLC are sourced from verified supply channels, subjected to full functional testing before shipment, and covered by a warranty terms confirmed during quotation. Stock is maintained to support urgent replacement requirements, with fast dispatch to minimize production downtime.

Product Sourcing FAQ

Q1: How does replacing the loop interface cable improve energy efficiency in an Advant OCS system?
A degraded or incompatible loop interface cable introduces signal noise and attenuation into the control loop, causing PID controllers to overcorrect and drives to operate inefficiently. Replacing it with the genuine ABB NKLS01-15 restores signal fidelity, stabilizes control loops, and allows variable speed drives to operate at their optimal efficiency points — directly reducing operating load on motor-driven loads.

Q2: Is the NKLS01-15 compatible with all Advant OCS controller variants?
The NKLS01-15 is designed for the ABB Advant OCS platform and is compatible with AC 450, AC 410, and AC 160 series controllers, as well as associated I/O and communication modules within the Advant architecture. For specific compatibility with non-standard configurations, contact our technical team before ordering.

Q3: What is the recommended replacement interval, and how is the cable tested before shipment?
Replacement intervals depend on the operating environment — high-vibration or high-temperature installations may require more frequent inspection. As a best practice, loop interface cables should be inspected during annual planned maintenance shutdowns. Every NKLS01-15 unit shipped by ZYPLC undergoes a full outgoing functional test to verify electrical continuity, insulation integrity, and connector condition before dispatch.

Q4: What warranty and after-sales support is provided?
All ABB NKLS01-15 units are covered by a warranty terms confirmed during quotation from the date of shipment. If a unit fails under normal operating conditions within the warranty period, ZYPLC will provide a replacement or full refund. Our technical support team is available to assist with installation guidance, compatibility verification, and troubleshooting throughout the warranty period.
