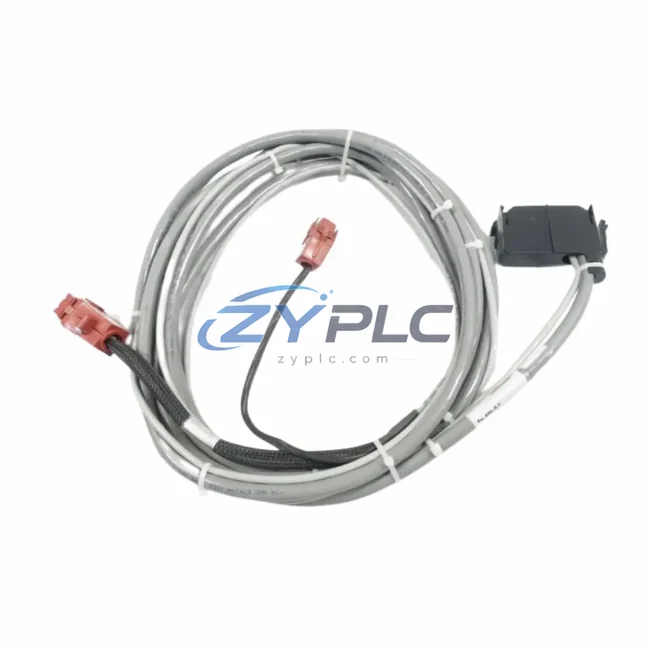

The ABB NKST11-15 is a precision-engineered termination cable designed to serve as a critical signal interface component within the ABB Advant OCS and MOD 300 Distributed Control System (DCS) architecture. Rather than functioning as a standalone accessory, the NKST11-15 occupies a defined role in the layered automation hierarchy — bridging field-level I/O signals to the controller backplane with the electrical integrity and mechanical reliability demanded by continuous industrial processes. Understanding its position within the full control system stack is essential for engineers specifying spare parts, planning system expansions, or executing maintenance shutdowns in power generation, petrochemical, water treatment, metallurgical, and advanced manufacturing environments.

Product Specification Table

System Compatibility Notes

The NKST11-15 termination cable does not operate in isolation. Its value is realized only when correctly integrated within a coordinated ABB Advant OCS control system. In a typical Advant OCS architecture, the system is organized across multiple functional layers: the process controller layer (housing units such as the ABB AC450 or AC410 controller modules), the I/O subsystem layer (populated with ABB DSAI 130 analog input modules, DSDI 110 digital input modules, and DSDO 115 digital output modules), and the field termination layer where the NKST11-15 cable physically connects marshalled field signals to the I/O module front connectors.

Above the controller layer, the ABB DSMB 127 communication bus module and DSBC 172 bus extender manage inter-node communication across the Advant Fieldbus 100 (AF100) network, ensuring that the signal data collected through termination cables like the NKST11-15 is reliably transmitted to the supervisory control layer. The ABB DSPU 130 processor unit coordinates real-time scan cycles, while the ABB DSDP 150 pulse counter module handles high-speed discrete inputs in applications such as turbine speed monitoring or flow metering.

At the power supply layer, the ABB DSSB 146 power supply module provides regulated 24 VDC to the I/O racks, ensuring that the signal integrity maintained by the NKST11-15 cable is not compromised by voltage fluctuations. For redundant architectures, dual power supply configurations are standard, and the NKST11-15 must be routed and dressed to avoid interference with redundant power cabling. At the human-machine interface layer, ABB Operate IT or legacy ABB Master View 850 operator stations visualize the process data that originates at the field termination points connected via the NKST11-15.

This system integration approach — understanding the NKST11-15 not as a cable but as a system node — is what distinguishes a well-engineered DCS from a collection of components. Engineers specifying the NKST11-15 should simultaneously verify the availability of companion components including the ABB NKTU01-24 termination unit and NKTU02-24 extended termination unit, which share the same marshalling architecture and are frequently replaced as a matched set during major maintenance intervals.

Industrial Application Notes

The NKST11-15 finds application across a broad range of process industries where the ABB Advant OCS and MOD 300 DCS platforms remain in active service. In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the cable supports analog signal termination for temperature, pressure, and flow transmitters connected to boiler management and turbine control loops. The warranty terms confirmed during quotation coverage provides plant maintenance teams with the assurance needed to stock the NKST11-15 as a critical spare without concern for shelf-life degradation.

In petrochemical and refinery environments, the NKST11-15 is deployed in hazardous-area marshalling cabinets where signal segregation and cable dressing standards are strictly enforced. Its compatibility with the Advant S100 I/O series makes it a direct replacement component during turnaround maintenance, reducing engineering hours required for re-termination. For water and wastewater treatment plants operating legacy Advant OCS systems, the NKST11-15 supports the long-term maintainability of SCADA-integrated DCS architectures, where system continuity over 20–30 year plant lifecycles depends on the availability of original-specification termination hardware.

In metallurgical and mining operations, where vibration, dust, and thermal cycling place elevated mechanical stress on cable terminations, the NKST11-15’s OEM construction ensures dimensional and electrical consistency across replacement cycles. Packaging and discrete manufacturing lines using Advant OCS for coordinated motion and process control benefit from the cable’s role in maintaining clean signal paths between field sensors and the controller I/O layer, directly supporting cycle time consistency and alarm management accuracy.

Product Compatibility FAQ

Q1: Is the NKST11-15 compatible with both the Advant OCS S100 and S400 I/O module series?
The NKST11-15 is primarily specified for use with the ABB Advant OCS S100 I/O series. Compatibility with S400 series modules should be verified against the specific module front-connector pinout, as the S400 series may require the NKST11-24 or NKTU02-24 termination variants. Always cross-reference the I/O module hardware manual before installation to confirm mechanical and electrical compatibility within your specific system architecture.

Q2: Can the NKST11-15 be used in a redundant I/O architecture, and what installation precautions apply?
Yes, the NKST11-15 can be deployed in redundant I/O configurations within the Advant OCS architecture, provided that cable routing follows the system’s redundancy segregation requirements — redundant signal paths must be physically separated to prevent common-cause failure from cable damage or connector contamination. During installation, ensure that the cable is not routed adjacent to high-voltage power cables, and that connector seating is verified with a pull-test before commissioning. The warranty terms confirmed during quotation covers manufacturing defects but does not extend to damage caused by improper installation or routing.

Q3: What is the recommended approach for long-term spare parts management of the NKST11-15 under the warranty terms confirmed during quotation?
For plants operating ABB Advant OCS or MOD 300 DCS systems, the recommended strategy is to maintain a minimum stock of two NKST11-15 cables per I/O rack as critical spares, stored in anti-static packaging in a climate-controlled environment. The warranty terms confirmed during quotation begins from the date of shipment, so procurement should be timed to align with planned maintenance windows. ZYPLC maintains availability subject to RFQ confirmation of the NKST11-15 and companion termination components, with rapid dispatch capability to support both scheduled turnarounds and emergency maintenance requirements.
