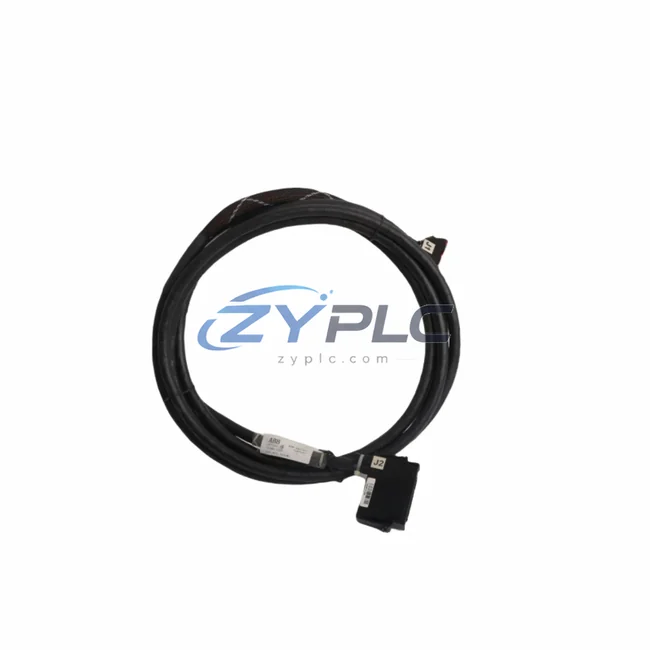

ABB NKTU01-15 Termination Unit Cable for Symphony Plus Systems

ABB NKTU01-15 Industrial Network Interface for Symphony Plus Systems: Precision Data Link for Smart Factory Connectivity

The ABB NKTU01-15 is a high-integrity Termination Unit Cable engineered for the ABB Symphony Plus Distributed Control System (DCS) platform. Designed to serve as a critical physical and electrical interface between field instrumentation and the DCS controller backbone, the NKTU01-15 ensures reliable signal transmission, protocol-consistent communication, and structured wiring integrity across demanding industrial environments. Whether deployed in power generation, oil & gas processing, chemical manufacturing, or large-scale utilities, this termination unit cable forms the foundational data link that enables real-time process visibility, remote diagnostics, and seamless SCADA/HMI integration.

In modern smart factory architectures, data isolation between field devices and upper-level control systems remains one of the most persistent operational challenges. The NKTU01-15 addresses this directly by providing a structured, noise-resistant termination pathway that connects field transmitters, pressure sensors, temperature loops, and actuator feedback signals into the Symphony Plus I/O subsystem with full signal fidelity. Its 15-channel configuration supports dense wiring layouts, reducing panel footprint while maintaining clear signal segregation between analog and discrete channels.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated Symphony Plus control architecture, the NKTU01-15 sits at the convergence point between raw field signals and structured DCS data. The data flow begins at the sensor layer — pressure transmitters, thermocouple inputs, flow meters, and level sensors — where 4–20 mA analog signals and HART digital overlays are generated continuously. These signals travel through shielded field cables into the NKTU01-15 termination unit, where each of the 15 channels provides a clean, labeled, and protected connection point before routing into the corresponding ABB Symphony Plus S800 I/O module.

From the S800 I/O layer, process values are transmitted over the ABB Modulebus communication backbone to the ABB AC800M controller, which executes real-time control logic, PID loops, and sequence programs. The AC800M then communicates upstream via Industrial Ethernet (IEC 61850 or Modbus TCP) to the plant’s SCADA server — typically running ABB System 800xA — where operators monitor live process data, configure alarm thresholds, and generate production reports. HMI panels such as the ABB CP600 series display real-time values drawn directly from this data chain, giving field operators immediate visibility into process conditions without latency.

For remote diagnostics and predictive maintenance, HART-enabled field devices connected through the NKTU01-15 can be polled by an ABB Asset Monitor or third-party HART multiplexer, extracting device health parameters, calibration status, and loop diagnostics without interrupting the primary 4–20 mA control signal. This dual-layer communication — analog control signal plus HART digital diagnostic channel — is preserved intact through the NKTU01-15’s termination architecture, ensuring that both the ABB Freelance DCS and Symphony Plus environments can leverage full HART transparency.

In distributed plant topologies where remote I/O cabinets are located hundreds of meters from the central control room, the NKTU01-15 is often paired with ABB S900 Remote I/O modules connected via PROFIBUS DP or Modbus RTU gateways, extending the Symphony Plus data network to hazardous area field junction boxes. Edge gateways such as the ABB Ability Edge device can further aggregate this data for cloud-based analytics, completing the digital thread from sensor to enterprise system.

Solving Data Isolation in Industrial Sites

One of the most common challenges in legacy and hybrid industrial plants is the fragmentation of field data — sensors and actuators that speak different protocols, wiring systems that lack clear documentation, and I/O modules that cannot be interrogated remotely. The ABB NKTU01-15 directly resolves the physical layer of this problem by providing a standardized, clearly labeled 15-channel termination interface that eliminates ambiguous field wiring and reduces commissioning errors.

When field wiring is terminated through the NKTU01-15 rather than directly onto I/O module terminals, maintenance teams gain a dedicated test point for each channel. Loop checks, signal injection tests, and fault isolation can be performed at the termination unit without disturbing the I/O module or the running control program — a critical advantage during live plant operations where process interruptions carry significant cost.

For plants undergoing digital transformation toward Industry 4.0 standards, the NKTU01-15 supports production line transparency by ensuring that every field signal entering the Symphony Plus DCS is properly terminated, shielded, and traceable. This structured approach to signal management is the prerequisite for reliable SCADA data quality, accurate historian records, and trustworthy alarm management — all of which depend on clean, consistent signal inputs at the I/O layer.

System expansion is equally simplified: as new field instruments are added to the process, additional NKTU01-15 units can be installed in parallel with existing termination assemblies, scaling the I/O infrastructure without redesigning the cabinet layout or replacing existing wiring. Each unit ships pre-tested and verified, with full factory acceptance documentation available upon request, supporting your site’s commissioning and qualification requirements.

Every ABB NKTU01-15 supplied by ZYPLC is covered by a 12-month quality warranty, backed by pre-shipment functional testing and full traceability documentation. Our inventory is maintained availability confirmed by RFQ for shipment arranged after confirmation, with global logistics support to minimize your project lead times.

Industrial Connectivity FAQ

Q1: Does the ABB NKTU01-15 support HART protocol communication?
Yes. The NKTU01-15 is designed to pass HART digital signals superimposed on the 4–20 mA analog loop without attenuation or interference. This allows HART-capable field devices to communicate diagnostic and configuration data to HART masters or multiplexers connected within the Symphony Plus architecture, enabling full device health monitoring alongside normal process control.

Q2: Is the NKTU01-15 compatible with ABB Symphony Plus S800 I/O modules?
Yes. The NKTU01-15 is specifically engineered for the ABB Symphony Plus DCS platform and is designed to interface directly with S800 series I/O modules. It provides the correct connector pinout, cable length, and channel mapping required for plug-and-play integration within Symphony Plus I/O cabinets, minimizing installation time and eliminating custom wiring adapters.

Q3: How does the NKTU01-15 contribute to network stability and reduced communication latency?
By providing a clean, shielded, and properly terminated signal path from field devices to the I/O module, the NKTU01-15 eliminates common sources of signal noise, ground loops, and impedance mismatches that can introduce latency or data errors into the DCS scan cycle. Stable, noise-free analog inputs allow the AC800M controller to execute its control loops with consistent cycle times, supporting real-time process control with deterministic response.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the NKTU01-15?
All ABB NKTU01-15 units supplied by ZYPLC are covered by a 12-month quality warranty from the date of shipment. Each unit undergoes pre-shipment functional verification to confirm connector integrity, channel continuity, and cable assembly quality before dispatch. Shipment documentation including test records and product certification is available upon request to support your incoming inspection and project qualification processes.
