ABB NLWC-05 Fibre Optic Cable for NDIO Systems

ABB NLWC-05 Industrial Network Interface for NDIO Systems: Bridging the Industrial Data Link

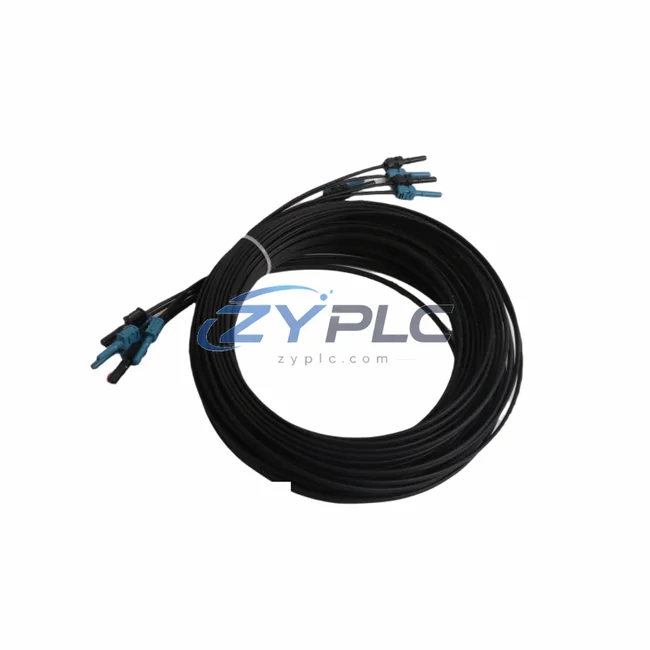

The ABB NLWC-05 is a twin fibre optic cable assembly engineered for the ABB NDIO (Network Distribution I/O) Series — a high-performance industrial communication backbone designed to connect field devices, remote I/O modules, PLC controllers, and supervisory systems across demanding smart factory environments. As a critical physical-layer component in ABB’s distributed I/O architecture, the NLWC-05 delivers immunity to electromagnetic interference (EMI), deterministic signal transmission, and long-distance optical connectivity that copper-based alternatives simply cannot match in high-noise industrial settings.

In modern automated production lines, data integrity between the field level and the control level is non-negotiable. The NLWC-05 fibre optic cable ensures that every signal — from sensor inputs and actuator feedback to alarm states and diagnostic packets — travels without degradation from the NDIO remote I/O nodes back to the central PLC or DCS controller. This makes it an indispensable element in any ABB-based industrial network architecture where uptime, precision, and real-time responsiveness are paramount.

Compatibility & Integration Notes

Connected Automation Data Flow

The NLWC-05 sits at the heart of ABB’s distributed I/O data chain. In a typical smart factory deployment, field-level sensors and actuators connect to ABB NDIO-01 or NDIO-02 remote I/O nodes installed close to the machine. These nodes aggregate digital and analog signals and transmit them upstream via the NLWC-05 fibre optic link to the NTAI-05 optical network adapter, which interfaces directly with the ABB AC500 PLC series — including the PM573-ETH and PM591 CPU modules — over the internal fieldbus backplane.

On the drive side, ABB ACS880 variable frequency drives equipped with optional fieldbus adapter modules receive speed references and return actual torque and current feedback through the same optical network, ensuring closed-loop control with minimal latency. The NLWC-05’s galvanic isolation is especially critical here, as drive cabinets generate significant electrical noise that would corrupt copper-based communication.

At the supervisory level, the CI867K01 PROFINET gateway and CI854AK01 PROFIBUS DP communication interface module bridge the ABB NDIO optical fieldbus to plant-wide Ethernet and PROFIBUS networks, feeding real-time process data into ABB Ability™ System 800xA DCS or third-party SCADA platforms. HMI panels such as the ABB CP600 series display live process variables, alarm states, and trend data sourced directly from the NDIO nodes via this optical data path.

For power-critical applications, ABB REF615 feeder protection relays also integrate into the same network architecture, providing protection event data and breaker status to the SCADA layer. The NLWC-05 ensures that even in substations and motor control centers — environments with extreme EMI — communication integrity is maintained without shielding compromises.

This end-to-end optical data flow — from field sensor through remote I/O, across the NLWC-05 fibre link, into the PLC, through the gateway, and up to SCADA and HMI — represents the complete industrial connectivity chain that the NLWC-05 enables. Every node in this chain depends on the physical reliability of the optical cable to sustain real-time control and monitoring.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, legacy controllers, and modern supervisory systems operate on incompatible protocols, creating information silos that prevent plant-wide visibility and coordinated control. The ABB NLWC-05, as part of the NDIO communication architecture, directly addresses this problem.

By providing a standardized optical physical layer, the NLWC-05 enables the NDIO system to act as a protocol bridge between legacy serial field devices and modern Ethernet-based control networks. Plants running mixed environments — where older ABB Advant controllers coexist with new AC500 PLCs and 800xA DCS — can use the NDIO optical network as a common data backbone, eliminating the need for costly parallel wiring infrastructure.

Remote monitoring and diagnostics are equally transformed. With the NLWC-05 maintaining a stable, high-integrity optical link, maintenance engineers can access live diagnostic data from remote I/O nodes — including module health, channel status, and communication error counters — directly from the SCADA workstation or even via ABB Ability™ cloud connectivity, without dispatching technicians to the field. This capability dramatically reduces mean time to repair (MTTR) and supports predictive maintenance strategies.

Production line transparency is another key benefit. When every field device is connected through a reliable optical network, production KPIs — OEE, cycle times, reject rates, energy consumption — can be aggregated in real time at the SCADA level and displayed on CP600 HMI panels at the line. Supervisors gain the visibility needed to make data-driven decisions, and quality engineers can correlate process parameters with product outcomes in ways that were previously impossible with isolated, paper-based reporting.

System expansion is also simplified. Adding new NDIO remote I/O nodes to an existing optical ring or star topology requires only an additional NLWC-05 cable segment and the appropriate NTAI-05 adapter — no rewiring of the control cabinet, no changes to the PLC program structure. This modularity supports phased factory upgrades and greenfield expansions alike, protecting the initial network investment while accommodating future capacity growth.

All units are pre-tested before shipment, with full continuity and optical loss verification performed to ABB factory standards. Availability confirmed by RFQ inventory ensures short lead times for MRO replacement and project commissioning alike. Every NLWC-05 is backed by a warranty terms confirmed during quotation covering manufacturing defects and optical performance.

Industrial Connectivity FAQ

Q1: What communication latency can I expect with the ABB NLWC-05 in an NDIO network?
The NLWC-05 fibre optic link introduces negligible propagation delay — typically under 5 microseconds per metre of cable — making it suitable for time-critical control loops. The overall cycle time of the NDIO network is primarily determined by the NTAI-05 adapter and AC500 PLC scan rate, not the physical cable. For most process control applications, end-to-end latency from field sensor to PLC is well under 10 milliseconds.

Q2: Is the NLWC-05 compatible with PROFIBUS DP or PROFINET networks?
The NLWC-05 is a physical-layer component specific to the ABB NDIO optical fieldbus. It does not natively carry PROFIBUS DP or PROFINET frames. However, when used in conjunction with the CI867K01 PROFINET gateway or CI854AK01 PROFIBUS DP interface, the NDIO network — connected via NLWC-05 — can exchange data with PROFIBUS and PROFINET segments, enabling full protocol interoperability within a mixed-network plant architecture.

Q3: How does the fibre optic design improve network stability in high-EMI environments?
Unlike copper cables, the NLWC-05 plastic optical fibre carries light signals rather than electrical currents, making it completely immune to electromagnetic interference from variable frequency drives, welding equipment, high-voltage switchgear, and other industrial noise sources. There is no ground loop risk, no signal attenuation from EMI, and no need for additional shielding or ferrite suppression. This results in a communication link that maintains BER (bit error rate) performance even in the most electrically hostile factory environments.

Q4: What warranty and testing standards apply to the NLWC-05?
Every NLWC-05 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and optical performance degradation. Prior to shipment, each cable undergoes optical continuity testing and insertion loss measurement to verify compliance with ABB’s original factory specifications. Certificates of conformity are available upon request. For urgent MRO requirements, availability confirmed by RFQ units can typically be dispatched within 24–48 hours of order confirmation.
