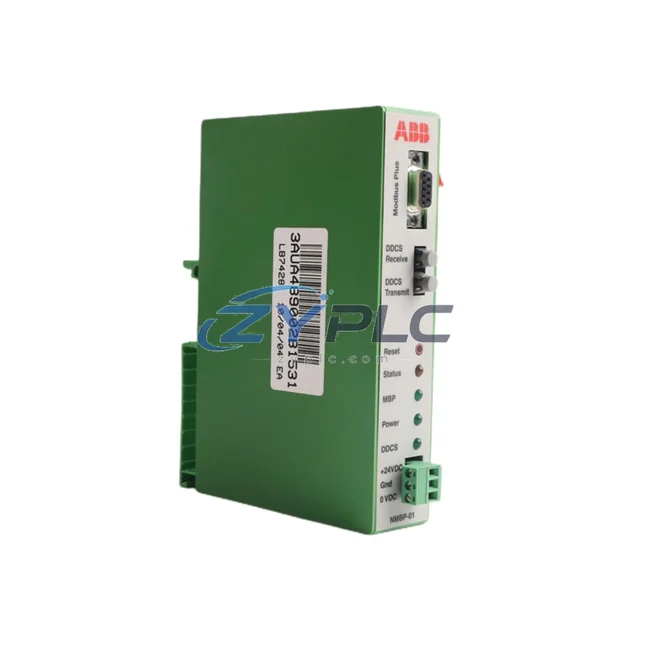

ABB NMBP-01 Industrial Network Interface for Modbus Plus Systems

ABB NMBP-01 Industrial Network Interface: Modbus Plus Data Link for Smart Factory Connectivity

The ABB NMBP-01 is a high-performance Modbus Plus communication gateway engineered to bridge field-level devices and upper-level control systems in demanding industrial environments. Designed for seamless integration with ABB drives, PLCs, and distributed control architectures, the NMBP-01 enables deterministic, real-time data exchange across the Modbus Plus network — a token-passing fieldbus protocol widely deployed in process automation, discrete manufacturing, and smart factory infrastructure.

In modern industrial sites, the ability to move data reliably from sensors and actuators through PLCs and remote I/O to SCADA and MES platforms is the backbone of operational transparency. The NMBP-01 fulfills this role by acting as a protocol-aware network interface that connects ABB frequency converters and drive systems directly into the Modbus Plus backbone, eliminating proprietary communication barriers and enabling unified data flow across the automation hierarchy.

Compatibility & Integration Notes

Connected Automation Data Flow

The NMBP-01 sits at the intersection of drive-level signal acquisition and plant-wide network communication. In a typical smart factory deployment, field sensors — including pressure transmitters, flow meters, and temperature probes — feed analog and digital signals into the ABB ACS800 or ACS880 variable frequency drive. The NMBP-01 adapter, mounted directly onto the drive’s option slot, captures this process data and encodes it into Modbus Plus frames for transmission across the fieldbus backbone.

Upstream, a Schneider Electric Quantum PLC or Modicon M340 controller acts as the Modbus Plus master, polling the NMBP-01 at deterministic scan intervals to retrieve speed references, torque feedback, fault codes, and energy consumption data. This data is simultaneously forwarded to a Wonderware InTouch or Ignition SCADA platform via an OPC-DA or OPC-UA gateway, enabling operators to monitor drive performance in real time from centralized HMI workstations.

For multi-drive installations, the NMBP-01 enables each ABB drive on the Modbus Plus segment to be individually addressed, allowing the PLC to issue coordinated start/stop commands, speed setpoints, and parameter writes across the entire drive network without additional wiring infrastructure. Remote I/O modules — such as the Schneider Momentum I/O or ABB S800 I/O — can be integrated into the same Modbus Plus segment, extending the data acquisition reach to valve actuators, conveyor encoders, and safety relay modules.

At the edge layer, an industrial edge gateway running Node-RED or similar middleware can subscribe to the Modbus Plus data stream via a protocol bridge, forwarding normalized JSON payloads to cloud-based MES or ERP platforms for production analytics, predictive maintenance scheduling, and OEE calculation. The NMBP-01 thus forms a critical link in the IIoT data chain — from rotating machinery to enterprise dashboards — without requiring costly network redesign or proprietary middleware licenses.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation: drives, PLCs, remote I/O, and HMI systems from different generations and vendors often speak incompatible communication languages, creating data silos that prevent plant-wide visibility and coordinated control. The ABB NMBP-01 directly addresses this by providing a standardized Modbus Plus interface for ABB drive systems, allowing them to participate as first-class citizens in an existing Modbus Plus network without custom programming or protocol converters.

For facilities running Schneider Electric PLC architectures alongside ABB drives, the NMBP-01 eliminates the need for serial-to-Ethernet gateways or third-party protocol translators. Drive status, fault diagnostics, and process variables are made available to the PLC master in real time, enabling closed-loop control strategies that were previously impossible due to communication latency or data unavailability.

Remote monitoring and diagnostics are equally enhanced. Maintenance engineers can access drive fault logs, thermal status, and runtime hours through the SCADA system without physically visiting the drive cabinet — reducing mean time to repair (MTTR) and enabling condition-based maintenance programs. Production line transparency is achieved as each drive’s operational state is continuously visible in the HMI, supporting alarm management, shift reporting, and energy auditing workflows.

System expansion is straightforward: additional ABB drives equipped with NMBP-01 adapters can be added to the Modbus Plus segment up to the network’s node limit, with no changes required to the PLC program structure beyond address mapping. This scalability makes the NMBP-01 a future-proof investment for facilities planning phased automation upgrades or capacity expansions.

Every NMBP-01 unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying network communication, parameter read/write integrity, and fault response behavior before dispatch. All units are covered by a warranty terms confirmed during quotation, with availability confirmed by RFQ availability supporting fast global delivery to minimize project downtime.

Industrial Connectivity FAQ

Q1: What is the communication latency of the ABB NMBP-01 on a Modbus Plus network?
The Modbus Plus protocol operates at 1 Mbit/s with a deterministic token-passing mechanism, delivering typical cycle times of 2–10 ms depending on the number of nodes and data volume. This makes the NMBP-01 suitable for real-time closed-loop control applications where consistent scan times are critical.

Q2: Is the NMBP-01 compatible with all ABB ACS drive series?
The NMBP-01 is designed for ABB ACS series drives that support the RDCO or RMIO option board architecture, including the ACS550, ACS800, and ACS880 families. Compatibility should be verified against the specific drive firmware version and option slot configuration prior to installation.

Q3: Can the NMBP-01 coexist with other fieldbus adapters on the same drive?
ABB drives typically support one active fieldbus adapter at a time in the primary option slot. If multiple network interfaces are required — for example, simultaneous Modbus Plus and PROFIBUS connectivity — a secondary option slot or an external protocol gateway must be used. Consult the drive’s hardware manual for option slot availability.

Q4: What warranty and testing does ZYPLC provide with the NMBP-01?
All NMBP-01 units are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing including Modbus Plus network communication verification, parameter access testing, and fault simulation checks. Availability is confirmed via RFQ for shipment arranged after confirmation with full documentation.
