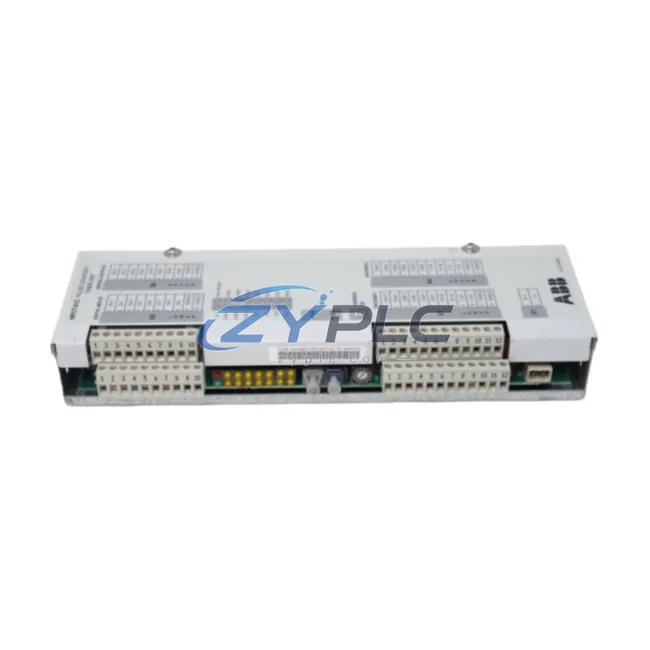

ABB NPCT-01C Pulse Counter for ACS880

ABB NPCT-01C Pulse Counter for ACS880

The ABB NPCT-01C is a dedicated pulse counter terminal module engineered for seamless integration within the ACS880 industrial drive platform. In modern layered automation architectures, the NPCT-01C occupies a critical position at the interface between the drive control layer and the field instrumentation layer, enabling precise encoder feedback, speed measurement, and position tracking without burdening the main CPU with additional signal conditioning tasks. Its role is not simply that of a standalone accessory — it is a system-level component that enhances the overall consistency, reliability, and diagnostic capability of the entire drive-based control architecture.

When deployed alongside the ACS880 drive series, the NPCT-01C integrates directly into the drive’s option slot architecture, communicating via the drive’s internal backplane bus. This eliminates the need for external signal converters or dedicated pulse counter PLCs, reducing panel footprint, wiring complexity, and potential signal degradation. Engineers working on high-precision motion control, conveyor synchronization, or process speed regulation will find that the NPCT-01C provides the measurement resolution and response speed required for closed-loop performance at the drive level.

Within a complete control system, the NPCT-01C works in coordination with upstream controllers such as the AC500 PLC series or the Symphony Plus DCS, which may issue speed setpoints and receive feedback via PROFIBUS DP or PROFINET communication gateways. The drive’s onboard RDCO-02 or RDCO-04 communication option modules handle fieldbus connectivity, while the NPCT-01C handles the physical encoder interface — a clear division of function that supports both system modularity and fault isolation. In redundant architectures, where dual ACS880 drives are configured for hot-standby or load-sharing operation, the NPCT-01C ensures that encoder feedback remains consistent across both drive channels, supporting seamless switchover without position loss.

At the I/O layer, the NPCT-01C complements ABB’s AIMA-01 analog I/O extension modules and RDIO-01 digital I/O modules, which handle process variable acquisition and discrete control signals respectively. Together, these modules form a coherent I/O architecture within the ACS880 drive system, reducing the dependency on external PLC I/O racks for drive-adjacent signal processing. This is particularly valuable in distributed motor control centers (MCCs) where panel space is limited and each drive must operate with a high degree of local intelligence.

From a network and communication perspective, the NPCT-01C’s data is made available to higher-level SCADA systems and historian platforms through the drive’s fieldbus interface. Whether the plant network runs on PROFIBUS, Modbus RTU, EtherNet/IP, or PROFINET — supported through ABB’s FPBA-01, FMBA-01, FENA-21, or FPNO-21 fieldbus adapter modules — the pulse count and speed data captured by the NPCT-01C can be transmitted upstream in real time, supporting process optimization, predictive maintenance, and maintenance planning initiatives.

For power supply integrity, the NPCT-01C draws its operating power from the ACS880 drive’s internal 24 VDC auxiliary supply, eliminating the need for a separate external power feed. This simplifies panel design and ensures that the module remains powered and operational even during drive fault conditions, preserving encoder data continuity for diagnostic purposes. In installations where an external 24 VDC UPS or PSMR-C power supply module is used to maintain drive auxiliary power during main supply interruptions, the NPCT-01C benefits directly from this redundancy.

Long-term maintenance and lifecycle management are key considerations in any industrial automation investment. The NPCT-01C is designed for tool-free installation and removal from the ACS880 option slot, supporting rapid module exchange during scheduled maintenance windows without requiring drive shutdown or reconfiguration. Its compatibility with ABB’s Drive Composer Pro commissioning software allows engineers to verify pulse counter configuration, calibrate encoder parameters, and run diagnostic routines directly from a laptop, reducing on-site commissioning time and minimizing the risk of configuration errors.

All NPCT-01C units supplied by ZYPLC are sourced from verified supply channels, individually tested for functional integrity, and covered by a warranty terms confirmed during quotation. Our inventory is maintained to support both planned project procurement and urgent replacement requirements, with fast international shipping to manufacturing facilities, power plants, water treatment stations, mining operations, and process industry sites worldwide.

Product Specification Table

System Compatibility Notes

The NPCT-01C achieves its full value when considered as part of a coordinated drive system architecture rather than an isolated component. In a typical ACS880-based motor control application, the module works alongside the RDCO-02 DDCS communication option for fiber-optic master-follower drive coordination, the AIMA-01 analog I/O extension module for process variable feedback, and the RDIO-01 digital I/O extension module for discrete control signals. Together, these option modules transform the ACS880 from a standalone variable frequency drive into a fully integrated drive controller capable of participating in complex multi-axis or multi-drive architectures.

At the control layer, the ABB AC500 PLC — particularly the PM573 or PM591 CPU modules — serves as the system master, issuing speed references and receiving status feedback from the ACS880 via PROFIBUS DP using the FPBA-01 PROFIBUS adapter. The NPCT-01C’s pulse count data is made available to the AC500 through this fieldbus link, enabling the PLC to implement closed-loop speed or position control algorithms that span multiple drives and I/O stations. For Ethernet-based architectures, the FENA-21 EtherNet/IP and PROFINET adapter provides the connectivity layer between the ACS880 and the plant network, supporting integration with Rockwell ControlLogix systems or Siemens S7-1500 PLCs in mixed-vendor environments.

In applications requiring human-machine interface access to drive parameters and pulse counter data, the ABB CP600 HMI panel or third-party SCADA systems connect via the plant Ethernet network, retrieving real-time speed, position, and diagnostic data from the ACS880 through the FENA-21 adapter. The NPCT-01C’s measurement data thus flows seamlessly from the field encoder, through the drive’s option slot, across the fieldbus network, and up to the operator interface — a complete, uninterrupted signal chain that supports both operational visibility and rapid fault diagnosis.

Industrial Application Notes

The NPCT-01C finds application across a wide range of process and discrete manufacturing industries where precise speed and position measurement at the drive level is essential for system performance and safety.

In mining and minerals processing, the module is used in conveyor drive systems where belt speed synchronization between multiple ACS880 drives is critical to prevent belt slip, material spillage, and mechanical stress. The NPCT-01C provides the encoder feedback that enables the drive to maintain precise speed ratios across a multi-drive conveyor train, even under varying load conditions.

In power generation and utilities, the NPCT-01C supports pump and fan drive applications where flow rate is inferred from motor speed, and where accurate speed measurement is required for maintenance planning algorithms. Water treatment facilities use the module in variable-speed pump drives to maintain precise flow control across multiple parallel pump stations.

In petrochemical and refinery applications, the NPCT-01C is deployed in compressor and agitator drives where speed accuracy directly affects process yield and product quality. Its ability to handle high-frequency encoder signals makes it suitable for high-speed rotating equipment where conventional analog tachometer feedback is insufficient.

In packaging and material handling, the module enables precise web tension control and registration mark detection in printing and converting lines, where multiple ACS880 drives must maintain exact speed ratios to ensure product quality and minimize waste.

In metallurgy and steel processing, the NPCT-01C supports rolling mill drive systems where precise speed control across multiple drive stands is essential for maintaining strip thickness tolerances and surface quality.

Product Compatibility FAQ

Q1: Is the NPCT-01C compatible with all ACS880 drive variants, and can it be used alongside other option modules in the same drive?
The NPCT-01C is designed for the ACS880 single drive and multidrives platform and is installed in the drive’s option slot 1 or slot 2, depending on the specific ACS880 variant and existing option module configuration. It can coexist with communication adapter modules such as the FPBA-01 or FENA-21, which typically occupy a different option slot. Engineers should consult the ACS880 hardware manual and the NPCT-01C installation guide to confirm slot compatibility for their specific drive frame size and firmware version. ZYPLC’s technical team can assist with compatibility verification prior to order placement.

Q2: How does the NPCT-01C integrate with higher-level PLC or DCS systems, and what data is accessible via the fieldbus?
The NPCT-01C communicates with the ACS880 drive’s internal control board via the option slot backplane. Its pulse count, speed measurement, and status data are mapped to the drive’s parameter set and made available to external controllers via the drive’s fieldbus adapter — whether PROFIBUS DP (FPBA-01), PROFINET (FPNO-21), or EtherNet/IP (FENA-21). The specific parameter addresses and process data word mappings are defined in the NPCT-01C user manual and can be configured using ABB Drive Composer Pro. This allows seamless integration with AC500 PLCs, Symphony Plus DCS, or third-party control systems without requiring additional signal conditioning hardware.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for replacement or repair if a fault occurs during the warranty period?
All NPCT-01C units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. The warranty covers manufacturing defects, functional failures under normal operating conditions, and premature component failure not attributable to misuse, incorrect installation, or environmental conditions outside the module’s rated specifications. In the event of a warranty claim, customers should contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the order reference and a description of the fault. ZYPLC will arrange for module testing, repair, or replacement as appropriate, with the objective of minimizing system downtime. Advance replacement units may be available for critical applications subject to stock availability.
