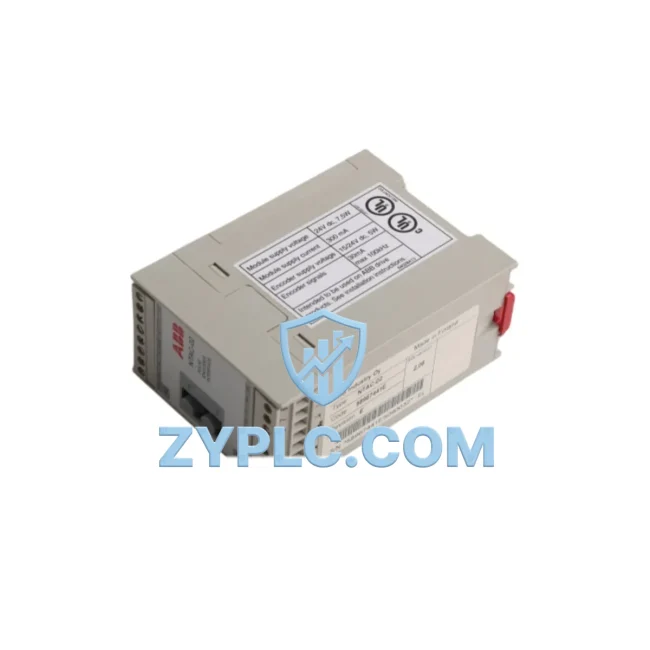

ABB NTAC-02 58967441 Industrial Network Interface for ACS800 Systems

ABB NTAC-02 58967441: Industrial Data Link for Smart Factory Drive Networks

The ABB NTAC-02 (58967441) is a high-precision pulse encoder interface module engineered for seamless integration within industrial drive networks. Designed to operate with ABB’s ACS800 series variable frequency drives, this module bridges the gap between rotary encoder feedback signals and the broader automation data infrastructure — enabling real-time speed, position, and torque data to flow accurately from field devices through to PLC controllers, SCADA platforms, and HMI systems.

In modern smart factory environments, the integrity of encoder feedback is foundational to closed-loop motor control. The NTAC-02 captures incremental pulse signals from shaft encoders and transmits them with minimal latency to the drive’s RMIO control board, where the data is processed and made available across the plant’s communication backbone. This tight integration between the encoder interface and the drive’s internal logic ensures that speed regulation remains stable even under dynamic load conditions — a critical requirement in applications such as winding machines, cranes, conveyors, and precision machining centers.

Network Communication Table

Connected Automation Data Flow

The NTAC-02 sits at the origin of the drive’s data chain. Once the encoder signal is captured and conditioned by the NTAC-02, it feeds directly into the RMIO-11 control board mounted within the ACS800 cabinet. The RMIO board processes the speed and position data and makes it available to the drive’s internal logic as well as to external communication adapters. When the plant network runs on PROFIBUS DP, the RDCO-02 communication module translates the drive’s internal DDCS protocol into PROFIBUS frames, allowing the AC500 PLC — ABB’s modular programmable logic controller — to poll real-time drive status, speed references, and fault codes at cyclic intervals.

For plants operating on Ethernet-based architectures, the RINT-5611C fiber optic interface extends the DDCS link over longer distances between drive cabinets and the control room, maintaining signal integrity in electrically noisy environments. At the supervisory level, the NETA-21 remote monitoring tool connects to the drive network via Ethernet and provides web-based access to drive parameters, energy consumption data, and predictive maintenance indicators — all derived from the real-time encoder feedback that originates at the NTAC-02.

Operator interaction is handled through the Panel 800 / PP885 HMI, which displays live speed curves, torque trends, and alarm histories sourced from the ACS800 drive. In multi-drive installations, the ACS800-17 regenerative drive unit shares the same encoder interface architecture, allowing the NTAC-02 to be deployed consistently across the production line. Edge data aggregation is managed by an ABB Ability™ Edge Gateway, which collects drive telemetry and forwards it to the ABB Ability™ SCADA / DCS 800xA platform for plant-wide visualization, historian logging, and alarm management. Sensor-level signals — such as those from proximity switches and incremental encoders on conveyor rollers — are wired through ABB remote I/O modules before being consolidated into the same data stream, ensuring end-to-end visibility from field device to enterprise dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols and legacy equipment. The NTAC-02 addresses this directly by providing a standardized encoder interface that integrates cleanly with ABB’s DDCS communication architecture, eliminating the need for custom signal conditioning hardware between the encoder and the drive. This reduces wiring complexity, lowers the risk of signal degradation, and ensures that encoder data is available in a structured format that upstream systems — including PROFIBUS masters, Modbus TCP gateways, and OPC-UA servers — can consume without additional translation layers.

In sites where multiple drive generations coexist, the NTAC-02’s compatibility with the ACS800 platform allows engineers to standardize encoder feedback across the fleet, reducing spare parts inventory and simplifying maintenance training. Remote diagnostics become practical when the NETA-21 or ABB Ability™ platform is connected: maintenance teams can monitor encoder pulse counts, detect slip or stall conditions, and receive predictive alerts before a mechanical fault causes unplanned downtime. Production line transparency improves as real-time speed and position data flows continuously into the SCADA historian, enabling OEE calculations, shift reports, and energy audits to be generated automatically without manual data collection.

System expansion is equally straightforward. Adding a new drive to the network requires only the installation of an NTAC-02 in the new ACS800 cabinet and the configuration of the corresponding RDCO or Ethernet adapter — the existing PLC program and SCADA tags can be extended with minimal engineering effort, protecting the plant’s investment in its automation infrastructure.

Industrial Connectivity FAQ

Q1: What encoder types are compatible with the NTAC-02?
The NTAC-02 supports incremental TTL and HTL pulse encoders commonly used in industrial servo and induction motor applications. It is designed for use with the ACS800 drive series and interfaces directly with the RMIO control board. Encoder resolution and pulse frequency should be verified against the drive’s configuration parameters before commissioning.

Q2: How does the NTAC-02 support SCADA and HMI integration?
The NTAC-02 itself does not communicate directly with SCADA or HMI systems — it provides encoder feedback to the ACS800 drive, which then exposes that data through communication adapters such as the RDCO-02 (PROFIBUS) or Ethernet modules. The NETA-21 remote monitoring tool and ABB Ability™ SCADA platform can then access drive parameters, including encoder-derived speed and position values, for real-time visualization and historian logging.

Q3: Is the NTAC-02 covered by a warranty, and what does it include?
Yes. All NTAC-02 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify signal integrity and connector condition. In the event of a verified defect within the warranty period, ZYPLC will arrange replacement or repair at no additional cost to the buyer.

Q4: Can the NTAC-02 be used in network expansion projects without reprogramming the PLC?
In most cases, yes. Because the NTAC-02 integrates with the ACS800’s existing DDCS architecture, adding a new drive with an NTAC-02 to an established network typically requires only parameter configuration at the drive level. The PLC program and SCADA tag database can be extended incrementally, and the new drive’s encoder data becomes available on the network without requiring a full system restart or re-commissioning of existing drives.
