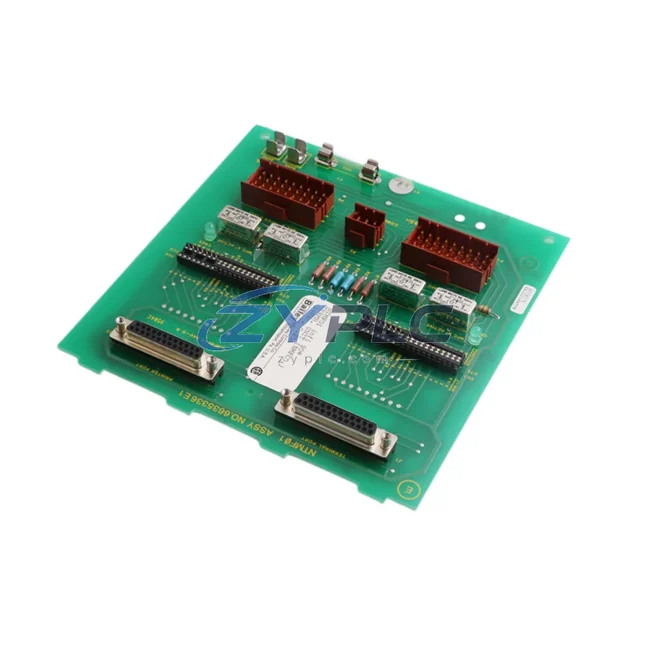

ABB NTMF01 Fieldbus Communication Gateway for AC800F Systems

ABB NTMF01 Fieldbus Communication Gateway: Industrial Data Link for AC800F Systems

The ABB NTMF01 is a high-performance Fieldbus Communication Gateway engineered for seamless integration within ABB’s AC800F Distributed Control System (DCS) architecture. Designed to bridge the gap between field-level devices and supervisory control networks, the NTMF01 enables reliable, real-time data exchange across complex industrial environments — from signal acquisition at the sensor layer all the way to SCADA dashboards and enterprise MES platforms. In smart factory deployments where data continuity is mission-critical, the NTMF01 serves as the backbone of a transparent, low-latency communication chain.

Whether you are managing a continuous process plant, a discrete manufacturing line, or a hybrid automation environment, the NTMF01 delivers the protocol flexibility and network stability required to keep every node in your system synchronized. Its role in the AC800F ecosystem makes it an indispensable component for engineers seeking to eliminate data silos, reduce integration complexity, and achieve full production visibility.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical AC800F-based control architecture, the NTMF01 sits at the heart of the fieldbus segment, collecting process variables from FOUNDATION Fieldbus H1 field instruments — including pressure transmitters, flow meters, and temperature sensors — and delivering structured data packets to the AC800F controller over the system backplane. This deterministic data path ensures that the controller always operates on fresh, accurate process values, enabling tight PID loop control and rapid alarm response.

Upstream from the NTMF01, the AC800F controller communicates with the plant SCADA system via the ABB CI840A or CI854A communication interface modules, which handle Profibus DP and Industrial Ethernet connectivity respectively. This layered architecture means that a single NTMF01 gateway can serve as the data source for multiple SCADA tags, historian entries, and HMI display blocks simultaneously — without introducing polling delays or communication bottlenecks.

On the field side, the NTMF01 supports connection to ABB S800 I/O modules for analog and digital signal conditioning, as well as third-party HART-enabled transmitters that require transparent pass-through to asset management software. In drive integration scenarios, the gateway facilitates data exchange with ABB ACS880 variable frequency drives, enabling speed reference commands and feedback values to flow seamlessly between the DCS and the drive’s internal control logic.

For remote I/O applications, the NTMF01 works in conjunction with ABB TB820 or TB840 termination units, extending the fieldbus segment to distributed marshalling cabinets located hundreds of meters from the main control room. This capability is particularly valuable in large-scale process plants where running individual signal cables back to a central I/O room is cost-prohibitive. Edge gateway devices installed at remote panels can aggregate local sensor data and forward it through the NTMF01 to the AC800F controller, creating a fully connected, plant-wide data fabric.

At the supervisory level, the NTMF01-sourced data feeds directly into ABB System 800xA — the integrated operations platform that combines DCS control, safety, electrical, and information management into a single operator environment. Operators working at 800xA HMI stations see live process values, device diagnostics, and alarm states that originate from field instruments connected through the NTMF01, making the gateway a silent but essential contributor to every operational decision made on the plant floor.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is the coexistence of multiple, incompatible communication protocols across different generations of equipment. A plant may have legacy Modbus RTU devices installed alongside newer PROFIBUS PA instruments and FOUNDATION Fieldbus transmitters — each speaking a different language, each requiring a separate integration path. Without a capable gateway like the NTMF01, these devices remain isolated islands of data, invisible to the SCADA system and inaccessible to maintenance engineers performing remote diagnostics.

The NTMF01 resolves this fragmentation by acting as a universal translator within the AC800F ecosystem. Its multi-protocol support allows engineers to consolidate data from heterogeneous field devices into a single, coherent data stream that the DCS controller can process uniformly. This eliminates the need for multiple standalone protocol converters, reduces panel wiring complexity, and simplifies the overall network topology.

Remote monitoring and diagnostics are equally transformed by the NTMF01’s capabilities. Maintenance teams can access device-level diagnostics — including valve position feedback, transmitter self-test results, and communication error counters — directly from the SCADA interface, without dispatching technicians to the field. This remote visibility dramatically reduces mean time to repair (MTTR) and supports predictive maintenance strategies that keep production lines running at peak efficiency.

For greenfield projects and system expansions, the NTMF01 provides a scalable foundation. Additional fieldbus segments can be added to the AC800F system by installing additional NTMF01 modules in the controller rack, allowing the control system to grow alongside the plant without requiring a complete network redesign. This modularity makes the NTMF01 a future-proof investment for facilities planning phased capacity expansions or technology upgrades over a multi-year horizon.

Production line transparency — the ability to see every device, every process variable, and every alarm state in real time — is the ultimate goal of smart factory connectivity. The NTMF01 makes this transparency achievable by ensuring that no field device is left off the network, no data point is stranded in a proprietary protocol silo, and no communication gap interrupts the flow of information from the plant floor to the control room.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB NTMF01 support, and is it compatible with third-party SCADA systems?
The NTMF01 supports FOUNDATION Fieldbus H1 as its primary fieldbus protocol, with compatibility for PROFIBUS DP/PA and HART pass-through depending on system configuration. Within the AC800F architecture, data collected by the NTMF01 is made available to the controller and can be forwarded to any SCADA system — including Wonderware, Ignition, and OSIsoft PI — via the AC800F’s upper-level communication interfaces such as the CI854A Ethernet module.

Q2: How does the NTMF01 ensure network stability and minimize communication latency in time-critical control loops?
The NTMF01 uses deterministic, scheduled communication cycles on the FOUNDATION Fieldbus H1 segment, guaranteeing that process values are delivered to the AC800F controller within defined time windows. This eliminates the jitter associated with non-deterministic Ethernet-based polling and ensures that PID control loops receive fresh input data on every scan cycle, maintaining tight process control even under high network load conditions.

Q3: Can the NTMF01 be used to expand an existing AC800F system, and what is the maximum number of field devices it can support per segment?
Yes, the NTMF01 is designed for modular system expansion. Additional modules can be installed in the AC800F controller rack to add new fieldbus segments as the plant grows. A single FOUNDATION Fieldbus H1 segment typically supports up to 32 field devices, depending on cable length, power supply capacity, and device current consumption. For larger installations, multiple NTMF01 modules can be deployed in parallel to distribute the device load across independent segments.

Q4: What pre-shipment testing and warranty coverage is provided with the ABB NTMF01?
Every ABB NTMF01 unit supplied by ZYPLC undergoes a comprehensive functional verification process prior to shipment, including communication interface testing, protocol handshake validation, and power-on self-test confirmation. All units are covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a verified hardware fault within the warranty period, ZYPLC will arrange replacement or repair at no additional cost to the customer. Global shipping via DHL and FedEx ensures fast delivery to any destination worldwide.
