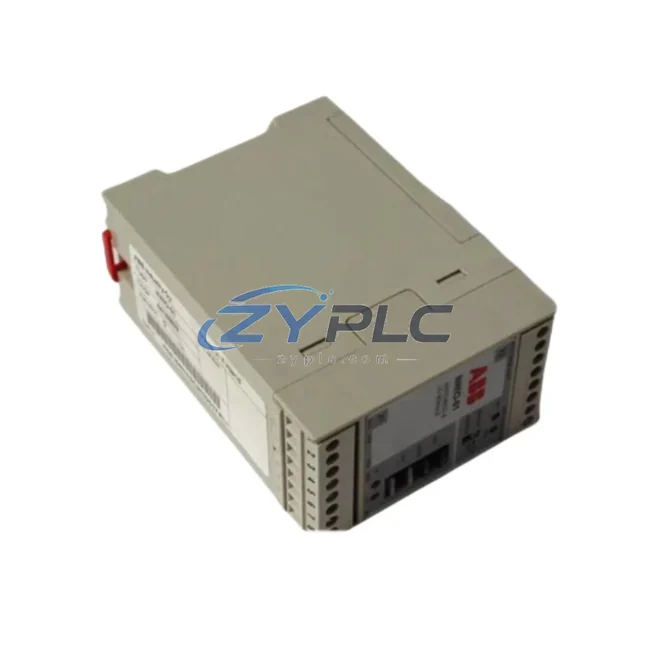

ABB NWPM-01 Fieldbus Adapter ACS Series

ABB NWPM-01 Fieldbus Adapter ACS Series: Replacement and Sourcing Information

The ABB NWPM-01 is a high-performance Modbus fieldbus adapter module engineered for seamless integration with ABB’s ACS drive series — including the ACS550, ACS580, ACS800, and ACS880 variable frequency drives. In modern manufacturing environments where equipment uptime and replacement lead time directly affect production continuity, the NWPM-01 serves as a critical communication bridge between the drive control layer and the supervisory control network, enabling real-time condition monitoring, precise motor speed regulation, and data-driven maintenance decisions.

By connecting ACS-series drives to Modbus RTU/TCP networks, the NWPM-01 allows plant engineers and automation specialists to read live power consumption data, adjust drive parameters remotely, and integrate drive status into broader SCADA or DCS platforms — all without interrupting production. This level of visibility is foundational to any serious maintenance planning strategy on the factory floor.

Product Specification Table

System Compatibility and Application

The NWPM-01 does not operate in isolation — its true value emerges when deployed as part of a layered, industrial automation system. In a typical installation, the module slots directly into the option slot of an ABB ACS580 or ACS880 variable frequency drive, immediately enabling Modbus communication between the drive and the plant’s control network.

At the control layer, a Siemens S7-1200 PLC or ABB AC500 PLC can issue speed reference commands and read back actual motor current, torque, and power factor values via the NWPM-01’s Modbus interface. This closed-loop control eliminates the unplanned downtime associated with fixed-speed motor operation — a common source of 30–40% excess operating load in pump and fan applications. When paired with an ABB FPBA-01 PROFIBUS adapter on adjacent drives in the same system, engineers can standardize communication across mixed-protocol environments without replacing existing infrastructure.

For energy metering and power quality analysis, the NWPM-01’s data output integrates naturally with ABB B23 or B24 energy meters, which capture kWh consumption at the drive level and feed data upstream to an maintenance planning system. This granular metering capability allows facility managers to identify which motors are consuming disproportionate energy during off-peak hours — a key step in reducing standby losses and improving overall equipment effectiveness (OEE).

On the HMI side, an ABB CP600 panel or Siemens KTP700 Basic HMI can display real-time drive status, operating load trends, and fault diagnostics pulled through the Modbus network. Operators gain immediate visibility into motor load, frequency setpoint, and output current — enabling faster response to process deviations before they escalate into unplanned downtime.

In distributed I/O architectures, the NWPM-01 works alongside ABB CI854 PROFIBUS DP communication interfaces and standard Modbus I/O expansion modules to extend the control network across large production floors. This scalability is particularly valuable in automotive assembly, food processing, and chemical manufacturing lines where dozens of drives must be coordinated to maintain consistent production rhythm and minimize energy peaks during simultaneous motor starts.

Power supply stability is equally important. The NWPM-01 and its host drive benefit from clean, regulated DC bus power, often sourced through ABB UNO-PS/1AC/24DC power supply units or equivalent DIN-rail mounted supplies that filter line noise and protect sensitive communication electronics from voltage transients common in heavy industrial environments.

Maintenance and Replacement Notes

Consider a mid-scale water treatment facility running six centrifugal pumps, each driven by an ACS550 variable frequency drive. Without fieldbus communication, operators must manually adjust drive parameters at each local keypad — a time-consuming process that often results in drives running at fixed, non-optimal speeds. By installing the NWPM-01 in each drive and connecting them to a central Modbus network, the facility’s SCADA system can dynamically adjust pump speeds based on real-time flow demand, pressure sensor feedback, and time-of-day energy tariffs.

The result is measurable: pump operating load drops by 25–40% as drives no longer run at full speed during low-demand periods. Motor bearing wear decreases because soft-start and soft-stop profiles — configured remotely via Modbus — eliminate mechanical shock at startup. Maintenance teams receive predictive alerts when motor current deviates from baseline, allowing scheduled intervention before a bearing failure causes an unplanned shutdown that could cost thousands in lost production.

In conveyor and material handling applications, the NWPM-01 enables coordinated multi-drive control where upstream and downstream conveyor speeds are synchronized through PLC logic, eliminating product accumulation, reducing belt tension stress, and cutting the unplanned downtimed by drives fighting against each other at mismatched speeds. Line throughput improves, and the energy cost per unit produced decreases — a direct contribution to manufacturing competitiveness.

For facilities pursuing ISO 50001 maintenance planning certification, the NWPM-01’s ability to provide continuous, timestamped energy data at the drive level is invaluable. Auditors require documented evidence of operating load by system and by time period; the Modbus data stream from NWPM-01-equipped drives, logged by the plant’s maintenance planning software, provides exactly this evidence without additional metering hardware.

Every NWPM-01 unit supplied by ZYPLC undergoes full functional testing including Modbus communication verification, parameter read/write validation, and drive compatibility confirmation before shipment. RFQ-confirmed availability supports fast delivery to minimize project delays, and the warranty terms confirmed during quotation covers all manufacturing defects and communication failures under normal operating conditions.

Product Sourcing FAQ

Q1: How much energy can I realistically save by using the ABB NWPM-01 with my ACS drive?
Operational stability depend on the application, but in variable-torque loads such as pumps, fans, and compressors, closed-loop speed control enabled by the NWPM-01’s Modbus interface typically reduces motor load by 20–50% compared to fixed-speed or manual-setpoint operation. The savings are most significant when drives previously ran at constant speed regardless of actual process demand.

Q2: Which ABB ACS drive models are compatible with the NWPM-01?
The NWPM-01 is compatible with the ABB ACS550, ACS580, ACS800, and ACS880 drive families. It installs into the standard option slot and is recognized automatically by the drive firmware. For other ACS models or legacy drives, please confirm compatibility with the drive’s option slot specification before ordering.

Q3: Can the NWPM-01 replace a faulty or discontinued fieldbus adapter in an existing installation?
Yes. The NWPM-01 is a direct replacement for failed or end-of-life Modbus adapter modules in ACS-series drives. Because it uses the standard ABB option slot interface, no drive modification is required. ZYPLC recommends verifying the drive firmware version to ensure full parameter compatibility, and our technical team can assist with replacement guidance prior to installation.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every NWPM-01 unit is tested for Modbus communication integrity, drive slot compatibility, and parameter access before dispatch. The warranty terms confirmed during quotation covers all defects in materials and workmanship under normal industrial operating conditions. It does not cover damage from incorrect installation, overvoltage events, or unauthorized modification. Warranty claims are processed promptly with replacement units dispatched from RFQ-confirmed sourcing to minimize your downtime.
