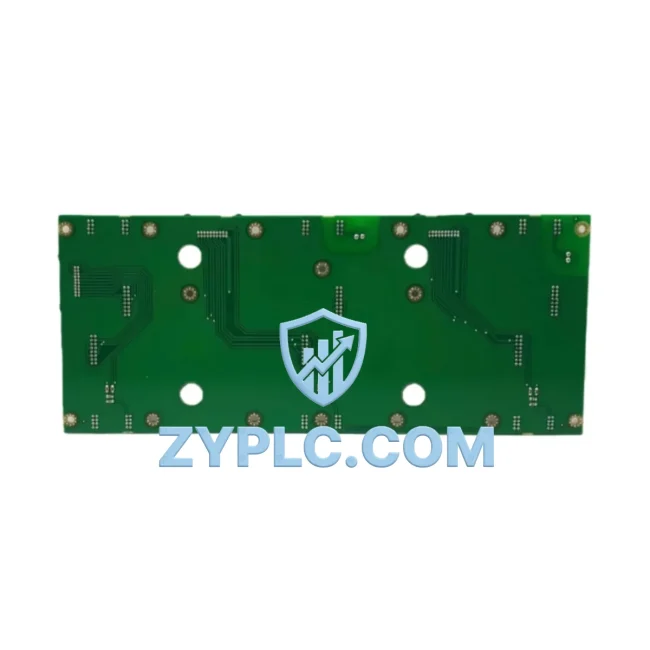

ABB NXPP-06 Industrial Network Interface for AC800M Systems

ABB NXPP-06 Industrial Network Interface for AC800M Systems: Bridging the Industrial Data Link

The ABB NXPP-06 is a high-performance PROFIBUS DP communication gateway engineered for seamless integration within the ABB AC800M Distributed Control System (DCS) architecture. Designed to serve as the critical data bridge between field-level devices and supervisory control platforms, the NXPP-06 enables reliable, low-latency protocol conversion across complex industrial network topologies. Whether deployed in continuous process manufacturing, power generation, oil & gas, or advanced smart factory environments, this module delivers the connectivity backbone that modern industrial automation demands.

In today’s industrial landscape, the ability to move data seamlessly from sensors and actuators through PLCs, remote I/O stations, HMI panels, and SCADA systems is no longer optional — it is the foundation of operational transparency and competitive efficiency. The NXPP-06 addresses this need directly, providing a robust PROFIBUS DP interface that connects the AC800M controller to a wide ecosystem of field devices, enabling real-time data acquisition, process monitoring, alarm management, and remote diagnostics from a single, unified network layer.

Network Communication Table

Connected Automation Data Flow

The NXPP-06 sits at the heart of the AC800M control architecture, acting as the PROFIBUS DP communication interface that connects the controller’s internal data bus to the broader field network. In a typical smart factory deployment, the data flow begins at the sensor and actuator layer — pressure transmitters, flow meters, temperature sensors, and valve positioners — all communicating their process values upward through the PROFIBUS DP network managed by the NXPP-06.

At the controller level, the ABB AC800M CPU module processes incoming field data and issues control commands back through the NXPP-06 to connected field devices. This bidirectional data exchange is continuous and deterministic, ensuring that process variables are always current and control responses are executed within defined cycle times. The NXPP-06 supports connection to ABB S800 Remote I/O modules, allowing distributed I/O expansion across large plant areas without sacrificing network performance or data integrity.

For drive and motor control integration, the NXPP-06 enables direct PROFIBUS DP communication with ABB ACS880 and ACS580 variable frequency drives, allowing speed references, torque commands, and drive status feedback to be exchanged in real time with the AC800M controller. This eliminates the need for analog signal wiring between the controller and drive panels, reducing installation complexity and improving diagnostic resolution.

At the HMI and SCADA layer, operator workstations running ABB System 800xA or third-party SCADA platforms such as Wonderware InTouch or Ignition connect to the AC800M over Ethernet, with the NXPP-06 serving as the PROFIBUS gateway that bridges field-level data into the supervisory network. Alarm conditions detected at the field device level — such as sensor faults, drive trips, or I/O module failures — are propagated through the NXPP-06 to the SCADA alarm management system within milliseconds, enabling rapid operator response and minimizing unplanned downtime.

For remote diagnostics and predictive maintenance applications, the NXPP-06 supports integration with ABB Ability™ edge connectivity solutions and industrial edge gateways, enabling plant engineers to monitor PROFIBUS network health, device diagnostics, and communication statistics from remote locations. This capability is particularly valuable in geographically distributed facilities where on-site troubleshooting is costly and time-consuming.

The NXPP-06 also integrates naturally with ABB CI854 and CI855 communication interface modules within the AC800M rack, providing a modular, scalable approach to building out the plant communication infrastructure. As production lines expand or new process areas are added, additional NXPP-06 modules can be inserted into the AC800M rack to extend PROFIBUS DP network coverage without requiring controller replacement or major system redesign.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Older field devices may speak only PROFIBUS DP, while newer systems demand PROFINET or EtherNet/IP connectivity. Without a capable gateway module like the NXPP-06, these protocol boundaries create data silos — islands of process information that cannot be accessed by the supervisory control layer, leading to blind spots in production monitoring and delayed fault response.

The NXPP-06 directly resolves this challenge by providing a standards-compliant PROFIBUS DP interface that allows the AC800M controller to communicate with any GSD-file-compatible field device, regardless of manufacturer. This open protocol approach means that legacy instrumentation, third-party drives, and specialized process analyzers can all be integrated into the same unified control network, eliminating data isolation and enabling true production line transparency.

For facilities undergoing digital transformation initiatives, the NXPP-06 provides a cost-effective path to connecting existing PROFIBUS field networks to modern SCADA and MES platforms without requiring wholesale replacement of field instrumentation. By preserving the existing PROFIBUS infrastructure while enabling data access at the supervisory level, the NXPP-06 significantly reduces the capital investment required for plant digitalization projects.

Remote monitoring capabilities enabled by the NXPP-06 allow maintenance teams to perform network diagnostics, review device status, and identify communication faults from the control room or from remote access terminals — reducing the need for physical field inspections and accelerating fault resolution. Combined with the module’s support for PROFIBUS DP V1 acyclic services, maintenance personnel can read and write device parameters remotely, enabling online configuration changes without process interruption.

System scalability is another key advantage of the NXPP-06 architecture. As production requirements evolve and new automation equipment is added to the plant floor, the PROFIBUS DP network managed by the NXPP-06 can be extended to accommodate additional nodes without disrupting existing communications. This plug-and-play expandability makes the NXPP-06 a long-term investment that grows with the facility’s automation needs.

Industrial Connectivity FAQ

Q1: What is the maximum communication speed supported by the ABB NXPP-06?
The NXPP-06 supports PROFIBUS DP transmission rates from 9.6 kbps up to 12 Mbps, with automatic baud rate detection. At 12 Mbps, the module delivers sub-millisecond cycle times for time-critical process control applications, ensuring that the AC800M controller receives fresh field data within every control scan cycle.

Q2: Is the NXPP-06 compatible with third-party PROFIBUS DP devices from other manufacturers?
Yes. The NXPP-06 is fully compliant with the PROFIBUS DP standard (EN 50170) and supports GSD file-based device integration, making it compatible with PROFIBUS DP field devices from any manufacturer. This includes drives, remote I/O modules, process instruments, and safety devices from vendors such as Siemens, Phoenix Contact, Pepperl+Fuchs, and others.

Q3: How is network stability ensured in high-noise industrial environments?
The NXPP-06 is designed to operate reliably in electrically noisy industrial environments, with robust EMC shielding and compliance with IEC 61000 electromagnetic compatibility standards. The PROFIBUS DP physical layer uses RS-485 differential signaling, which provides inherent noise immunity. Additionally, the module supports network redundancy configurations within the AC800M architecture to ensure continuous communication availability even in the event of a cable fault or device failure.

Q4: What warranty and pre-shipment testing does the NXPP-06 include?
Every ABB NXPP-06 unit supplied by ZYPLC is covered by a 12-month warranty and undergoes pre-shipment functional testing to verify communication performance, protocol compliance, and hardware integrity before dispatch. Units are shipped with full documentation support and are available from stock for immediate delivery to global destinations.
