ABB OS30AJ12 Disconnect Switch OS Series

ABB OS30AJ12 Disconnect Switch for OS Series Automation

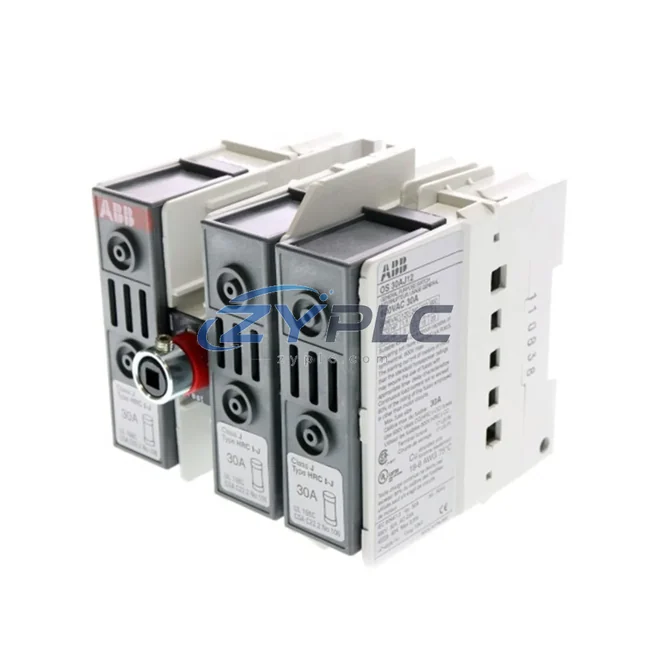

The ABB OS30AJ12 is a 600V, 30A, 3-Pole Class J fusible disconnect switch engineered for high-efficiency industrial power distribution and motor circuit protection. As part of ABB’s proven OS Series, the OS30AJ12 is purpose-built to reduce unnecessary energy draw during machine idle states, enable rapid safe isolation for maintenance cycles, and support lean production line scheduling — all critical factors in modern maintenance-focused manufacturing environments.

In facilities where uptime and energy cost are equally weighted KPIs, the OS30AJ12 delivers measurable value. Its low-resistance contact design minimizes resistive losses across the switching element, while its compact DIN-rail-compatible enclosure simplifies integration into existing motor control centers (MCCs) and distribution panels without requiring panel redesign. Whether deployed in conveyor drive circuits, pump motor branches, or HVAC fan control segments, the OS30AJ12 ensures that energy flows only where and when it is needed.

Product Specification Table

System Compatibility and Application

The OS30AJ12 does not operate in isolation — its greatest efficiency gains emerge when it is integrated into a coordinated automation architecture. In a typical energy-optimized production cell, the OS30AJ12 serves as the upstream isolation point for motor branch circuits controlled by an ABB ACS355 or ABB ACS580 variable frequency drive (VFD). These drives regulate motor speed in direct proportion to process demand, and the OS30AJ12 ensures that during planned shutdowns or shift changeovers, the entire motor branch can be safely de-energized without back-feeding the drive bus.

At the control layer, an ABB AC500 PLC or ABB Compact 800 controller coordinates the sequencing of disconnect operations across multiple production zones. The PLC reads real-time operating load data from ABB M2M energy meters or ABB B23 power analyzers installed on the main distribution board, enabling the control system to identify high-consumption periods and trigger load-shedding routines that include safe actuation of OS Series disconnects like the OS30AJ12.

For distributed I/O architectures, the OS30AJ12 is commonly paired with ABB CI854 or ABB TU516 I/O terminal units that relay status signals — open/closed confirmation, fault flags — back to the supervisory control layer. This closed-loop feedback ensures that the maintenance planning system always has an accurate picture of which motor branches are live, enabling more precise demand forecasting and load balancing across shifts.

In facilities using PROFIBUS DP or PROFINET IO communication backbones, the OS30AJ12’s status can be integrated into the plant-wide SCADA or MES layer via gateway modules such as the ABB CI840A fieldbus adapter, allowing energy managers to monitor disconnect states alongside drive efficiency data and motor runtime hours from a single dashboard. This level of visibility is foundational to any ISO 50001-aligned maintenance planning program.

On the human-machine interface side, operators interact with the system through ABB CP600 series HMI panels, which display real-time energy flow diagrams, motor load trends, and disconnect status maps. When the OS30AJ12 is opened for maintenance, the HMI immediately reflects the change, preventing accidental restart commands from propagating to the isolated branch — a critical safety and energy-waste prevention feature in high-throughput lines.

Maintenance and Replacement Notes

Consider a mid-scale automotive parts stamping facility running three shifts. During the second-shift changeover, conveyors, hydraulic power units, and auxiliary cooling fans remain energized for an average of 22 minutes beyond their operational need — purely due to the absence of a structured de-energization protocol. By integrating the OS30AJ12 into each motor branch circuit and linking its open/close state to the ABB AC500 PLC’s shift-end routine, the facility can automate the sequential isolation of non-critical loads within 90 seconds of shift completion. Across a 250-day operating year, this single change can reduce standby operating load by 8–14% on affected circuits.

In food and beverage processing lines, where washdown cycles require full electrical isolation of conveyor drives and mixing motor circuits, the OS30AJ12’s Class J fuse coordination ensures that fault currents are interrupted before upstream breakers trip, preserving line availability and reducing nuisance downtime. When paired with an ABB ACS580 drive running a pump motor at variable speed, the OS30AJ12 provides the hard isolation point that allows maintenance teams to safely service the pump seal without de-energizing the entire distribution panel — reducing maintenance windows from 45 minutes to under 15 minutes per event.

Predictive maintenance integration is another key value driver. By monitoring the contact wear indicators on the OS30AJ12 and correlating switching frequency data — logged via the ABB AC500 PLC — with motor runtime hours from the connected ACS Series drive, maintenance planners can schedule disconnect replacement during planned downtime rather than reacting to unexpected failures. This shift from reactive to predictive maintenance directly reduces unplanned downtime costs and extends the operational life of the broader motor control system.

Every OS30AJ12 unit supplied by ZYPLC is sourced from verified ABB distribution channels, undergoes pre-shipment functional testing, and is backed by a warranty terms confirmed during quotation. Stock is maintained for fast dispatch, with global shipping available to support urgent MRO and project procurement requirements.
