ABB P-HA-RPS-FAN03000 Cooling Fan for Advant

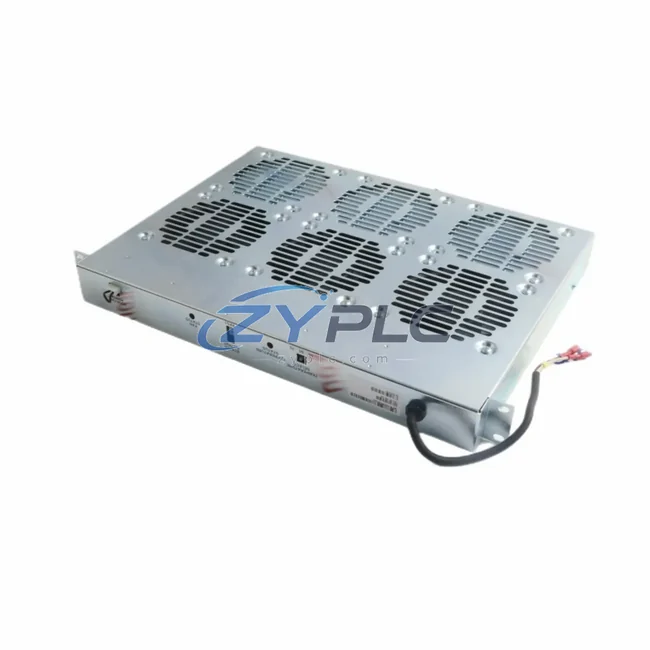

ABB P-HA-RPS-FAN03000 Cooling Fan Module for Advant Automation

The ABB P-HA-RPS-FAN03000 is a high-efficiency cooling fan module engineered for the ABB Advant Distributed Control System (DCS) platform. In modern industrial automation environments, thermal management is a direct lever for energy efficiency — uncontrolled heat buildup forces redundant cooling cycles, accelerates component degradation, and increases unplanned downtime. The P-HA-RPS-FAN03000 addresses these challenges by delivering precision airflow control within the Advant controller chassis, ensuring that power electronics, processor boards, and I/O modules operate within their optimal thermal envelope at all times.

By maintaining stable operating temperatures, this fan module directly reduces the energy overhead associated with thermal compensation in adjacent systems. When cabinet temperatures are controlled, variable frequency drives such as the ABB ACS880 series can sustain higher efficiency ratings without derating, and servo drives like the ABB MicroFlex e190 maintain consistent torque output without thermal throttling. The result is a measurable reduction in total system power consumption across the production line.

Product Specification Table

System Compatibility and Application

The P-HA-RPS-FAN03000 operates as a foundational thermal management component within a broader industrial automation system. In a typical Advant-based control system, the ABB DSQC 661 processor module and ABB DSDI 110A digital input modules generate continuous heat loads that must be dissipated efficiently to prevent CPU throttling and I/O scan cycle degradation. The fan module ensures that these components sustain their rated cycle times, directly supporting production line throughput.

On the drive side, the ABB ACS580 general-purpose variable frequency drive and ABB ACH580 HVAC drive both benefit from stable ambient temperatures within the control cabinet. When cabinet thermal conditions are well-managed, these drives operate closer to their IE4-equivalent efficiency curves, reducing motor load by maintaining optimal slip and flux control. The ABB ACSM1 motion control drive, often used in precision servo applications alongside the Advant platform, similarly avoids efficiency losses caused by thermal derating.

For condition monitoring and data feedback, the ABB B23 energy meter and ABB M2M DMTME multifunction power meter are commonly integrated into Advant-based panels to provide real-time power consumption data. When the P-HA-RPS-FAN03000 maintains stable thermal conditions, the variance in power readings from these meters decreases — making it easier for maintenance planning systems to identify genuine inefficiencies rather than thermal-induced fluctuations.

Communication integrity is equally important. The ABB CI854A PROFIBUS DP communication interface module, frequently deployed in Advant AC 450 systems, requires stable operating temperatures to maintain deterministic fieldbus cycle times. Thermal instability can introduce jitter in PROFIBUS DP communication, leading to false fault signals and unnecessary drive shutdowns. The P-HA-RPS-FAN03000 eliminates this risk by keeping the CI854A and adjacent modules within their specified thermal operating range.

On the power supply side, the ABB P-HA-RPS-DC01 redundant power supply module — a direct companion unit in the Advant RPS chassis — operates in close proximity to the fan module. Efficient cooling of the power supply section reduces capacitor stress and extends mean time between failures (MTBF), which is a key factor in reducing maintenance costs and unplanned production stops.

Maintenance and Replacement Notes

In continuous process industries such as pulp and paper, chemical processing, and water treatment, the ABB Advant DCS platform manages hundreds of control loops simultaneously. Each control loop — whether regulating pump speed via a variable frequency drive, modulating a control valve, or managing a conveyor motor — generates heat as a byproduct of its switching and processing activity. Without adequate thermal management, the cumulative heat load within a DCS cabinet can cause processor scan times to increase, I/O response latency to grow, and drive efficiency to drop.

The P-HA-RPS-FAN03000 directly addresses this by providing consistent, reliable airflow across the Advant RPS (Redundant Power Supply) section. In practical terms, this means that production lines can sustain higher equipment utilization rates — running closer to nameplate capacity without triggering thermal protection shutdowns. For a facility running three shifts, even a 1–2% improvement in equipment uptime translates to significant energy and productivity gains over an annual cycle.

From a predictive maintenance perspective, the fan module’s operational status is a leading indicator of cabinet health. Monitoring fan current draw and airflow output — through the Advant system’s built-in diagnostics or an external condition monitoring tool — allows maintenance teams to identify bearing wear or filter blockage before they escalate into thermal faults. This proactive approach reduces emergency maintenance costs and allows spare parts inventory to be managed on a planned basis rather than a reactive one.

Every unit of the P-HA-RPS-FAN03000 supplied by ZYPLC undergoes outgoing quality testing prior to shipment, verifying fan speed, current draw, and mechanical integrity. This ensures that the module performs to specification from the moment it is installed, avoiding the hidden energy costs associated with a degraded or underperforming cooling component. All units are backed by a warranty terms confirmed during quotation, with availability subject to RFQ confirmation for shipment arranged after confirmation to minimize production downtime.

Product Sourcing FAQ

Q1: How does the P-HA-RPS-FAN03000 contribute to operational stability in an Advant DCS system?
By maintaining optimal thermal conditions within the Advant controller chassis, the fan module prevents thermal derating of processors, I/O modules, and adjacent drives. This allows the entire control system to operate at its rated efficiency, reducing the energy overhead caused by thermal compensation and redundant cooling cycles in the surrounding cabinet environment.

Q2: Is the P-HA-RPS-FAN03000 compatible with all Advant controller variants?
The P-HA-RPS-FAN03000 is designed for the ABB Advant RPS (Redundant Power Supply) chassis, compatible with Advant Controller 400, 450, and related series. If you are unsure whether this module fits your specific cabinet configuration, please contact our technical team with your existing RPS unit model number for confirmation before ordering.

Q3: Can this fan module be used as a direct replacement for a failed unit without system reconfiguration?
Yes. The P-HA-RPS-FAN03000 is a direct replacement module. Installation is a mechanical swap within the RPS chassis — no software reconfiguration or parameter changes are required. It is recommended to perform the replacement during a planned maintenance window and to verify fan operation via the Advant system diagnostics after installation.

Q4: What quality testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Each P-HA-RPS-FAN03000 unit undergoes outgoing quality testing that verifies fan rotational speed, operating current, and mechanical condition. The warranty terms confirmed during quotation covers manufacturing defects and premature failure under normal operating conditions. Units that fail within the warranty period are replaced or refunded — contact plc.sales@zyplc.com with your order details to initiate a warranty claim.
