ABB PDD405A101 3BHE041626R0101 Exciter Control Module for UNITROL Systems

ABB PDD405A101 3BHE041626R0101 Industrial Network Interface for UNITROL Systems: Bridging Excitation Control to the Smart Factory Data Link

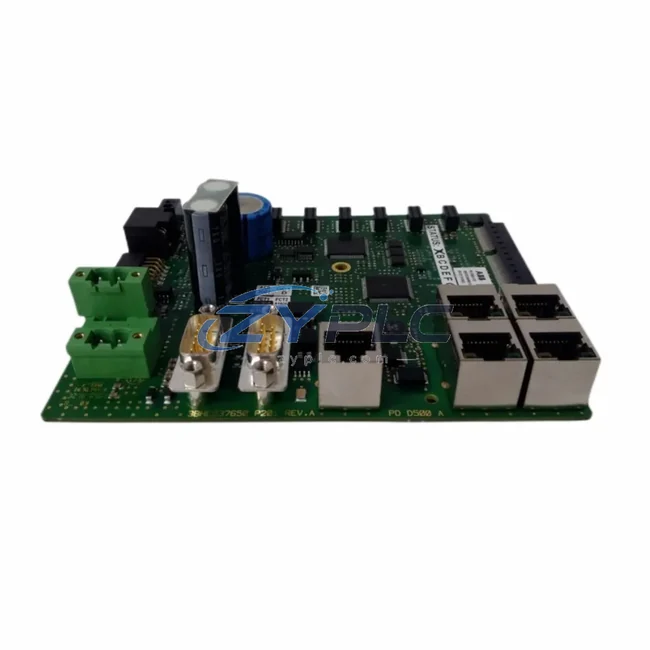

The ABB PDD405A101 (Part No. 3BHE041626R0101) is a high-performance exciter control module engineered for ABB’s UNITROL series of automatic voltage regulators (AVR) and excitation control systems. Designed to operate at the intersection of power generation, rotating machinery control, and industrial network communication, this module serves as a critical data link between field-level excitation hardware and upper-level supervisory systems including SCADA platforms, DCS controllers, and HMI workstations. With native support for PROFIBUS DP and Modbus TCP communication protocols, and compliance with IEC 61850 substation automation standards, the PDD405A101 enables seamless integration into modern smart factory and power plant automation architectures.

In industrial environments where generator excitation must be precisely monitored and controlled in real time, the PDD405A101 acts as the nerve center of the excitation data chain. It collects analog and digital signals from field sensors — including voltage transformers, current transformers, and temperature probes — converts them into structured digital data packets, and transmits them across the plant network to ABB’s AC800M PLC controllers or third-party DCS systems via PROFIBUS DP. Simultaneously, Modbus TCP connectivity allows integration with ABB Symphony Plus DCS platforms and industrial Ethernet networks, enabling real-time monitoring of excitation voltage, reactive power output, field current, and AVR operating mode from any networked HMI or SCADA node.

All units are pre-tested prior to shipment, backed by a warranty terms confirmed during quotation, and available for global delivery from availability subject to RFQ confirmation.

Compatibility & Integration Notes

Connected Automation Data Flow

The PDD405A101 sits at the heart of a layered industrial automation architecture. At the field level, it interfaces directly with excitation transformers, rotating diode assemblies, and field winding feedback circuits within the generator excitation system. These raw analog signals are digitized and conditioned by the module’s onboard signal processing unit before being forwarded upstream.

Via PROFIBUS DP, the PDD405A101 communicates with ABB AC800M process controllers, which serve as the primary PLC backbone in many power plant and heavy industrial installations. The AC800M aggregates excitation data alongside inputs from remote I/O modules such as the ABB S800 I/O series, enabling coordinated control of the entire generator unit from a single control node. In parallel, the module’s Modbus TCP port connects to plant-wide Ethernet infrastructure, feeding data to ABB Symphony Plus DCS operator stations and ABB Ability™ SCADA systems for real-time visualization of generator performance metrics.

For facilities running mixed-vendor environments, the PDD405A101 can also interface with third-party SCADA gateways and industrial protocol converters — such as those supporting DNP3 or IEC 60870-5-104 — enabling data exchange with energy management systems (EMS) and grid control centers. At the HMI layer, operators interact with excitation data through ABB CP600 HMI panels or web-based dashboards served by edge gateway devices, providing intuitive visualization of AVR mode, excitation current limits, and alarm states.

The data chain extends further to ABB Ability™ Asset Health Center for predictive maintenance analytics, where historical excitation trends from the PDD405A101 are analyzed alongside vibration data from shaft sensors and thermal data from stator winding RTDs. This end-to-end connectivity — from field sensor to cloud analytics — exemplifies the role of the PDD405A101 as a true industrial network interface within the smart factory ecosystem. Complementary modules in the UNITROL family, such as the ABB UNITROL 6800 AVR controller and the ABB PDD303A power interface board, work in concert with the PDD405A101 to deliver a fully integrated excitation control and monitoring solution.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in power generation and heavy industrial facilities is the fragmentation of control data across incompatible systems. Legacy excitation controllers often operate on proprietary serial protocols that cannot natively communicate with modern Ethernet-based DCS or SCADA platforms, creating data silos that impede real-time visibility and remote diagnostics.

The ABB PDD405A101 directly addresses this problem by acting as a multi-protocol industrial network interface. Its simultaneous support for PROFIBUS DP and Modbus TCP eliminates the need for external protocol converters in most ABB-centric installations, reducing network complexity and potential points of failure. For sites where IEC 61850 compliance is mandated — such as utility substations and grid-connected power plants — the module’s IEC 61850 support ensures interoperability with protection relays, bay controllers, and substation automation systems from multiple vendors.

Remote monitoring and diagnostics are significantly enhanced through the PDD405A101’s network connectivity. Maintenance engineers can access real-time excitation parameters, fault logs, and AVR operating history from remote SCADA workstations without requiring physical access to the control panel. This capability is particularly valuable for unmanned or remotely operated power stations, where rapid fault identification and response can prevent costly unplanned outages.

Production line transparency is further improved through integration with MES and ERP systems via OPC-UA gateways, allowing plant managers to correlate generator performance data with production schedules and energy consumption reports. System expansion is straightforward: the PDD405A101’s standard PROFIBUS DP and Modbus TCP interfaces allow additional I/O modules, drives, and monitoring devices to be added to the network without architectural redesign, supporting phased smart factory upgrades and capacity expansions.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB PDD405A101 (3BHE041626R0101) support, and are they compatible with third-party SCADA systems?
The PDD405A101 supports PROFIBUS DP, Modbus TCP, and IEC 61850. These are open, internationally standardized protocols widely supported by SCADA platforms from Siemens, Schneider Electric, GE, and other vendors, ensuring broad system compatibility beyond ABB-native environments.

Q2: What is the typical communication latency for real-time excitation data transmission via PROFIBUS DP?
PROFIBUS DP on the PDD405A101 operates at up to 12 Mbit/s, delivering cycle times typically in the range of 1–10 ms depending on network configuration and number of nodes. This is well within the requirements for real-time AVR control and generator protection applications.

Q3: How is network stability ensured in high-EMI power generation environments?
The PDD405A101 is designed to ABB’s industrial-grade EMC standards, with shielded interface connectors and onboard filtering to suppress electromagnetic interference common in generator halls and switchgear rooms. PROFIBUS DP cabling with proper shielding and termination further ensures signal integrity across the network.

Q4: What does the warranty terms confirmed during quotation cover, and is pre-shipment testing performed?
Every PDD405A101 unit undergoes functional and communication verification testing prior to shipment, confirming protocol operation, I/O integrity, and module initialization. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions, with technical support available throughout the warranty period. For RFQ and availability, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691.
