ABB PFEA111-65 Tension Measurement Unit | PFEA Series

ABB PFEA111-65 3BSE028140R0065: Industrial Data Link for Smart Factory Tension Control

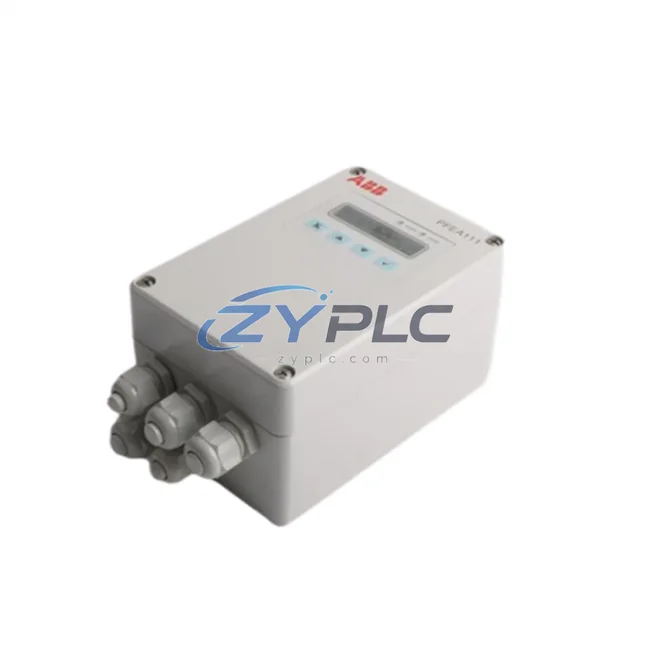

The ABB PFEA111-65 (catalog reference 3BSE028140R0065) is a high-precision Tension Measurement Unit engineered for demanding industrial environments where accurate web tension monitoring and seamless network communication are mission-critical. As part of ABB’s proven PFEA Series, this unit bridges the gap between field-level tension sensors and upper-level control systems — including PLCs, SCADA platforms, HMI panels, and MES infrastructure — delivering real-time process data across the full automation hierarchy.

In modern smart factories, data isolation between field devices and supervisory systems remains one of the most persistent challenges. The PFEA111-65 addresses this directly by integrating tension measurement with industrial communication protocols, enabling continuous, low-latency data flow from the sensor layer to the control room. Whether deployed in paper mills, printing lines, metal processing, or textile manufacturing, this unit ensures that tension values are always available where decisions are made.

Compatibility & Integration Notes

Connected Automation Data Flow

The PFEA111-65 sits at the heart of a layered industrial communication architecture. At the field level, load cells and tension sensors — such as ABB’s PFCL201 and PFCL301 series force transducers — feed raw mechanical signals into the PFEA111-65’s amplifier and conditioning circuitry. The unit processes these signals and converts them into calibrated tension values, which are then transmitted upstream via PROFIBUS DP to the plant’s primary control infrastructure.

In a typical installation, the PFEA111-65 connects directly to an ABB AC500 PLC or a compatible Siemens S7-300/400 controller acting as the PROFIBUS master. The PLC uses the real-time tension data to execute closed-loop control algorithms — adjusting dancer roll positions, brake torque, or drive speed references on connected ABB ACS880 variable frequency drives or ACS580 drives to maintain precise web tension throughout the production process. This tight integration between the PFEA111-65 and the drive layer eliminates tension fluctuations that would otherwise cause web breaks, registration errors, or product defects.

At the supervisory level, tension data from the PFEA111-65 flows through the PROFIBUS network into SCADA systems such as ABB System 800xA or third-party platforms like Wonderware InTouch and Ignition SCADA. Operators at HMI panels — including ABB CP600 series or Siemens TP700 Comfort panels — can monitor live tension curves, set alarm thresholds, and review historical trend data without interrupting production. The PFEA111-65 also supports diagnostic data transmission, allowing maintenance teams to detect sensor drift, cable faults, or amplifier anomalies remotely before they escalate into unplanned downtime.

For facilities implementing edge computing strategies, the PFEA111-65’s PROFIBUS output can be aggregated by an industrial edge gateway — such as the ABB Ability Edge or a Moxa MGate PROFIBUS-to-Ethernet gateway — enabling data forwarding to cloud-based MES or ERP platforms via OPC-UA or MQTT. This architecture supports the full IIoT data chain: from the tension sensor on the machine frame, through the PFEA111-65 amplifier, across the PROFIBUS segment, into the PLC, up to the SCADA server, and finally to enterprise dashboards for production KPI monitoring.

Remote I/O modules, such as the ABB S900 remote I/O series, can be integrated alongside the PFEA111-65 to extend the network’s reach to distributed measurement points across large production lines, ensuring that every tension zone is monitored and controlled from a single unified control platform.

Solving Data Isolation in Industrial Sites

Many industrial facilities still operate with fragmented automation islands — tension controllers that cannot communicate with PLCs, drives that lack network visibility, and SCADA systems that receive no real-time process feedback from the web handling line. The ABB PFEA111-65 directly resolves these data isolation challenges by providing a standardized PROFIBUS DP interface that integrates tension measurement into the plant’s existing network backbone without requiring proprietary gateways or custom protocol converters.

By replacing standalone analog tension controllers with the PFEA111-65, manufacturers gain full process transparency: every tension setpoint, actual value, alarm condition, and diagnostic event is visible in real time on the SCADA and HMI layer. This transparency enables production engineers to identify tension drift trends before they cause quality defects, reducing scrap rates and improving overall equipment effectiveness (OEE).

The PFEA111-65 also simplifies system expansion. As production lines grow — adding new web zones, converting to wider material widths, or integrating additional drive axes — the PROFIBUS network can be extended with additional PFEA111-65 units or complementary PFEA112 dual-channel amplifiers without redesigning the control architecture. Each new node simply joins the existing PROFIBUS segment, and the PLC master automatically recognizes it through GSD file configuration.

For remote sites or multi-plant operations, the PROFIBUS data aggregated from PFEA111-65 units can be forwarded via industrial Ethernet switches — such as the ABB Ethernet Switch ES series — to centralized monitoring centers, enabling remote diagnostics, parameter adjustment, and predictive maintenance scheduling without dispatching on-site engineers. Every unit shipped from our inventory undergoes pre-delivery functional testing and communication verification, ensuring plug-and-play readiness upon arrival.

Industrial Connectivity FAQ

Q1: What is the communication latency of the PFEA111-65 on a PROFIBUS DP network?
The PFEA111-65 supports PROFIBUS DP cyclic data exchange with typical update rates of 1–10 ms depending on network configuration and the number of slaves on the segment. This ensures that tension values are available to the PLC master in real time, supporting fast closed-loop control responses for high-speed web handling applications.

Q2: Is the PFEA111-65 compatible with non-ABB PROFIBUS masters, such as Siemens S7 or Schneider Modicon PLCs?
Yes. The PFEA111-65 is a standard PROFIBUS DP slave device and is compatible with any PROFIBUS DP master that supports GSD file-based configuration. This includes Siemens S7-300/400/1500 series, Schneider Modicon M340/M580, Rockwell ControlLogix with PROFIBUS scanner cards, and other third-party PROFIBUS masters.

Q3: How does the PFEA111-65 support network stability in electrically noisy industrial environments?
The PFEA111-65 is designed to ABB’s industrial EMC standards, with shielded signal inputs and robust PROFIBUS transceiver circuitry that maintains reliable communication in environments with significant electrical noise from variable frequency drives, welding equipment, and high-current switching devices. Proper cable shielding and termination practices, as outlined in the PFEA Series installation manual, further ensure network stability.

Q4: What warranty and post-sale support is provided with the PFEA111-65?
Every ABB PFEA111-65 unit supplied by ZYPLC includes a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes outgoing quality inspection and communication function verification. Our technical team provides pre-sales configuration support and post-sales troubleshooting assistance to ensure successful integration into your automation system.
