ABB PFSK152 3BSE018877R2 Signal Concentrator Board for ProControl P Systems

ABB PFSK152 3BSE018877R2: Industrial Data Link for ProControl P Smart Factory Networks

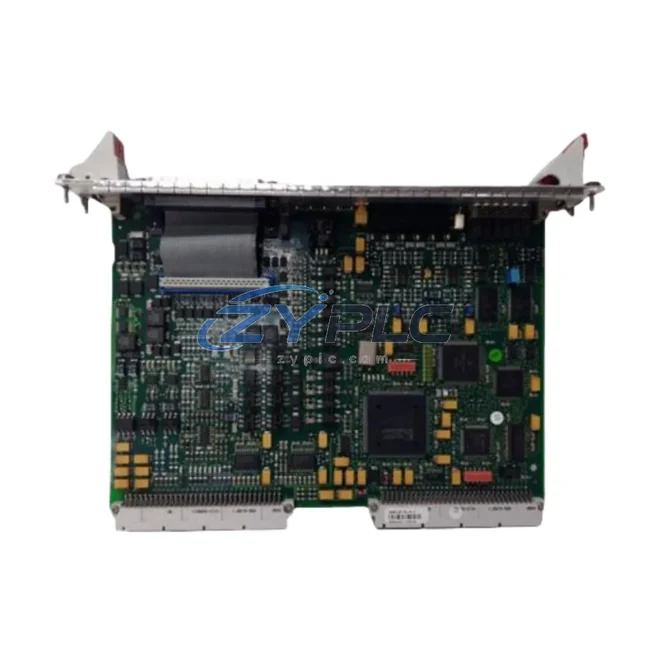

The ABB PFSK152 3BSE018877R2 is a high-performance Profibus Signal Concentrator Board engineered for ABB’s ProControl P Distributed Control System (DCS). Designed to serve as a critical industrial network interface, this module bridges field-level instrumentation with supervisory control layers, enabling seamless, real-time data exchange across complex automation architectures. In modern smart factory environments where data latency, protocol fragmentation, and network instability can halt production, the PFSK152 3BSE018877R2 delivers the communication backbone that keeps every layer of the control hierarchy synchronized and responsive.

At its core, the PFSK152 3BSE018877R2 functions as a Profibus DP signal concentrator, aggregating data streams from distributed field devices and channeling them into the ProControl P controller backplane with deterministic timing. Whether deployed in power generation, oil and gas processing, chemical manufacturing, or pulp and paper facilities, this board ensures that signal integrity is maintained from the sensor level all the way to the SCADA and HMI layers. Its role in the data chain is not merely passive aggregation — it actively manages bus arbitration, error detection, and cyclic data refresh to guarantee that the control system always operates on accurate, up-to-date process values.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated ProControl P installation, the PFSK152 3BSE018877R2 sits at the intersection of field instrumentation and the controller network, orchestrating data flow across multiple device classes. Field sensors — including pressure transmitters, flow meters, and temperature probes — connect to Profibus DP remote I/O stations such as the ABB S800 I/O modules, which in turn feed process values upstream through the PFSK152 concentrator board into the ProControl P controller backplane.

The ProControl P controller, paired with communication modules such as the ABB PFCB301 Profibus Controller Board and the ABB PFSK151 Signal Concentrator Board (the predecessor in the same series), relies on the PFSK152 to maintain bus cycle integrity when the number of field nodes expands beyond a single Profibus segment. This makes the PFSK152 3BSE018877R2 an essential component for system scaling — adding remote I/O racks, motor control centers, or intelligent field devices without disrupting the existing network topology.

On the drive side, variable frequency drives such as the ABB ACS880 series and ACS580 series communicate their speed references, torque feedback, and fault status over Profibus DP. The PFSK152 concentrates these drive data streams alongside process instrument signals, delivering a unified data picture to the ProControl P controller. This consolidated view is then passed upward to ABB System 800xA — the SCADA and DCS platform — where operators monitor real-time KPIs, configure alarm thresholds, and execute remote setpoint adjustments from the HMI workstations.

For facilities running hybrid network architectures, the PFSK152 3BSE018877R2 can coexist with ABB CI854 PROFIBUS DP Interface modules and ABB CI840A PROFIBUS DP Redundant Interface modules within the same System 800xA environment, allowing engineers to partition the Profibus network by process area while maintaining a single unified SCADA view. Edge gateway devices — such as industrial IoT gateways running OPC-UA — can tap into the data aggregated by the PFSK152 to push real-time process telemetry to cloud analytics platforms, enabling predictive maintenance and maintenance planning at the enterprise level.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial facilities is data isolation — the condition where field devices, controllers, and supervisory systems operate in disconnected silos, making it impossible to achieve true production transparency. The ABB PFSK152 3BSE018877R2 directly addresses this problem by serving as the Profibus aggregation point that unifies disparate field segments under a single, coherent data bus managed by the ProControl P DCS.

In plants where multiple generations of instrumentation coexist — older 4–20 mA analog devices alongside modern Profibus DP smart transmitters — the PFSK152 enables a phased migration strategy. Engineers can connect new Profibus-capable devices to the concentrator board while legacy analog signals are handled by conventional I/O modules elsewhere in the ProControl P rack, avoiding costly full-system replacements and minimizing production downtime during upgrades.

Remote monitoring and diagnostics are equally transformed by the PFSK152’s role in the data chain. Because the board maintains continuous Profibus bus health monitoring, fault conditions — such as a disconnected field device, a bus collision, or a degraded cable segment — are detected and reported to the ProControl P controller in real time. Operators viewing the System 800xA HMI receive immediate alarm notifications, and maintenance teams can use the diagnostic data to pinpoint the fault location without physically walking the production floor. This capability is especially valuable in hazardous environments such as offshore platforms, chemical reactors, and high-voltage substations where physical access is restricted.

System expansion is another area where the PFSK152 3BSE018877R2 proves its value. As production lines grow — adding new process units, integrating additional remote I/O racks, or connecting new intelligent field devices — the concentrator board provides the bus capacity headroom needed to accommodate these additions without requiring a controller replacement. This scalability protects the capital investment in the ProControl P platform and extends the operational life of the DCS infrastructure.

Every unit of the ABB PFSK152 3BSE018877R2 supplied by ZYPLC undergoes pre-shipment functional testing to verify Profibus communication integrity, backplane connector condition, and firmware version compatibility. Units are shipped with full anti-static packaging and are covered by a warranty terms confirmed during quotation, ensuring that your procurement team can source with confidence and your engineering team can install without risk.

Industrial Connectivity FAQ

Q1: What is the maximum Profibus DP transmission speed supported by the PFSK152 3BSE018877R2?
The PFSK152 3BSE018877R2 supports standard Profibus DP transmission rates up to 12 Mbit/s, consistent with the Profibus DP specification. The actual operating baud rate is determined by the ProControl P controller configuration and the cable length of the Profibus segment. For long-distance runs exceeding 200 meters, a baud rate of 1.5 Mbit/s or lower is recommended to maintain signal integrity.

Q2: Is the PFSK152 3BSE018877R2 compatible with both Profibus DP V0 and V1 devices?
Yes. The PFSK152 3BSE018877R2 supports both Profibus DP V0 (cyclic data exchange) and Profibus DP V1 (acyclic parameter access), making it compatible with a wide range of field devices including smart transmitters, intelligent motor starters, and Profibus-enabled variable frequency drives. This dual-version compatibility ensures that the ProControl P system can access both process values and device diagnostic parameters from a single bus interface.

Q3: Can the PFSK152 3BSE018877R2 be used in a redundant Profibus network configuration?
The PFSK152 3BSE018877R2 is designed for use within the ProControl P DCS architecture. For applications requiring Profibus DP redundancy, ABB recommends pairing the ProControl P system with redundant interface modules such as the ABB CI840A, which provides dual-channel Profibus DP communication. The PFSK152 concentrator board operates within the non-redundant segment of the bus topology and is best suited for process areas where single-channel Profibus DP communication meets the availability requirements.

Q4: What pre-shipment testing does ZYPLC perform on the PFSK152 3BSE018877R2, and what does the warranty terms confirmed during quotation cover?
Each PFSK152 3BSE018877R2 unit supplied by ZYPLC is tested for Profibus communication functionality, backplane connector integrity, and physical condition prior to shipment. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides replacement or repair support. For procurement inquiries, technical specifications, or lead time confirmation, contact our team at +86 19859288691 or plc.sales@zyplc.com.
