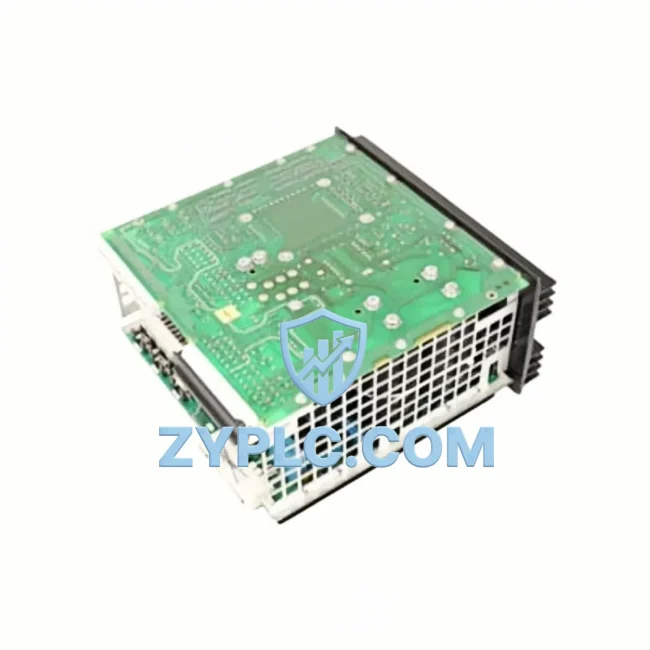

ABB PFVI131 3BSE007130R1 Industrial Network Interface for Advant AC450 Systems

ABB PFVI131 3BSE007130R1: Industrial Data Link Power Infrastructure for Advant AC450 Smart Factory Systems

The ABB PFVI131 3BSE007130R1 is a dedicated power supply module engineered for the ABB Advant Controller 450 (AC450) Distributed Control System — one of ABB’s most robust and widely deployed DCS platforms in process automation, power generation, and heavy industry. As the backbone power infrastructure of the AC450 rack, the PFVI131 does far more than convert and regulate voltage: it sustains the uninterrupted operation of every communication module, I/O processor, and network gateway within the controller chassis, making it a critical enabler of real-time industrial data flow across the entire automation architecture.

In a modern smart factory, data continuity is non-negotiable. From field-level sensors and actuators through to SCADA supervisory systems and MES platforms, every node in the automation chain depends on stable, conditioned power. The PFVI131 3BSE007130R1 provides exactly that — delivering clean, regulated DC power to the AC450 backplane so that communication modules such as the DSCS110 and DSCS130 Advant fieldbus interfaces can maintain continuous, low-latency data exchange with remote I/O stations, drives, and intelligent field devices.

Network Communication Table

Connected Automation Data Flow

The PFVI131 3BSE007130R1 sits at the heart of a layered industrial communication architecture. When the AC450 controller is powered and stabilized by the PFVI131, the DSMB175 MasterBus 300 communication module can reliably exchange process data with remote I/O clusters — including S800 I/O modules such as the AI810, AO810, and DI810 — distributed across the plant floor. These I/O nodes aggregate signals from temperature transmitters, pressure sensors, flow meters, and valve positioners, feeding real-time process values back through the MasterBus 300 network to the AC450 CPU for closed-loop control execution.

Simultaneously, the DSCS110 PROFIBUS DP master module — also powered through the AC450 backplane sustained by the PFVI131 — manages communication with variable frequency drives such as the ABB ACS800 and ACS880 series, enabling speed reference commands and drive status feedback to flow seamlessly between the DCS and the drive layer. This integration is essential in applications such as pump control, compressor regulation, and conveyor management, where precise speed and torque data must be synchronized with process control logic in real time.

At the supervisory level, the AC450 connects to ABB Industrial IT / System 800xA SCADA and HMI platforms via Ethernet-based OPC DA/UA gateways, with the PFVI131 ensuring the controller remains online and responsive. Operators at the 800xA Operator Workplace receive live process trends, alarm states, and diagnostic data — all of which depend on the uninterrupted power delivery that the PFVI131 provides to every communication slot in the rack. In facilities where the AC450 also interfaces with Modbus RTU devices — such as energy meters, gas analyzers, or third-party PLCs — the PFVI131’s stable power output prevents the communication timeouts and CRC errors that can disrupt Modbus polling cycles.

For edge connectivity and IIoT integration, the AC450 system can be paired with an ABB Edge Gateway or third-party industrial protocol converter to bridge legacy MasterBus 300 data into MQTT or OPC-UA streams destined for cloud analytics platforms. The PFVI131 3BSE007130R1 ensures the controller chassis remains energized and communicating throughout these data pipeline operations, supporting the full chain from field signal acquisition to cloud-level analytics.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation — legacy DCS controllers, standalone PLCs, proprietary fieldbus segments, and modern Ethernet-based systems that cannot natively exchange data. The ABB AC450 with PFVI131 addresses this directly: by maintaining stable power to multiple communication modules simultaneously, the PFVI131 enables the AC450 to act as a multi-protocol gateway hub, bridging MasterBus 300, PROFIBUS DP, and Modbus RTU segments within a single controller chassis.

This eliminates data silos between the process control layer and the energy management, safety, and production reporting systems. Plant managers gain full production line transparency through the 800xA SCADA interface, with real-time KPIs, OEE metrics, and alarm histories accessible from any authorized HMI terminal. Remote diagnostic capability is equally important: with the AC450 online and the PFVI131 sustaining its communication infrastructure, maintenance engineers can perform remote fault diagnosis, parameter adjustments, and firmware updates without requiring physical access to the control panel — reducing mean time to repair (MTTR) and minimizing unplanned downtime.

System expansion is straightforward: the AC450 rack architecture allows additional I/O and communication modules to be inserted without disrupting existing network segments, provided the PFVI131 power budget accommodates the additional load. For facilities planning phased automation upgrades, this modularity makes the PFVI131 3BSE007130R1 a long-term investment in scalable industrial connectivity.

Every PFVI131 3BSE007130R1 unit shipped by ZYPLC undergoes full functional testing — including power output verification, backplane communication integrity checks, and thermal stress screening — before dispatch. Stock is available for immediate shipment, and all units are covered by a 12-month warranty.

Industrial Connectivity FAQ

Q1: Does the PFVI131 3BSE007130R1 support hot-swap replacement in a live AC450 system?
A: The PFVI131 is designed for the AC450 rack architecture. Hot-swap capability depends on whether a redundant power supply module is installed in the same rack. In redundant configurations, the PFVI131 can typically be replaced without shutting down the controller, maintaining uninterrupted communication across all network segments. Single-supply configurations require a controlled shutdown. ZYPLC recommends consulting the AC450 hardware manual or contacting our technical team before performing live replacement.

Q2: Which communication protocols are supported when the PFVI131 is installed in the AC450?
A: The PFVI131 itself is a power supply module and does not process communication protocols directly. However, it powers the AC450 backplane, enabling protocol-specific modules — including MasterBus 300 (DSMB175), PROFIBUS DP (DSCS110), and Modbus RTU interfaces — to operate simultaneously. The AC450 can therefore support multi-protocol environments bridging field devices, drives, remote I/O, and SCADA systems concurrently.

Q3: How does ZYPLC ensure network stability after shipping the PFVI131 3BSE007130R1?
A: Each unit undergoes pre-shipment functional testing covering DC output voltage accuracy, ripple and noise levels, backplane load regulation, and communication slot power integrity. Units that fail any parameter are quarantined and not shipped. The 12-month warranty covers all verified hardware defects, and ZYPLC’s technical support team is available to assist with installation, configuration, and network integration queries post-delivery.

Q4: Can the PFVI131 be used in systems integrating third-party SCADA or HMI platforms?
A: Yes. The AC450 controller powered by the PFVI131 supports OPC DA/UA communication via Ethernet gateway modules, enabling integration with third-party SCADA platforms such as Wonderware InTouch, Ignition by Inductive Automation, and Siemens WinCC. HMI terminals from any vendor supporting OPC or Modbus TCP can connect to the AC450 network, with the PFVI131 ensuring the controller remains continuously powered and responsive throughout these integrations.
