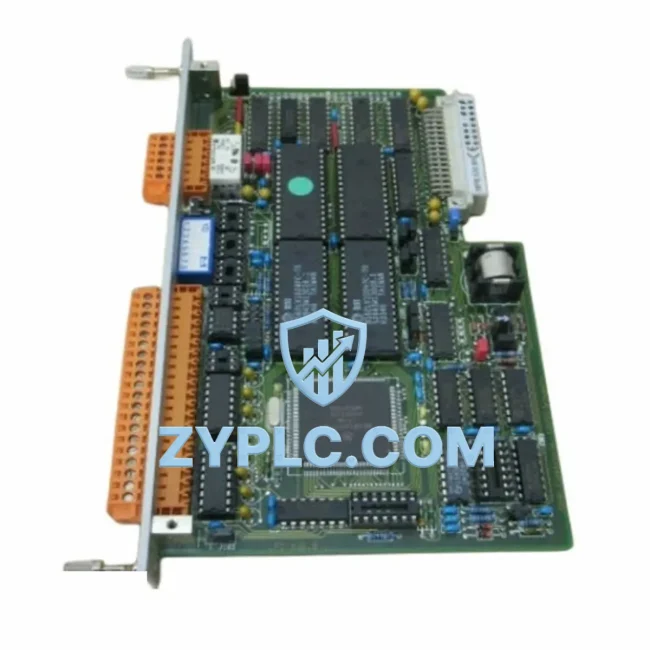

ABB PLM500-MPB-533-00 Industrial Network Interface for AC500 Systems

ABB PLM500-MPB-533-00 Industrial Network Interface for AC500 Systems: Bridging the Industrial Data Link

The ABB PLM500-MPB-533-00 is a high-performance serial interface board engineered to serve as the critical communication backbone between field-level devices and upper-level control and monitoring systems in modern smart factory environments. Designed specifically for integration with the ABB AC500 PLC platform, this module enables seamless PROFIBUS DP and Modbus RTU/TCP protocol bridging, ensuring that data flows reliably from sensors and actuators on the plant floor all the way to SCADA dashboards and MES platforms without interruption or data loss.

In today’s industrial landscape, the ability to connect heterogeneous devices — from legacy serial instruments to modern Ethernet-based controllers — is no longer optional. The PLM500 MPB.533.00 addresses this challenge head-on by providing a robust, deterministic communication path that supports real-time data acquisition, protocol conversion, and network-level diagnostics. Whether deployed in discrete manufacturing, process automation, or energy management applications, this interface board delivers the connectivity performance that industrial engineers demand.

Network Communication Table

Connected Automation Data Flow

The ABB PLM500-MPB-533-00 sits at the heart of a layered industrial communication architecture. At the field level, distributed sensors — including pressure transmitters, flow meters, and temperature probes — transmit raw process values over PROFIBUS DP to the ABB AC500 CPU modules such as the PM573-ETH or PM591. The PLM500-MPB-533-00 acts as the interface board that bridges these field signals into the AC500 backplane, making them immediately available for ladder logic processing and PID control loops.

On the Modbus side, the module enables the AC500 controller to communicate with third-party devices such as ABB ACS880 variable frequency drives, UMC100 motor management units, and CM589-PNIO PROFINET communication modules, all of which support Modbus RTU as a secondary protocol. This cross-protocol capability eliminates the need for standalone protocol converters and reduces panel wiring complexity significantly.

Moving up the automation pyramid, the PLM500-MPB-533-00 facilitates data handoff to ABB CP600 HMI panels and Zenon SCADA or ABB Ability™ System 800xA platforms via the AC500’s Ethernet port. Operators gain real-time visibility into production KPIs, alarm states, and energy consumption metrics without any manual data entry. Remote I/O modules such as the ABB TB521-ETH can be daisy-chained through the PROFIBUS segment managed by this interface board, extending the network reach across large plant floors without signal degradation.

For edge computing and IIoT integration, the data collected through the PLM500-MPB-533-00 can be forwarded via the AC500’s OPC UA server to cloud analytics platforms or on-premise MES systems, enabling predictive maintenance algorithms and production scheduling optimization. The entire data chain — from field sensor to enterprise dashboard — is anchored by the reliable, low-latency communication that this serial interface board provides.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of multiple communication protocols across different generations of equipment. A typical plant may have legacy Modbus RTU devices installed alongside newer PROFIBUS DP nodes and Ethernet-based controllers, creating data silos that prevent unified monitoring and control. The ABB PLM500-MPB-533-00 directly addresses this fragmentation by providing a single, unified interface that speaks both PROFIBUS and Modbus natively within the AC500 ecosystem.

Production line transparency is another area where this module delivers measurable value. By ensuring that every field device — whether a conveyor motor drive, a pneumatic valve positioner, or a remote temperature sensor — is continuously reporting its status to the central PLC and SCADA system, plant managers gain the real-time visibility needed to detect bottlenecks, predict failures, and optimize throughput. Alarm events generated at the field level are propagated through the PROFIBUS segment managed by the PLM500-MPB-533-00 and surfaced on the HMI within milliseconds, enabling rapid operator response.

System scalability is built into the design philosophy of this interface board. As production capacity grows, additional PROFIBUS DP slave nodes can be added to the network segment without requiring changes to the master PLC configuration, provided the total node count and cable length remain within PROFIBUS DP specifications. This plug-and-expand architecture significantly reduces the engineering effort and downtime associated with system upgrades. Remote diagnostics capabilities further reduce maintenance costs by allowing engineers to interrogate device status, read diagnostic bytes, and perform parameter adjustments from the SCADA workstation without dispatching technicians to the field.

Industrial Connectivity FAQ

Q1: What is the communication latency of the ABB PLM500-MPB-533-00 in a PROFIBUS DP network?
The PLM500-MPB-533-00 supports PROFIBUS DP cyclic data exchange with deterministic latency typically in the range of 1–10 ms depending on the number of slave nodes and the configured baud rate (up to 12 Mbps). This ensures that time-critical control loops in the AC500 PLC receive fresh field data within every scan cycle, maintaining process stability and control accuracy.

Q2: Is the PLM500-MPB-533-00 compatible with third-party PROFIBUS DP masters and Modbus devices?
Yes. The module conforms to the PROFIBUS DP V0/V1 standard and supports standard GSD file-based configuration, making it interoperable with PROFIBUS masters from Siemens, Schneider Electric, and other vendors. On the Modbus side, it supports both RTU and TCP variants, enabling connectivity with a wide range of third-party drives, meters, and sensors that use Modbus as their primary protocol.

Q3: How is network stability ensured in electrically noisy industrial environments?
The PLM500-MPB-533-00 is designed to meet industrial EMC standards, with galvanic isolation on the serial communication ports to protect against ground loops and transient voltage spikes common in motor-driven environments. PROFIBUS DP cable shielding best practices, combined with the module’s built-in termination resistor support, ensure signal integrity even in high-noise environments such as those found near large VFDs or welding equipment.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every ABB PLM500-MPB-533-00 unit supplied by ZYPLC undergoes functional verification testing prior to shipment, including communication protocol handshake tests and power-on diagnostics. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides post-sale support for configuration guidance, GSD file setup, and integration troubleshooting to ensure your system is operational as quickly as possible.
