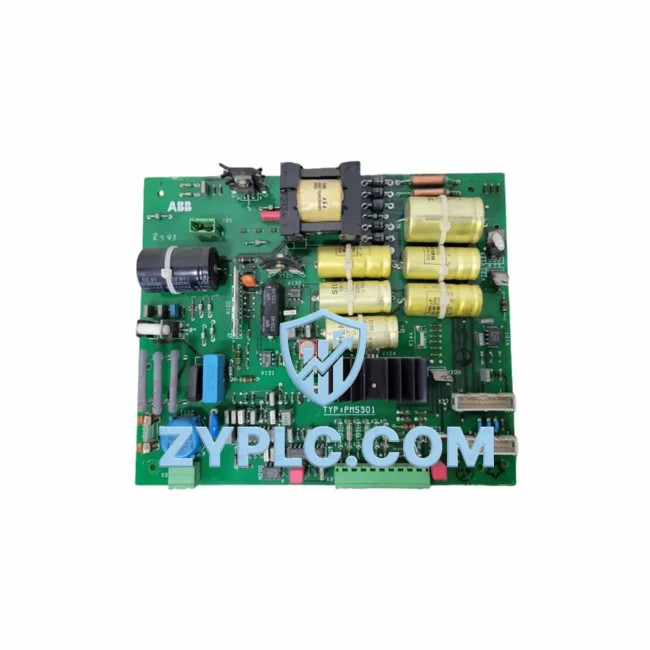

ABB PM5301 Industrial Network Interface for ACS800 Systems

ABB PM5301 Industrial Network Interface for ACS800 Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices, drive systems, and supervisory platforms is no longer optional — it is the foundation of operational efficiency. The ABB PM5301 is a high-performance communication module engineered specifically for the ACS800 series of AC drives, enabling reliable protocol conversion, real-time data exchange, and deep integration across industrial automation networks. Whether deployed in a standalone drive application or embedded within a multi-axis motion control architecture, the PM5301 serves as the critical link between the drive layer and the control, monitoring, and diagnostic layers of a connected factory.

Sourced directly from ABB’s industrial automation portfolio and available in verified stock at ZYPLC, the PM5301 is backed by a 12-month warranty, pre-shipment functional testing, and global logistics support — ensuring that your production line stays connected and your procurement timeline stays on track.

Network Communication Table

Connected Automation Data Flow

The PM5301’s role in an industrial network begins at the signal acquisition layer. Field sensors — including ABB’s own process transmitters and encoder feedback units — feed real-time analog and digital signals into the ACS800 drive. The PM5301 module, mounted directly onto the drive’s control board slot, captures this data and translates it into structured fieldbus messages that can be consumed by upstream control systems.

In a typical PROFIBUS-DP architecture, the PM5301 paired with the RPBA-01 PROFIBUS adapter allows the ACS800 to appear as a standard DP slave on the network. A Siemens S7 or ABB AC500 PLC acting as the DP master can then read drive speed references, torque feedback, fault codes, and energy consumption data in real time — all without custom wiring or proprietary gateways. For DeviceNet environments, the RDNA-01 DeviceNet adapter fulfills the same role, enabling seamless integration with Allen-Bradley ControlLogix or CompactLogix platforms.

When the application demands Ethernet-level connectivity, the RETA-01 Ethernet adapter extends the ACS800’s communication reach into EtherNet/IP and Modbus TCP networks. This is particularly valuable in facilities where SCADA systems — such as Wonderware, Ignition, or ABB’s own System 800xA — require high-speed, low-latency access to drive parameters for process visualization and alarm management. The PM5301 ensures that the drive’s internal data bus remains synchronized with these upper-layer systems, maintaining data integrity across the entire communication chain.

For multi-drive applications, the PM5301 supports ABB’s DDCS (Distributed Drives Communication System) fiber optic ring topology. In this configuration, multiple ACS800 drives — along with master controllers such as the RMIO-01C control board and the RINT-5611C DDCS interface — are linked in a high-speed optical ring. The CDP312R control panel can be used for local parameter access and diagnostics, while the DDCS ring carries cyclic process data between drives and the master PLC at microsecond cycle times. This architecture is common in paper mills, metal processing lines, and large-scale conveyor systems where coordinated multi-drive motion is essential.

At the edge of the network, industrial IoT gateways — such as ABB Edge Computing devices or third-party Moxa or Advantech edge gateways — can subscribe to the PM5301’s data stream via Modbus TCP or OPC-UA bridges, forwarding production KPIs to cloud-based MES or ERP platforms. This closes the loop between the field device layer and enterprise-level data analytics, enabling predictive maintenance, energy optimization, and production transparency without disrupting the real-time control network.

Remote I/O expansion modules, such as the PM5350 and compatible ABB I/O extension units, can be integrated into the same network segment, allowing the ACS800 system to monitor auxiliary process variables — temperature, pressure, flow — alongside drive performance data. HMI terminals connected via PROFIBUS or Ethernet display this consolidated data to operators on the plant floor, while SCADA servers archive it for trend analysis and regulatory reporting.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of legacy and modern communication protocols within the same facility. Older drives and PLCs may speak only Modbus RTU or proprietary serial protocols, while newer systems demand PROFIBUS, DeviceNet, or Ethernet-based connectivity. Without a capable communication interface at the drive level, these systems become data islands — unable to share operational status, fault history, or energy data with the broader automation network.

The ABB PM5301 directly addresses this challenge. By supporting multiple fieldbus protocols through interchangeable adapter modules, it allows the ACS800 drive to participate in virtually any industrial network topology without hardware replacement. A facility upgrading from a legacy PROFIBUS network to EtherNet/IP can retain its existing ACS800 drives and simply swap the communication adapter — preserving capital investment while gaining modern connectivity.

Remote monitoring and diagnostics are equally critical in distributed industrial sites. With the PM5301 enabling live drive data on the SCADA network, maintenance engineers can monitor motor current, output frequency, DC bus voltage, and fault registers from a central control room — or even remotely via VPN — without dispatching technicians to the field. Alarm thresholds configured in the SCADA system trigger immediate notifications when drive parameters exceed safe operating limits, enabling proactive intervention before equipment failure occurs.

Production line transparency is another key benefit. When every drive on a conveyor system, pump station, or compressor rack reports its status through a unified network, production managers gain a real-time view of throughput, energy consumption, and equipment health. This data feeds continuous improvement initiatives, supports ISO 50001 energy management compliance, and provides the audit trail required for quality certification in regulated industries.

System scalability is built into the PM5301’s architecture. As production capacity grows, additional ACS800 drives can be added to the DDCS ring or PROFIBUS segment without reconfiguring the existing network. The modular adapter design means that communication protocol changes — driven by new equipment purchases or network standardization projects — can be implemented at the drive level without affecting the control program or SCADA configuration.

Industrial Connectivity FAQ

Q1: What is the communication latency of the PM5301 in a PROFIBUS-DP network?
In a standard PROFIBUS-DP configuration with the RPBA-01 adapter, the PM5301 achieves cyclic data exchange at baud rates up to 12 Mbit/s. Typical cycle times for a 32-node network are in the range of 1–5 ms, which is well within the requirements of most drive control and process monitoring applications.

Q2: Is the PM5301 compatible with both legacy ACS800 hardware revisions and current production units?
Yes. The PM5301 is designed to be compatible across the ACS800 series product family, including early hardware revisions. It is recommended to verify the drive’s firmware version against ABB’s compatibility matrix prior to installation. ZYPLC’s technical team can assist with compatibility verification before shipment.

Q3: How does the PM5301 maintain network stability in high-EMI industrial environments?
The PM5301 uses ABB’s DDCS fiber optic interface for inter-drive communication, which is inherently immune to electromagnetic interference. For copper-based fieldbus connections (PROFIBUS, DeviceNet, Modbus), proper cable shielding, grounding, and termination resistors are essential. ABB’s installation guidelines for the ACS800 series provide detailed EMC compliance procedures that, when followed, ensure stable network operation in demanding industrial environments.

Q4: What does the 12-month warranty from ZYPLC cover, and how is it processed?
ZYPLC’s 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each PM5301 unit undergoes pre-shipment functional testing before dispatch. In the event of a warranty claim, ZYPLC provides replacement or repair support with expedited processing to minimize production downtime. Contact our team at plc.sales@zyplc.com or +86 19859288691 to initiate a warranty request.
