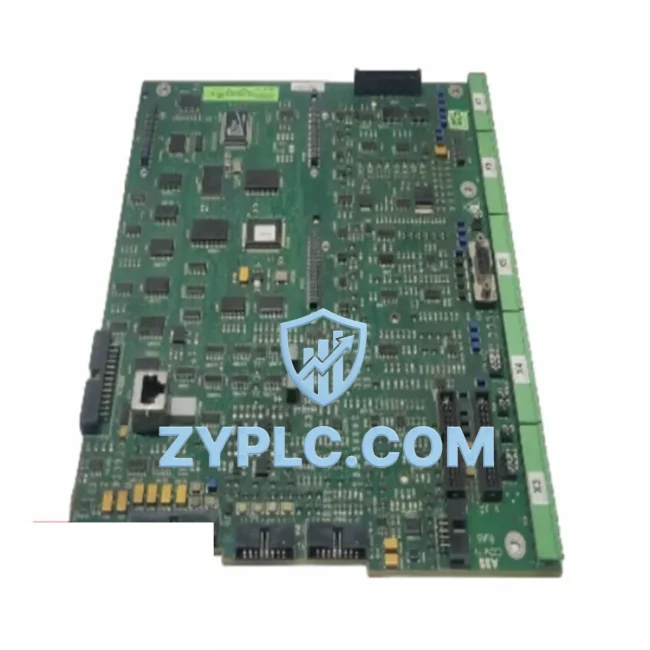

ABB PM554-RP-AC Industrial Network Interface for AC500 Systems

ABB PM554-RP-AC Industrial Network Interface for AC500 Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices and supervisory systems is no longer optional — it is the foundation of operational excellence. The ABB PM554-RP-AC is a high-performance CPU module within the renowned ABB AC500 PLC series, engineered to serve as a robust industrial network interface that connects field-level instrumentation, remote I/O modules, variable frequency drives, and HMI panels to upper-level SCADA platforms and MES systems. With native support for Modbus TCP and Modbus RTU over RS-485, the PM554-RP-AC delivers deterministic, low-latency communication across heterogeneous industrial networks — making it an indispensable component in any IIoT-ready automation architecture.

Whether deployed in discrete manufacturing, process control, water treatment, or building automation, the PM554-RP-AC provides the protocol conversion backbone that eliminates data silos and enables real-time visibility from sensor to cloud. Its dual-port Ethernet interface supports simultaneous programming and network communication, while the integrated RS-485 serial port enables legacy device integration without additional gateways. This combination of modern Ethernet connectivity and proven serial communication makes the PM554-RP-AC a versatile hub in multi-protocol industrial networks.

Network Communication Table

Connected Automation Data Flow

The PM554-RP-AC sits at the heart of a layered automation architecture, orchestrating data flow across every tier of the industrial network. At the field level, analog and digital signals from ABB ACS580 variable frequency drives and ABB ABB-ACS355 compact drives are transmitted via Modbus RTU over the RS-485 bus directly to the PM554-RP-AC’s serial port. Simultaneously, distributed ABB TU515 terminal units and ABB DC532 digital I/O modules within the AC500 I/O expansion rack exchange process data with the CPU over the internal S-Bus, ensuring sub-millisecond scan cycle performance for time-critical control loops.

On the Ethernet side, the PM554-RP-AC connects upstream to ABB CP635 HMI panels running real-time process visualization, where operators monitor production KPIs, alarm states, and trend data without latency. The same Ethernet port feeds live process values to a Wonderware System Platform SCADA or Ignition SCADA gateway via Modbus TCP polling, enabling plant-wide data aggregation and historian logging. For facilities requiring extended network reach, an industrial managed Ethernet switch — such as the Moxa EDS-308 or Hirschmann RS20 — provides ring topology redundancy, protecting against single-point network failures in harsh plant environments.

Where legacy field instruments communicate over PROFIBUS DP, the ABB CM572-DP PROFIBUS master module slots directly into the AC500 rack alongside the PM554-RP-AC, transparently bridging PROFIBUS device data into the Modbus TCP network without additional protocol converters. Similarly, ABB CI590-CS-HL CANopen interface modules extend the PM554-RP-AC’s reach to CANopen-based sensor networks and safety devices. This modular communication architecture means a single PM554-RP-AC installation can simultaneously manage Modbus, PROFIBUS, CANopen, and Ethernet/IP device ecosystems — a critical advantage in brownfield retrofit projects where multiple legacy protocols coexist.

At the edge computing layer, an industrial edge gateway — such as the Advantech WISE-5000 or Siemens SINEMA Remote Connect — aggregates Modbus TCP data from the PM554-RP-AC and forwards it to cloud analytics platforms via MQTT or OPC-UA, enabling predictive maintenance algorithms and energy consumption analytics without modifying the core PLC program. This end-to-end data chain — from field sensor through PM554-RP-AC to SCADA to cloud — represents the complete IIoT data pipeline that modern smart factories demand.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different equipment generations and vendors. A typical plant floor may simultaneously operate Modbus RTU devices installed in the 1990s, PROFIBUS DP networks from the 2000s, and modern Ethernet/IP devices — each forming an isolated data island that prevents unified monitoring and control. The ABB PM554-RP-AC directly addresses this challenge through its multi-protocol architecture and the AC500’s modular communication expansion system.

By centralizing protocol conversion within the PM554-RP-AC and its associated communication modules, plant engineers eliminate the need for standalone protocol gateways at every field device — reducing hardware costs, simplifying network topology, and minimizing potential failure points. All device data is normalized within the AC500’s unified memory map and made available to SCADA systems via a single Modbus TCP connection, transforming previously isolated device data into a coherent, queryable dataset.

Remote monitoring and diagnostics are equally transformed. With the PM554-RP-AC’s Ethernet connectivity, maintenance engineers can remotely access the PLC program via ABB Automation Builder over a VPN connection, perform online program modifications, monitor real-time variable states, and execute force commands — all without physical presence on the plant floor. Alarm conditions detected by field sensors are propagated through the PM554-RP-AC’s program logic to SCADA alarm management systems within one scan cycle, enabling sub-second alarm response times that protect both equipment and personnel.

Production line transparency is further enhanced through the PM554-RP-AC’s data logging capabilities. Process variables — including drive speeds, I/O states, temperature readings, and production counters — can be logged to the SCADA historian at configurable intervals, providing the historical dataset required for OEE analysis, quality traceability, and regulatory compliance reporting. As production requirements evolve, the AC500 platform’s modular I/O expansion — supporting up to 10,000 I/O points per CPU — ensures the PM554-RP-AC installation can scale without architectural redesign, protecting the initial automation investment over the full lifecycle of the plant.

Industrial Connectivity FAQ

Q1: What is the maximum Modbus TCP polling rate supported by the PM554-RP-AC, and will it introduce communication latency in fast control loops?
The PM554-RP-AC supports Modbus TCP communication with a minimum cycle time aligned to the PLC scan cycle, typically configurable from 1 ms to 100 ms depending on program complexity and I/O load. For time-critical control loops, it is recommended to use the internal S-Bus for AC500 I/O modules and reserve Modbus TCP for supervisory data exchange with SCADA/HMI systems, where polling intervals of 100–500 ms are standard and introduce no perceptible latency in process visualization.

Q2: Is the PM554-RP-AC compatible with third-party SCADA platforms such as Ignition, Wonderware, and Citect?
Yes. The PM554-RP-AC’s Modbus TCP server is fully compliant with the Modbus Application Protocol Specification V1.1b3, ensuring interoperability with any SCADA platform that includes a Modbus TCP driver — including Ignition by Inductive Automation, AVEVA Wonderware System Platform, Schneider Electric Citect SCADA, and GE iFIX. No proprietary driver or OPC server is required for basic Modbus TCP connectivity, simplifying integration and reducing licensing costs.

Q3: How does the PM554-RP-AC maintain network stability in electrically noisy industrial environments?
The PM554-RP-AC’s RS-485 port features galvanic isolation, protecting the CPU from ground loops and transient voltages common in motor-heavy environments. The Ethernet port supports auto-negotiation and auto-MDI/MDIX, and when connected through an industrial managed switch with RSTP/MSTP ring redundancy, network recovery times of under 50 ms are achievable following a cable or switch failure. ABB recommends shielded twisted-pair cabling for RS-485 runs exceeding 100 meters and the use of industrial-grade Ethernet switches rated to IEC 61850-3 for substation environments.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every PM554-RP-AC unit supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification including power-on testing, communication port validation (Ethernet and RS-485), and firmware version confirmation. Units are shipped in original or equivalent anti-static packaging via DHL Express or FedEx International Priority, with full tracking provided. Replacement or repair is arranged within the warranty period upon confirmation of the defect, with no additional logistics cost to the buyer.
