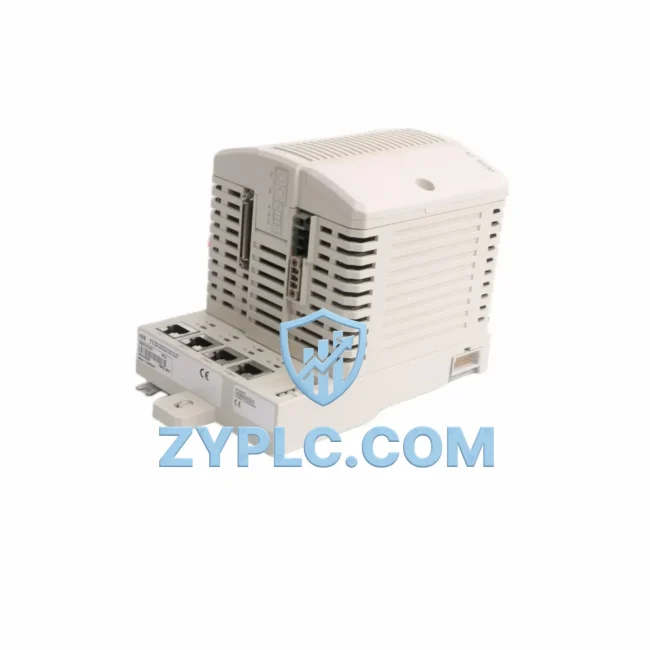

ABB PM861AK01 3BSE018157R1 Industrial Network Interface for AC800M Systems

ABB PM861AK01 3BSE018157R1 Industrial Network Interface for AC800M Systems: Bridging the Industrial Data Link in Smart Factory Environments

The ABB PM861AK01 (3BSE018157R1) is a high-performance DCS processor unit engineered for the AC800M controller series — one of ABB’s most widely deployed distributed control platforms in process automation, power generation, oil & gas, and advanced manufacturing. As the computational and communication core of the AC800M rack, the PM861AK01 serves as the central node in a layered industrial network architecture, managing real-time data exchange between field devices, control loops, and supervisory systems with deterministic precision.

In today’s smart factory landscape, the ability to move process data reliably from sensor to SCADA is not optional — it is the foundation of operational transparency. The PM861AK01 fulfills this role by acting as a protocol-aware gateway processor, coordinating signal acquisition from distributed I/O modules, executing control logic, and publishing live process variables to HMI and SCADA layers without latency-induced blind spots.

Network Communication Table

Connected Automation Data Flow

Understanding the PM861AK01’s role requires tracing the full data path from the plant floor to the control room. At the field level, process sensors — including pressure transmitters, flow meters, and temperature elements — connect to ABB S800 I/O modules (such as the AI810 analog input or DI810 digital input units) mounted on local I/O clusters. These modules communicate with the PM861AK01 over the high-speed ABB ModuleBus backplane, delivering raw process values into the processor’s execution environment at scan rates measured in milliseconds.

The PM861AK01 executes IEC 61131-3 control programs — including function block diagrams and structured text — and resolves control outputs back to AO810 analog output and DO810 digital output modules, which in turn drive actuators, control valves, and variable frequency drives on the process line. For installations requiring Profibus DP connectivity, the ABB CI854 Profibus DP communication interface module slots into the AC800M rack alongside the PM861AK01, extending the network reach to third-party field devices, remote I/O stations, and intelligent motor control centers.

At the supervisory layer, the PM861AK01 connects via Ethernet to the ABB System 800xA distributed control and information platform, where operators interact through 800xA HMI workstations and process graphics built on live OPC data subscriptions. Alarm management, trend logging, and event archiving are handled natively within 800xA, with the PM861AK01 acting as the authoritative data source for all process variables under its domain.

For plants integrating third-party SCADA systems — such as Wonderware, Ignition, or Siemens WinCC — the PM861AK01’s OPC DA/UA server capability allows seamless data publication without proprietary middleware. Edge gateway devices, including ABB Edge Connect or compatible industrial IoT gateways, can subscribe to OPC UA endpoints exposed by the AC800M controller, enabling cloud-based analytics, predictive maintenance dashboards, and digital twin synchronization.

In multi-controller architectures, the PM861AK01 participates in peer-to-peer data exchange with other AC800M controllers via the ABB Control Network (CN), a dedicated Ethernet segment that isolates control traffic from business network interference. This topology supports large-scale DCS installations where dozens of PM861AK01 units manage discrete process units — reactors, separators, compressor trains — while sharing setpoints, permissives, and interlock signals across controller boundaries in real time.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation. Legacy PLCs running proprietary serial protocols, standalone drives with vendor-specific parameter interfaces, and older SCADA systems locked to DDE data exchange create data silos that prevent unified operational visibility. The PM861AK01 addresses this directly through its multi-protocol communication architecture.

By deploying the PM861AK01 as the central processor in an AC800M rack equipped with appropriate communication interface modules, engineers can consolidate data from Profibus DP field segments, FOUNDATION Fieldbus H1 loops, and Modbus TCP device networks into a single, unified process database. This eliminates the need for standalone protocol converters and reduces the number of network hops between field devices and the SCADA historian — directly improving data latency and timestamp accuracy.

Remote monitoring is another area where the PM861AK01 delivers measurable value. Through the System 800xA remote diagnostic tools and OPC UA connectivity, maintenance engineers can interrogate controller health, review diagnostic buffers, and execute firmware-level diagnostics from centralized engineering workstations — without requiring physical access to the control cabinet. This capability is particularly valuable for offshore platforms, remote pipeline stations, and geographically distributed utility networks where on-site intervention carries significant cost and safety implications.

Production line transparency — the ability to see real-time KPIs, batch records, and equipment states across an entire facility — is achievable when the PM861AK01 is integrated with MES and ERP layers via OPC UA or REST API bridges. Downtime events captured by the controller’s event log can be automatically forwarded to maintenance management systems, closing the loop between field-level fault detection and work order generation without manual data entry.

System expansion is equally straightforward. The AC800M platform supports hot-standby redundancy configurations using paired PM861AK01 units with ABB SM811 synchronization modules, ensuring bumpless transfer during processor faults. Additional I/O capacity can be added by extending the S800 I/O cluster or deploying remote I/O via Profibus DP — all without modifying the core control program or interrupting production.

Every PM861AK01 unit supplied by ZYPLC undergoes pre-shipment functional verification, including power-on self-test, communication port validation, and firmware version confirmation. Units are shipped with full documentation and are covered by a 12-month warranty from the date of delivery, with in-stock availability supporting urgent project timelines and MRO replacement requirements globally.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB PM861AK01 support, and is it compatible with third-party SCADA systems?
The PM861AK01 natively supports OPC DA and OPC UA server functionality, enabling direct integration with any OPC-compatible SCADA platform including Wonderware InTouch, Ignition, Siemens WinCC, and GE iFIX. With the CI854 Profibus DP interface module, it also communicates with Profibus-based field devices and remote I/O. FOUNDATION Fieldbus H1 connectivity is available via the CI873 FF interface module.

Q2: How does the PM861AK01 handle network stability and communication redundancy?
The AC800M platform supports redundant Control Network configurations using dual Ethernet paths, ensuring that a single cable or switch failure does not interrupt controller-to-SCADA communication. For mission-critical applications, paired PM861AK01 units in hot-standby redundancy mode — synchronized via the SM811 module — provide sub-second failover with no process disturbance. The controller’s watchdog and self-diagnostic routines continuously monitor communication health and generate alarms on any detected anomaly.

Q3: Can the PM861AK01 be integrated into an existing DCS without replacing the entire control system?
Yes. The PM861AK01 is designed for both greenfield deployments and brownfield integration. In hybrid architectures, it can coexist with legacy controllers by acting as a gateway processor that aggregates data from older subsystems via Modbus TCP or serial Modbus RTU (using appropriate interface modules) and presents unified process data to the SCADA layer. This approach extends the operational life of existing field wiring and instrumentation while modernizing the control and data infrastructure.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
All PM861AK01 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment, covering hardware defects and communication port failures under normal operating conditions. Prior to dispatch, each unit undergoes a structured pre-shipment test protocol: power-on self-test (POST), Ethernet port link verification, backplane communication check, and firmware version confirmation against the order specification. Units failing any test criterion are quarantined and replaced before shipment, ensuring that every PM861AK01 arrives ready for immediate rack installation.
