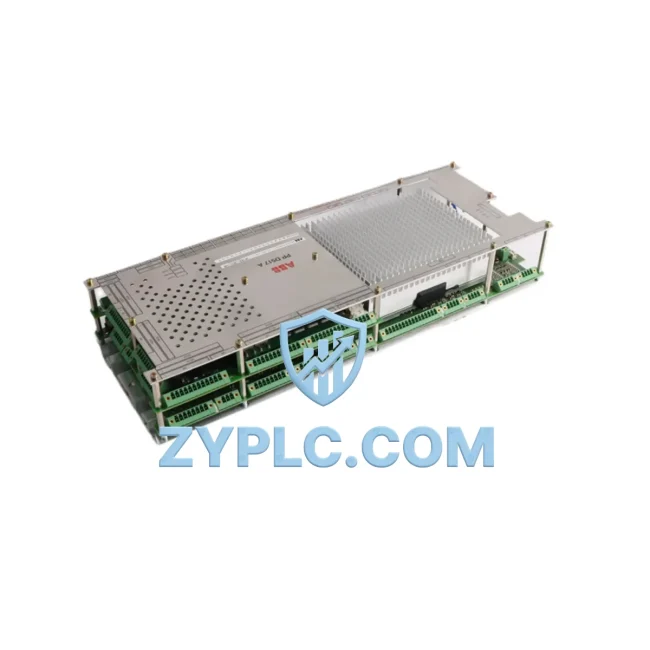

ABB PP-D517-A3011 3BHE051476R3011 Industrial Network Interface for ACS Series Systems

ABB PP-D517-A3011 3BHE051476R3011: Industrial Data Link for ACS Series Smart Factory Systems

The ABB PP-D517-A3011 (3BHE051476R3011) is a high-performance industrial network interface module engineered for the ABB ACS Series drive platform. Designed to bridge the communication gap between field-level devices and upper-level control systems, this unit plays a critical role in enabling seamless data flow across modern smart factory architectures. Whether deployed in continuous process industries, discrete manufacturing, or hybrid automation environments, the PP-D517-A3011 delivers the protocol translation, network stability, and real-time data throughput that industrial connectivity demands.

In today’s industrial landscape, the ability to connect variable frequency drives, PLCs, remote I/O modules, HMI panels, and SCADA platforms within a unified communication backbone is no longer optional — it is the foundation of operational transparency and competitive efficiency. The ABB PP-D517-A3011 addresses this need directly, serving as the communication gateway that enables ACS Series drives to participate fully in plant-wide automation networks.

Compatibility & Integration Notes

Connected Automation Data Flow

The PP-D517-A3011 sits at the heart of the ACS Series drive communication architecture, enabling a structured and reliable data pipeline from the lowest field device layer to the enterprise control level. In a typical smart factory deployment, signal acquisition begins at the sensor and actuator layer — where devices such as ABB NAIO-01 analog I/O extension modules and ABB RDIO-01 digital I/O modules collect process variables including motor speed, torque feedback, temperature, and current draw from the ACS880 or ACS800 drive.

These raw signals are passed upward through the drive’s internal communication bus, where the PP-D517-A3011 performs protocol conversion and packages the data into structured fieldbus or industrial Ethernet frames. This allows the drive data to be consumed by ABB AC500 PLC controllers — a widely deployed control platform in process and manufacturing automation — which execute the logic for speed regulation, fault response, and coordinated multi-axis control. The AC500’s PM series CPUs communicate with the PP-D517-A3011 over PROFIBUS-DP or PROFINET, depending on the network topology configured at the plant level.

For remote I/O expansion, the network segment may also include ABB S900 remote I/O modules, which extend the reach of the control system to distributed field cabinets without requiring additional PLC hardware at each location. The PP-D517-A3011 ensures that drive status, fault codes, and process values from the ACS Series are available to these remote nodes in real time, supporting closed-loop control across geographically distributed production lines.

At the HMI layer, operators interact with the system through ABB CP600 HMI panels or third-party SCADA clients connected via Modbus TCP or OPC-UA gateways. The PP-D517-A3011 ensures that the ACS drive’s operational parameters — including output frequency, DC bus voltage, motor current, and active fault registers — are continuously refreshed in the SCADA historian, enabling trend analysis, alarm management, and production reporting without manual data entry.

For plants running ABB Ability™ System 800xA DCS or similar distributed control architectures, the PP-D517-A3011 provides the fieldbus interface that integrates ACS Series drives as fully addressable nodes within the DCS asset model. This enables centralized engineering, online parameter modification, and predictive maintenance scheduling from the control room. Edge computing nodes — such as ABB Edge Controller EC2 series — can further aggregate drive data from multiple PP-D517-A3011 equipped units and forward processed analytics to cloud-based MES or ERP platforms, completing the digital thread from motor shaft to enterprise dashboard.

In variable speed pump and fan applications, the PP-D517-A3011 also works alongside ABB FENA-21 Ethernet adapter modules and ABB FPBA-01 PROFIBUS adapter modules to provide redundant communication paths, ensuring that a single network fault does not interrupt drive monitoring or control. This layered communication redundancy is essential in critical process industries such as water treatment, oil and gas, and pharmaceutical manufacturing, where unplanned downtime carries significant operational and regulatory consequences.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of legacy fieldbus systems and modern industrial Ethernet infrastructure within the same facility. Older production lines may rely on PROFIBUS-DP or Modbus RTU for drive communication, while newer expansions demand PROFINET or EtherNet/IP connectivity. Without a capable protocol gateway at the drive level, these networks remain isolated — creating data silos that prevent unified monitoring, complicate fault diagnosis, and slow down production optimization initiatives.

The ABB PP-D517-A3011 directly addresses this protocol fragmentation by providing a standardized communication interface that abstracts the drive’s internal data model and presents it in the format expected by the host network. Plant engineers no longer need to deploy separate protocol converters or custom middleware to bridge the gap between ACS Series drives and their SCADA or DCS platforms. The PP-D517-A3011 handles this translation natively, reducing system complexity and eliminating a common source of communication latency and data loss.

Remote monitoring and diagnostics are equally transformed by the PP-D517-A3011’s network integration capability. Maintenance teams can access live drive parameters — fault history, thermal status, run hours, and energy consumption — from any authorized SCADA workstation or mobile HMI without physically accessing the drive cabinet. This remote visibility dramatically reduces mean time to repair (MTTR) and supports condition-based maintenance strategies that extend equipment service life and reduce unplanned downtime.

For production lines undergoing capacity expansion, the PP-D517-A3011 supports system scalability without requiring changes to the host control architecture. Additional ACS Series drives equipped with PP-D517-A3011 modules can be added to the existing fieldbus segment and immediately recognized by the PLC or DCS, with no rewiring of the communication backbone. This plug-and-participate design philosophy aligns with the modular expansion strategies favored in smart factory and Industry 4.0 deployments, where production agility and rapid reconfiguration are competitive priorities.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB PP-D517-A3011 support, and is it compatible with my existing SCADA system?
The PP-D517-A3011 is designed for the ABB ACS Series drive platform and supports industrial fieldbus and Ethernet protocols including PROFIBUS-DP, Modbus RTU/TCP, and PROFINET, depending on the specific ACS drive variant and firmware version. It is compatible with major SCADA platforms including ABB System 800xA, Siemens WinCC, Wonderware, and Ignition, provided the host system supports the corresponding protocol. We recommend confirming your drive model and network topology before ordering to ensure full compatibility.

Q2: How does the PP-D517-A3011 affect communication latency in real-time control loops?
The PP-D517-A3011 is engineered for low-latency cyclic data exchange, with typical scan cycle times aligned to the ACS drive’s internal communication timing. In PROFIBUS-DP configurations, cyclic data refresh rates of 1–10 ms are achievable depending on the number of nodes on the segment. For time-critical applications, we recommend configuring the fieldbus master with optimized polling intervals and minimizing the number of acyclic read/write requests during active control cycles.

Q3: Is the PP-D517-A3011 tested before shipment, and what warranty coverage is provided?
Yes. Every PP-D517-A3011 unit supplied by ZYPLC undergoes full functional testing prior to dispatch, including communication interface verification and power-on diagnostics. All units are covered by a 12-month warranty from the date of shipment. In the event of a verified hardware fault within the warranty period, ZYPLC will arrange replacement or repair at no additional cost. DHL and FedEx express delivery options are available for urgent requirements.

Q4: Can the PP-D517-A3011 be used to expand an existing ACS Series network without modifying the PLC program?
In most cases, yes. When adding a new ACS Series drive with a PP-D517-A3011 module to an existing PROFIBUS or PROFINET segment, the drive appears as a new node with its own station address. The PLC program may require a GSD/GSDML file import and a new function block instance for the additional drive, but the core communication configuration and existing drive nodes remain unaffected. This makes the PP-D517-A3011 an ideal choice for phased production line expansions where minimizing control system disruption is a priority.
