ABB PP5302B 3ADT306400R1 Drive Board for ACS AC Drive

ABB PP5302B 3ADT306400R1 Drive Board for ACS AC Drive

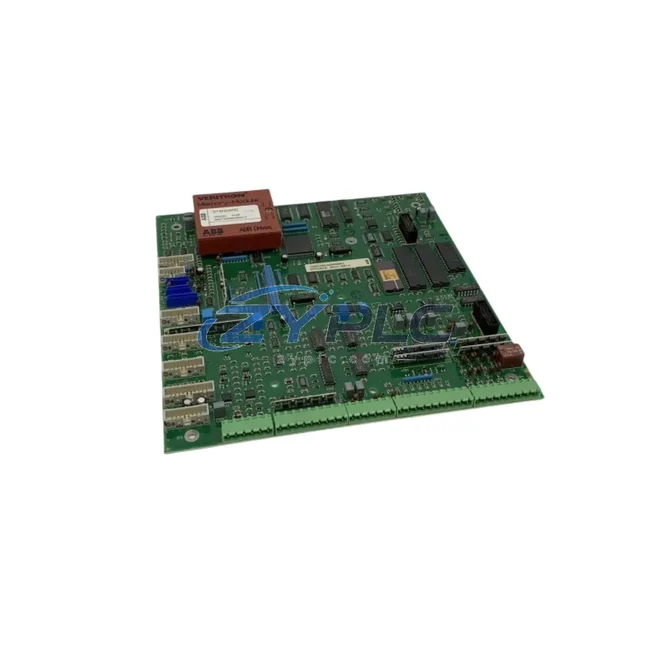

The ABB PP5302B (part number 3ADT306400R1) is a precision-engineered PC board designed to serve as a core control and signal processing component within ABB’s ACS series AC drive systems. Rather than functioning as a standalone replacement part, this board occupies a critical position within the layered automation architecture — bridging the control layer, power conversion layer, and I/O interface layer to ensure consistent, reliable drive operation across demanding industrial environments. Whether deployed in new system builds or as a verified replacement in existing ACS drive cabinets, the PP5302B 3ADT306400R1 delivers the electrical integrity and firmware compatibility required for long-term system stability.

In modern industrial automation, the performance of a variable frequency drive is inseparable from the health of its internal control electronics. The PP5302B board governs gate signal generation, feedback processing, fault detection, and communication handshaking between the drive’s CPU module and its power stage. When this board operates correctly, the entire drive system — from motor speed regulation to protective shutdown logic — functions with precision. When it degrades, the consequences cascade across the control hierarchy, affecting not just the drive itself but the broader process it governs. Sourcing a verified, system-compatible replacement such as the PP5302B 3ADT306400R1 is therefore not merely a maintenance decision but a system architecture decision.

This product is supplied with a warranty terms confirmed during quotation and has been tested to confirm electrical functionality prior to dispatch. It supports system integration within existing ACS drive architectures, meaning it can be installed without requiring firmware reconfiguration or hardware modification in standard ACS application environments.

Product Specification Table

System Compatibility Notes

The PP5302B 3ADT306400R1 does not operate in isolation. Its value is fully realized only when understood within the context of the complete ACS drive system architecture. At the control layer, the drive’s CPU or main control board — such as the ABB RMIO board or equivalent ACS main control unit — issues speed references and process commands that are translated into gate firing sequences by boards like the PP5302B. The integrity of this signal chain determines whether the drive responds accurately to setpoint changes from the PLC or DCS above it.

At the power layer, the PP5302B interfaces with the IGBT gate driver circuits and DC bus monitoring components. In ACS800 and ACS880 series drives, this includes interaction with the AINT board (auxiliary interface) and the APOW power supply board, which provide the regulated voltages necessary for stable board operation. A failure in any of these interdependent boards can produce fault codes that appear to originate elsewhere in the system — making verified replacement of the PP5302B an important diagnostic step when troubleshooting drive faults such as overcurrent trips, gate drive errors, or communication loss between the control and power stages.

At the I/O layer, the drive system typically incorporates ABB AIAO analog I/O extension modules or ADIO digital I/O boards to handle process feedback signals — encoder pulses, temperature sensor inputs, and digital status outputs. These modules depend on the PP5302B’s signal processing integrity to ensure that feedback loops remain closed and that the drive responds correctly to process deviations. In multi-drive systems, the ABB RDCO communication option board or RPBA PROFIBUS adapter connects the drive to the plant-wide fieldbus network, enabling coordinated operation across multiple axes or process zones.

At the human-machine interface layer, operators interact with the drive through the ABB ACS control panel (such as the CDP312R or ACS-CP-C assistant control panel), which communicates with the drive’s main control board via the panel bus. The PP5302B’s role in maintaining stable internal communication ensures that panel readings — motor current, output frequency, fault history — accurately reflect drive state. In systems where remote monitoring is implemented via ABB DriveAP or a SCADA gateway, this accuracy is essential for predictive maintenance and alarm management.

For redundancy-critical applications, some ACS drive installations incorporate bypass contactors and soft-starter modules as fallback paths, ensuring that a drive fault does not halt the process entirely. In these architectures, the PP5302B’s reliable fault detection and reporting capability is what enables the control system to execute a clean handover to the bypass path without process disruption. Maintaining a verified spare PP5302B 3ADT306400R1 in the site inventory is therefore a standard recommendation for facilities operating ACS drives in continuous-process or safety-critical applications.

Industrial Application Notes

The PP5302B 3ADT306400R1 finds application across a wide range of industrial sectors where ABB ACS series drives are deployed as the primary motor control technology.

In manufacturing and packaging lines, ACS drives control conveyor motors, servo-assisted positioning axes, and pump drives. The PP5302B ensures that speed regulation remains tight and that fault responses are fast enough to prevent product damage or line stoppage. In water and wastewater treatment facilities, ACS drives manage pump and blower motors operating continuously at variable loads. Here, the board’s role in maintaining stable closed-loop control is critical to energy efficiency and process compliance.

In power generation and electrical utilities, ACS drives are used for fan and pump control in auxiliary systems. The PP5302B’s compatibility with the drive’s internal protection logic — including earth fault detection and overcurrent response — supports the high reliability standards required in these environments. In oil, gas, and petrochemical plants, drives operate in hazardous area enclosures with strict requirements for fault isolation and safe-state behavior. The PP5302B’s role in gate drive signal integrity is directly linked to the drive’s ability to execute safe torque-off and controlled deceleration sequences.

In mining and metallurgical operations, ACS drives power large hoisting, conveying, and grinding motors under high-torque, variable-load conditions. The thermal and electrical stress on drive control boards in these environments is significant, making the availability of verified replacement boards like the PP5302B 3ADT306400R1 a key element of maintenance planning. In HVAC and building automation systems, ACS drives control air handling units and chiller pumps, where the PP5302B contributes to the drive’s ability to maintain precise airflow and pressure control across varying building loads.

Product Compatibility FAQ

Q1: Is the PP5302B 3ADT306400R1 compatible with all ACS series drive models, and how do I confirm fitment before installation?
The PP5302B is designed for specific ACS series drive variants. Compatibility is determined by the drive’s hardware revision, power rating, and internal board configuration. Before installation, cross-reference the part number 3ADT306400R1 against your drive’s internal wiring diagram and the board slot designation in the drive’s service manual. If the drive’s existing board carries the same part number or a superseded equivalent, the PP5302B is a direct replacement. Our technical team can assist with compatibility confirmation prior to order. All units supplied carry a warranty terms confirmed during quotation and are tested for electrical functionality before dispatch.

Q2: Can the PP5302B be installed without reconfiguring the drive’s parameters or firmware?
In standard ACS drive configurations, the PP5302B 3ADT306400R1 supports system integration — meaning it can be installed as a direct board swap without requiring parameter re-entry or firmware updates, provided the replacement board is of the same revision as the original. After installation, it is recommended to perform a drive self-test and verify that all I/O signals, feedback channels, and communication links are functioning correctly before returning the drive to service. In applications where the drive has been customized with non-standard parameter sets, a parameter backup should be taken before any board replacement.

Q3: What is covered under the warranty terms confirmed during quotation, and what support is available for system integration issues after installation?
The warranty terms confirmed during quotation covers manufacturing defects and electrical failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the drive’s rated environmental conditions. For system integration support — including assistance with fault code diagnosis, board slot identification, or coordination with other drive components such as the RMIO, AINT, or APOW boards — our engineering support team is available via the contact details below. We support RFQ-based sourcing for related ACS drive boards and components to support complete system restoration where multiple boards require replacement.
