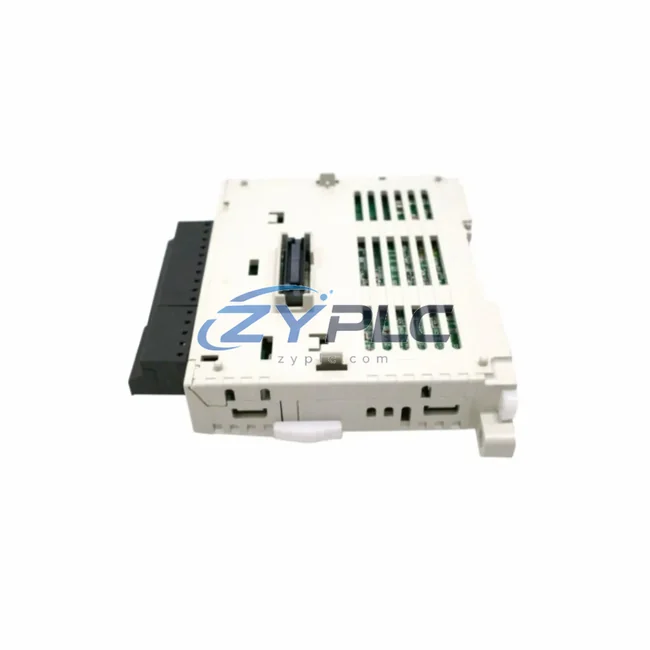

ABB QMLU502 YL281001-BK Automatic Voltage Regulator for Unitrol Systems

ABB QMLU502 YL281001-BK Industrial Network Interface for Unitrol Systems: Precision Data Link in Smart Factory Excitation Control

The ABB QMLU502 YL281001-BK is a high-performance Automatic Voltage Regulator (AVR) and excitation control unit from ABB’s renowned Unitrol series, engineered to serve as a critical industrial network interface between power generation equipment and upper-level control systems. Designed for synchronous generators, hydro turbines, gas turbines, and industrial alternators, this unit delivers precision voltage regulation while simultaneously acting as a data bridge across the full automation hierarchy — from field-level sensors and actuators to SCADA platforms, DCS controllers, and remote monitoring systems.

In modern smart factory and power plant environments, the QMLU502 YL281001-BK is not merely a voltage regulator — it is a real-time data node. Its integrated communication architecture enables seamless data exchange with ABB’s AC800M DCS controllers, Symphony Plus distributed control systems, and third-party PLCs via standardized industrial protocols. This makes it an indispensable component in any facility pursuing full operational transparency, predictive maintenance, and remote diagnostics.

Compatibility & Integration Notes

Connected Automation Data Flow

The ABB QMLU502 YL281001-BK sits at the heart of a layered industrial data architecture. At the field level, voltage and current transducers, PT/CT sensors, and excitation feedback loops feed raw analog signals into the unit’s high-speed signal acquisition module. The QMLU502 processes these inputs in real time, applying closed-loop AVR algorithms to maintain terminal voltage within ±0.5% of setpoint — even under sudden load transients or grid disturbances.

Once processed, the excitation data is packaged and transmitted upstream via PROFIBUS DP or Modbus TCP to the plant’s primary control layer. Here, ABB AC800M controllers or Siemens S7-400 PLCs receive the live telemetry and integrate it into the broader plant control logic. Simultaneously, the QMLU502 YL281001-BK communicates with ABB Unitrol 1000 and Unitrol 6800 companion modules for redundant excitation management and automatic changeover in case of primary AVR fault.

At the supervisory layer, the data stream flows into ABB Symphony Plus SCADA or third-party SCADA platforms via OPC-UA gateways such as the ABB AC500 communication gateway. HMI panels — including ABB CP600 series operator panels — display real-time generator status, reactive power output, and alarm states, giving operators full situational awareness without leaving the control room. Remote I/O modules, such as the ABB S900 remote I/O, extend the data reach to distributed field cabinets across the plant floor.

For facilities integrating variable-speed drives, the QMLU502 YL281001-BK coordinates with ABB ACS880 industrial drives to synchronize active and reactive power sharing between generator sets and motor loads on the same bus. This coordination is critical in islanded microgrids and backup power systems where voltage stability directly impacts production continuity. Edge computing nodes, such as the ABB Ability Edge gateway, can further aggregate QMLU502 telemetry for cloud-based analytics, predictive maintenance scoring, and remote firmware management.

The result is a fully connected excitation data chain: from field sensor → QMLU502 YL281001-BK → PLC/DCS → SCADA/HMI → cloud analytics — with every node communicating in real time, every alarm propagated within milliseconds, and every diagnostic event logged for audit and compliance.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in power generation and industrial automation is data isolation — the condition where critical equipment operates in silos, unable to share status, alarms, or performance data with the broader control system. The ABB QMLU502 YL281001-BK directly addresses this problem through its multi-protocol communication architecture.

Protocol Fragmentation: Many legacy power plants operate with a mix of PROFIBUS, Modbus, and proprietary serial protocols across different equipment generations. The QMLU502 YL281001-BK supports multiple protocol stacks simultaneously, acting as a protocol gateway that normalizes data from diverse field devices into a unified format consumable by modern SCADA and DCS platforms. This eliminates the need for costly protocol converters and reduces integration complexity.

Remote Monitoring and Diagnostics: With the QMLU502 YL281001-BK connected to the plant network, maintenance engineers can access real-time excitation parameters — field current, terminal voltage, power factor, and AVR mode status — from any authorized workstation or mobile device. Remote diagnostics reduce unplanned downtime by enabling fault identification before equipment failure occurs. Alarm thresholds can be configured remotely, and event logs are automatically timestamped and transmitted to the historian for trend analysis.

Production Line Transparency: In combined heat-and-power (CHP) plants, data centers with backup generation, and industrial microgrids, the QMLU502 YL281001-BK provides the excitation data layer that makes production transparency possible. Operators can visualize generator loading, reactive power contribution, and voltage regulation performance on a single HMI dashboard — enabling informed decisions about load shedding, generator dispatch, and maintenance scheduling.

System Scalability: As facilities expand — adding new generator sets, integrating renewable energy sources, or upgrading to IEC 61850-compliant substations — the QMLU502 YL281001-BK’s open communication architecture ensures forward compatibility. New devices can be added to the network without disrupting existing data flows, and the unit’s firmware can be updated remotely to support emerging protocol standards.

Every unit shipped by ZYPLC undergoes full functional testing, including communication link verification, AVR setpoint calibration, and protocol handshake confirmation, before dispatch. All units are covered by a warranty terms confirmed during quotation and are available for shipment arranged after confirmation via DHL or FedEx to global destinations.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB QMLU502 YL281001-BK support, and is it compatible with my existing SCADA system?
The QMLU502 YL281001-BK supports PROFIBUS DP, Modbus RTU/TCP, and IEC 61850 (via gateway), making it compatible with the vast majority of industrial SCADA platforms including ABB Symphony Plus, Siemens WinCC, GE iFIX, and Wonderware. For OPC-UA integration, an intermediate gateway such as the ABB AC500 communication module is recommended. Our technical team can confirm protocol compatibility for your specific system configuration before purchase.

Q2: How does the QMLU502 YL281001-BK perform in terms of communication latency and network stability under high-load conditions?
The unit is designed for deterministic real-time communication with cycle times as low as 1 ms on PROFIBUS DP networks. Its onboard watchdog and redundant communication paths ensure network stability even under high electromagnetic interference (EMI) conditions typical of generator halls and switchgear rooms. In the event of a communication link failure, the unit defaults to local autonomous AVR control, ensuring uninterrupted voltage regulation while the network fault is resolved.

Q3: Can the ABB QMLU502 YL281001-BK be integrated into an existing Unitrol excitation system without replacing other components?
Yes. The QMLU502 YL281001-BK is designed for modular integration within the ABB Unitrol ecosystem. It is compatible with Unitrol 1000, Unitrol 5000, and Unitrol 6800 series hardware, and can be added as a replacement or upgrade module without requiring changes to the excitation transformer, field breaker, or power bridge. Configuration is performed via ABB’s Unitrol commissioning software, and our engineers can provide remote commissioning support.

Q4: What does the warranty terms confirmed during quotation cover, and what is the lead time for delivery?
The warranty terms confirmed during quotation covers all manufacturing defects, component failures, and communication interface malfunctions under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or unauthorized modifications. Units RFQ Available are dispatched within 1–3 business days via DHL Express or FedEx International Priority. For urgent requirements, same-day dispatch is available upon request. Contact our team at plc.sales@zyplc.com or +86 19859288691 for stock confirmation and lead time.
