ABB QPWR-561 3AXD50000029893 Industrial Network Interface for ACS800 Systems

ABB QPWR-561 3AXD50000029893 Industrial Network Interface for ACS800 Systems: Bridging the Industrial Data Link

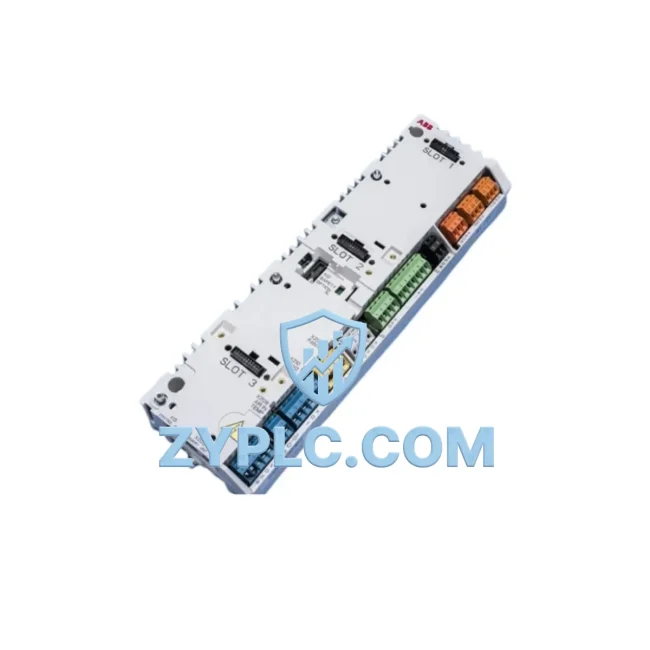

The ABB QPWR-561 (3AXD50000029893) is a high-performance control board module engineered for the ABB ACS800 series variable frequency drive platform. Designed to serve as a critical node in the industrial data chain, this module enables seamless communication between field-level devices and upper-level control and monitoring systems. In modern smart factory environments where real-time data visibility, protocol interoperability, and network stability are non-negotiable, the QPWR-561 delivers the connectivity backbone that keeps production lines transparent, responsive, and continuously optimized.

From signal acquisition at the sensor layer to protocol conversion at the gateway level, and from network transmission across the plant floor to real-time monitoring at the SCADA and HMI layer, the ABB QPWR-561 3AXD50000029893 occupies a pivotal position in the automation data flow. It supports the ACS800 drive’s integration into broader industrial communication architectures, enabling engineers to connect drives, PLCs, remote I/O modules, and supervisory systems within a unified, high-availability network.

Network Communication Table

Connected Automation Data Flow

The ABB QPWR-561 3AXD50000029893 functions as the communication heart of the ACS800 drive system, orchestrating data flow across multiple layers of the industrial automation hierarchy. At the field device level, sensors and encoders feed real-time process variables — speed, torque, current, temperature — directly into the ACS800 drive, where the QPWR-561 control board processes and routes this data upstream through the DDCS fiber optic ring network.

In a typical multi-drive installation, the QPWR-561 enables the ACS800 to participate in a coordinated drive chain alongside other ABB ACS800 units configured as master and follower drives. The DDCS ring topology ensures deterministic, low-latency communication between drives, which is essential for synchronized motion control in applications such as paper machine sections, crane hoisting systems, and extruder lines. The ABB RDCO-02 or RDCO-03 DDCS communication option boards complement the QPWR-561 by providing the physical fiber optic interface for this ring architecture.

At the fieldbus integration layer, the QPWR-561 interfaces with ABB fieldbus adapter modules — such as the RPBA-01 PROFIBUS DP adapter, the RCAN-01 CANopen adapter, or the RDNA-01 DeviceNet adapter — to bridge the ACS800 drive into the plant-wide fieldbus network. This allows a Siemens S7-300 or S7-400 PLC, an Allen-Bradley ControlLogix controller, or a Schneider Electric Modicon M340 to issue speed references, start/stop commands, and read back drive status words in real time, all through standardized fieldbus protocols.

The data collected by the QPWR-561 flows upward to SCADA platforms such as Wonderware InTouch, Ignition by Inductive Automation, or ABB’s own System 800xA DCS, where operators gain full visibility into drive performance metrics, energy consumption trends, and fault histories. Remote I/O modules positioned near field devices relay additional process signals into the network, while HMI panels on the machine provide local operators with real-time drive status and parameter adjustment capability. The ABB ACS800 with QPWR-561 can also interface with edge gateway devices that aggregate drive data for cloud-based analytics and predictive maintenance platforms, completing the data chain from sensor to enterprise system.

Variable frequency drives in adjacent systems — including ABB ACS550, ACS580, and ACS880 series — may share the same SCADA infrastructure, and the QPWR-561’s role in the ACS800 ensures that legacy drive assets remain fully integrated within the evolving smart factory network without requiring costly hardware replacement.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations and brands of equipment. A plant floor may simultaneously operate devices speaking PROFIBUS DP, Modbus RTU, DeviceNet, and proprietary vendor protocols — creating data silos that prevent unified monitoring, slow down fault response, and complicate system expansion.

The ABB QPWR-561 3AXD50000029893 directly addresses this challenge by providing the ACS800 drive with a flexible, multi-protocol communication architecture. Through its fieldbus adapter slot, the QPWR-561 enables the drive to participate in whichever fieldbus standard governs the plant network, eliminating the need for external protocol converters or custom integration middleware. This means that a PROFIBUS-based PLC system can communicate natively with the ACS800, reading real-time speed feedback and writing torque setpoints without any data translation overhead.

For remote monitoring and diagnostics, the QPWR-561 enables the ACS800 to transmit fault codes, warning states, and operational parameters to the SCADA layer continuously. Maintenance engineers can diagnose drive issues from the control room or remotely via VPN-connected SCADA clients, reducing mean time to repair and minimizing unplanned downtime. The drive’s parameter history and fault logs, accessible through ABB DriveWindow software via the DDCS network, provide a complete audit trail for root cause analysis.

Production line transparency is achieved through the QPWR-561’s ability to expose all ACS800 drive parameters — including output frequency, DC bus voltage, motor current, and thermal load — as live data points within the SCADA system. This enables real-time KPI dashboards, energy monitoring, and OEE (Overall Equipment Effectiveness) calculations that give plant managers actionable insight into drive performance and production efficiency.

System expansion is equally straightforward: the DDCS ring architecture supported by the QPWR-561 allows additional ACS800 drives to be added to the communication ring without disrupting existing network traffic. New production lines or additional drive axes can be integrated incrementally, protecting the capital investment in existing automation infrastructure while scaling capacity to meet growing production demands.

Every QPWR-561 3AXD50000029893 unit supplied by ZYPLC undergoes full functional testing prior to shipment, including communication interface verification and power-up diagnostics. All units are covered by a 12-month warranty, and our inventory is maintained to support urgent replacement requirements with same-day or next-day dispatch via DHL or FedEx international express.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB QPWR-561 3AXD50000029893 support?
The QPWR-561 natively supports ABB’s DDCS (Drive-to-Drive Communication System) fiber optic protocol for drive-to-drive and drive-to-controller communication. Through the ACS800’s fieldbus adapter slot, it can support PROFIBUS DP, DeviceNet, CANopen, Modbus RTU/TCP, and other industrial protocols via the corresponding ABB RPBA, RDNA, RCAN, or RMBA adapter modules. This makes the ACS800 with QPWR-561 compatible with virtually all major PLC and DCS platforms used in industrial automation.

Q2: How does the QPWR-561 ensure network stability in high-demand industrial environments?
The QPWR-561 uses fiber optic DDCS communication, which provides inherent immunity to electromagnetic interference (EMI) — a critical advantage in environments with large motors, welding equipment, or high-voltage switchgear. The ring topology of the DDCS network also provides redundancy: if a single node fails, the ring can reconfigure to maintain communication with remaining drives. Cyclic data exchange ensures deterministic update rates, preventing communication timeouts that could trigger unnecessary drive faults or production stops.

Q3: Can the ABB QPWR-561 integrate with existing SCADA and HMI systems without major reconfiguration?
Yes. The QPWR-561 enables the ACS800 to present its data as standard fieldbus variables, which are directly readable by SCADA platforms such as Wonderware, Ignition, iFIX, and ABB System 800xA using standard OPC-DA or OPC-UA drivers. HMI panels connected to the same fieldbus network can display and control drive parameters without custom programming. For DDCS-connected systems, ABB DriveWindow provides a dedicated PC-based interface for parameter management and diagnostics.

Q4: What does the 12-month warranty cover, and how are units tested before shipment?
All ABB QPWR-561 3AXD50000029893 units supplied by ZYPLC are tested for power supply integrity, communication interface functionality, and I/O signal verification before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides rapid replacement support to minimize production downtime. Our global logistics network ensures replacement units can reach most destinations within 3–5 business days via DHL or FedEx express services.
