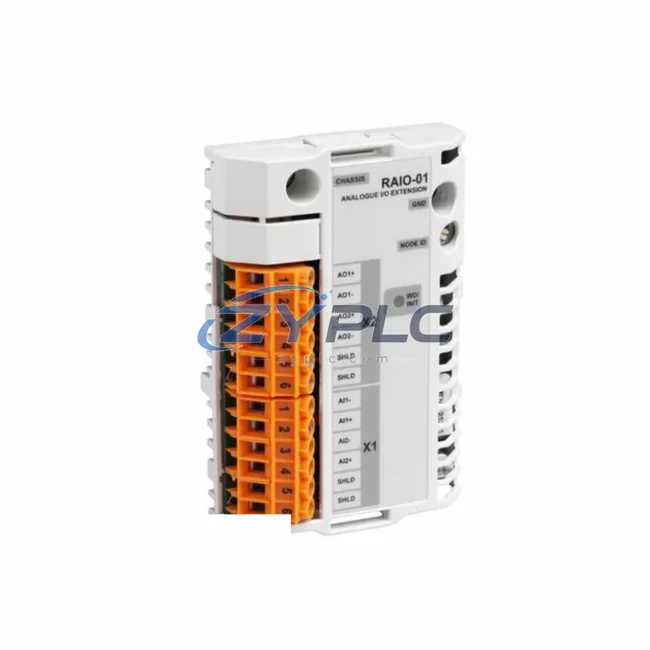

ABB RAIO-01 64606841 Analog I/O Module for ACS Series

ABB RAIO-01 64606841 Analog I/O Module for ACS Series

In modern industrial automation, the reliability and scalability of a control system depend not on any single component, but on the seamless coordination of every layer — from the CPU and power supply down to the I/O modules, communication gateways, and field devices. The ABB RAIO-01 64606841 Analog I/O Extension Module is engineered precisely for this role: a precision signal interface that strengthens the analog measurement and output capabilities of ABB ACS Series variable frequency drive systems, enabling tighter process control, broader architectural flexibility, and long-term operational stability across demanding industrial environments.

As a dedicated extension module for the ACS Series drive platform, the RAIO-01 integrates directly into the drive’s option slot architecture, expanding the native I/O capacity without requiring external signal conditioning hardware or additional wiring infrastructure. This direct integration reduces system complexity, minimizes signal latency, and ensures that analog reference signals and feedback values are processed with the precision required for closed-loop control applications in manufacturing, process industries, and critical infrastructure.

Product Specification Table

System Compatibility Notes

The RAIO-01 does not operate in isolation — its value is realized within a fully coordinated control architecture. In a typical ACS Series-based system, the drive itself (such as the ABB ACS580-01 or ACS880-01) serves as the primary motion and process control element, receiving speed references and torque commands from an upstream PLC or DCS. The RAIO-01 extends the drive’s analog interface capacity, allowing engineers to connect additional process sensors — pressure transmitters, flow meters, temperature transducers — directly to the drive without routing signals through the main PLC I/O rack.

At the control layer, the RAIO-01 works in conjunction with ABB’s FENA-21 Ethernet Adapter Module or FDNA-01 DeviceNet Adapter, which handle network-level communication between the drive and the plant control system. While the communication adapters manage digital command and status data over fieldbus protocols such as PROFINET, EtherNet/IP, or Modbus TCP, the RAIO-01 handles the analog signal domain — providing high-resolution process variable feedback that complements the digital control loop.

For power integrity, the system relies on ABB’s APOW-01 Power Supply Module or the drive’s internal SMPS, ensuring that the RAIO-01 and other option modules receive stable, conditioned power even during load transients. In redundant architectures, the ABB RDCO-03 DDCS Communication Module enables master-follower drive configurations where the RAIO-01 on each drive unit provides independent analog feedback, supporting synchronization and load-sharing across multi-drive systems.

At the I/O layer, the RAIO-01 complements digital I/O extension modules such as the ABB RDIO-01, which adds relay outputs and digital inputs to the same drive platform. Together, these modules create a comprehensive local I/O environment at the drive level, reducing the dependency on centralized PLC I/O cards and shortening signal cable runs in large panel installations. The ABB RPBA-01 PROFIBUS Adapter further integrates the drive into legacy PROFIBUS DP networks, ensuring backward compatibility in brownfield automation projects where the RAIO-01’s analog expansion capability is equally valuable.

For human-machine interface integration, the RAIO-01’s analog outputs can drive panel-mounted analog indicators or feed signal inputs on ABB CP600 series HMI panels, providing operators with real-time process variable visualization without additional signal converters. In safety-critical applications, the analog feedback from the RAIO-01 can be monitored by an ABB FSO-12 Safety Functions Module, enabling safe torque off and safe speed monitoring functions that depend on accurate analog process data.

Industrial Application Notes

The RAIO-01 finds application across a broad spectrum of industrial sectors where precise analog signal management at the drive level is essential to process quality and system reliability.

In water and wastewater treatment facilities, the RAIO-01 enables pump drives to receive 4–20 mA flow or pressure feedback directly, implementing local PID control loops that maintain system pressure without continuous PLC intervention — reducing network load and improving response time during demand fluctuations.

In oil, gas, and petrochemical plants, the module supports compressor and pump drive systems where analog process variables such as suction pressure, discharge pressure, and flow rate must be monitored with high resolution. The RAIO-01’s differential analog inputs reject common-mode noise from long cable runs in electrically noisy environments, ensuring signal integrity in hazardous area installations.

In metals and mining operations, conveyor and hoist drive systems benefit from the RAIO-01’s ability to accept load cell and tension sensor signals, enabling the drive to perform load-dependent speed regulation without external signal processing hardware. This simplifies the control cabinet design and reduces the number of components that require periodic calibration and maintenance.

In packaging and material handling lines, the RAIO-01 supports multi-axis tension control and web guiding applications where analog dancer position signals must be fed directly to individual drive units. The module’s 12-bit resolution ensures smooth, jerk-free speed adjustments that protect sensitive materials and maintain product quality at high line speeds.

In power generation and maintenance planning systems, the RAIO-01 integrates with generator excitation control and turbine governor systems, providing the analog interface needed to connect legacy transducers to modern ACS Series drives in retrofit and modernization projects.

Product Compatibility FAQ

Q1: Is the RAIO-01 compatible with all ACS Series drives, and can it be installed alongside other option modules?
The RAIO-01 is compatible with ACS355, ACS550, ACS580, ACS800, and ACS880 series drives that feature the standard option slot architecture. It occupies one option slot and can be installed simultaneously with communication adapter modules (such as the FENA-21 or RPBA-01) and digital I/O modules (such as the RDIO-01), provided the drive’s option slot configuration supports multiple modules. Always verify the specific drive’s option slot capacity in the hardware manual before combining modules.

Q2: How does the RAIO-01 support system redundancy and long-term maintenance in critical applications?
In redundant drive architectures using DDCS-linked master-follower configurations with the RDCO-03, each drive unit can be equipped with its own RAIO-01, providing independent analog feedback paths that eliminate single points of failure in the analog signal chain. For maintenance, the RAIO-01’s plug-in design allows hot-swap replacement without drive disassembly, minimizing downtime. All units supplied by ZYPLC include a warranty terms confirmed during quotation and are tested for full functional compliance prior to shipment, supporting predictive maintenance and spare parts management programs.

Q3: What engineering considerations apply when integrating the RAIO-01 into an existing system integration architecture?
system integration — the practice of embedding drive-level intelligence within the broader plant control context — is directly supported by the RAIO-01’s ability to provide high-resolution local analog data to the drive’s parameter set and control logic. When integrating into an existing system, engineers should verify analog signal scaling parameters (AI1 and AI2 scaling in the drive parameter group), confirm output signal type selection (voltage vs. current) matches the connected instrumentation, and validate grounding and shielding practices to prevent ground loop interference. ZYPLC’s technical team provides pre-sales configuration support to ensure seamless system integration with your existing control architecture.
