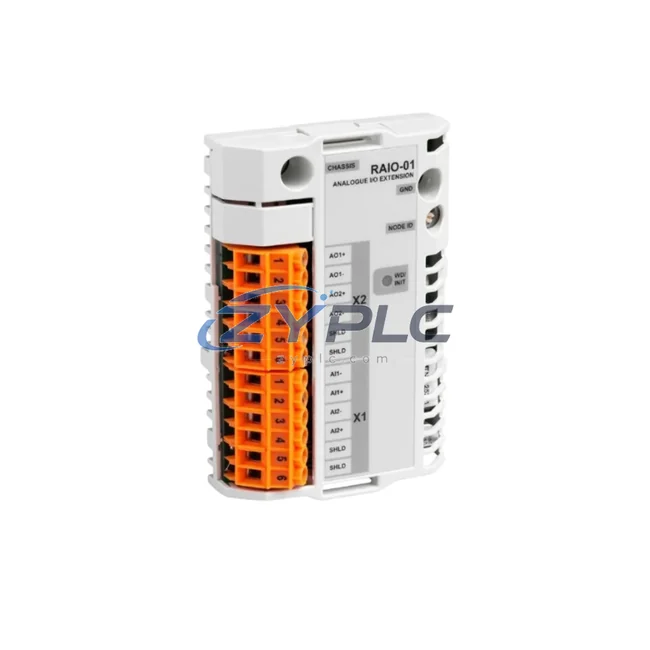

ABB RAIO-01 Analog I/O Module for Optimized ACS DCS

ABB RAIO-01 Analog I/O Module for ACS DCS Automation

In modern manufacturing environments where energy costs directly impact profitability, the ABB RAIO-01 Analog I/O Extension Module plays a critical role in closing the feedback loop between field instrumentation and drive-level control. Designed specifically for integration with ABB’s ACS and DCS drive families — including the widely deployed ACS880 and ACS580 variable frequency drives — the RAIO-01 extends the analog signal capacity of the drive control board, enabling precise, real-time measurement and actuation across the full production cycle.

At its core, the RAIO-01 provides additional analog input and output channels that allow engineers to connect process sensors — such as pressure transmitters, flow meters, temperature probes, and torque sensors — directly into the drive’s control logic. This tight integration eliminates the need for external signal converters or intermediate PLCs for basic process feedback, reducing both wiring complexity and signal latency. When paired with the ABB RDCO-03 communication adapter or the RINT-5611C fiber optic interface, the RAIO-01 becomes part of a fully synchronized drive network capable of millisecond-level response to process deviations.

Product Specification Table

System Compatibility and Application

The RAIO-01 is most effective when deployed as part of a layered industrial automation system. Consider a typical continuous process line: a 4–20 mA pressure transmitter mounted on a pump outlet feeds its signal into one of the RAIO-01’s analog input channels. The ACS880 drive reads this signal through its option slot, compares it against the setpoint defined in the ABB AC500 PLC, and adjusts motor speed in real time — eliminating the unplanned downtime caused by running the pump at fixed speed against a variable load.

On the output side, the RAIO-01’s analog output channels can drive electro-pneumatic positioners or proportional control valves, enabling the drive system to directly regulate downstream process variables without routing signals through a separate DCS I/O rack. This architecture is particularly valuable in applications using the ABB DCS880 DC drive platform, where precise torque and speed control must be maintained across wide load ranges to minimize reactive power draw.

For multi-drive installations, the RAIO-01 works alongside the RDNA-01 DeviceNet adapter or RPBA-01 PROFIBUS adapter to synchronize analog feedback data with the plant-level SCADA system. Engineers using ABB Ability™ Drive Manager or Panel Builder 600 HMI terminals can visualize real-time current draw, torque output, and process variable trends — enabling operators to identify inefficient operating points and adjust drive parameters without stopping the line.

In energy-intensive sectors such as water treatment, mining conveyors, and HVAC systems, the RAIO-01 is frequently paired with the ACS550 or ACS355 drives and a NETA-21 remote monitoring tool to implement predictive load profiling. By logging analog signal trends over time, maintenance teams can detect bearing wear, impeller fouling, or belt slippage before they cause unplanned downtime — converting reactive maintenance into scheduled, cost-controlled interventions.

Maintenance and Replacement Notes

One of the most significant sources of unplanned downtime in industrial facilities is the mismatch between motor output and actual process demand. Fixed-speed motors running at full capacity regardless of load are common in older installations, and even in newer plants, poorly tuned drive parameters can result in over-current conditions, excessive heat generation, and shortened motor life. The ABB RAIO-01 directly addresses this by giving the drive system the analog feedback resolution it needs to implement true closed-loop speed and torque control.

In a packaging line scenario, for example, the RAIO-01 can receive a tension feedback signal from a load cell amplifier and feed it into the ACS880‘s process PID controller. The drive then modulates motor speed to maintain constant web tension — eliminating the energy spikes caused by manual speed corrections and reducing material waste from tension-related breaks. The result is a measurable reduction in kWh per unit produced, which compounds significantly over multi-shift operations.

For facilities operating under ISO 50001 maintenance planning standards, the RAIO-01’s analog output channels can be configured to transmit real-time power consumption data to an condition monitoring gateway or ABB Ability™ Energy Manager platform. This enables automatic demand response — reducing motor speed during peak tariff periods and ramping back up during off-peak hours — without operator intervention. Combined with the drive’s built-in energy optimizer function available on the ACS880 and ACS580 platforms, the RAIO-01 becomes a key enabler of site-wide energy reduction programs.

Every RAIO-01 unit supplied by ZYPLC undergoes full functional testing prior to shipment, including analog channel calibration verification, signal linearity checks, and compatibility confirmation with the target drive firmware version. Units are shipped with a warranty terms confirmed during quotation and are available for shipment arranged after confirmation via DHL or FedEx to global destinations.

Product Sourcing FAQ

Q1: How does the RAIO-01 contribute to measurable operational stability?
The RAIO-01 enables closed-loop process control by feeding real-time analog signals — such as pressure, flow, or tension — directly into the ABB drive’s control logic. This allows the drive to match motor output precisely to process demand, eliminating the unplanned downtime of running at fixed speed. In pump and fan applications, this alone can reduce energy consumption by 20–50% compared to throttle-controlled fixed-speed systems.

Q2: Which ABB drive models are compatible with the RAIO-01?
The RAIO-01 is designed for ABB drives that support the standard option slot interface, including the ACS880, ACS580, ACS550, ACS355, and DCS880 series. It is not compatible with older ACS400 or ACS600 platforms. If you are unsure about compatibility with your specific drive firmware version, contact ZYPLC before ordering — our technical team will confirm compatibility based on your drive’s type code.

Q3: Can the RAIO-01 replace a failed original module, and is recalibration required?
Yes, the RAIO-01 is a direct replacement for failed or damaged original modules. After installation, analog channel scaling parameters (minimum/maximum signal values and corresponding process variable ranges) should be verified and adjusted in the drive’s parameter set using ABB’s Drive Composer or Panel Builder tools. ZYPLC provides pre-shipment functional test reports to confirm the module’s baseline calibration before it leaves our facility.

Q4: What warranty and testing does ZYPLC provide with the RAIO-01?
All RAIO-01 units supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Each unit is tested for analog input/output signal accuracy, channel isolation, and drive slot communication before shipment. In the event of a warranty claim, ZYPLC provides advance replacement to minimize production downtime.
