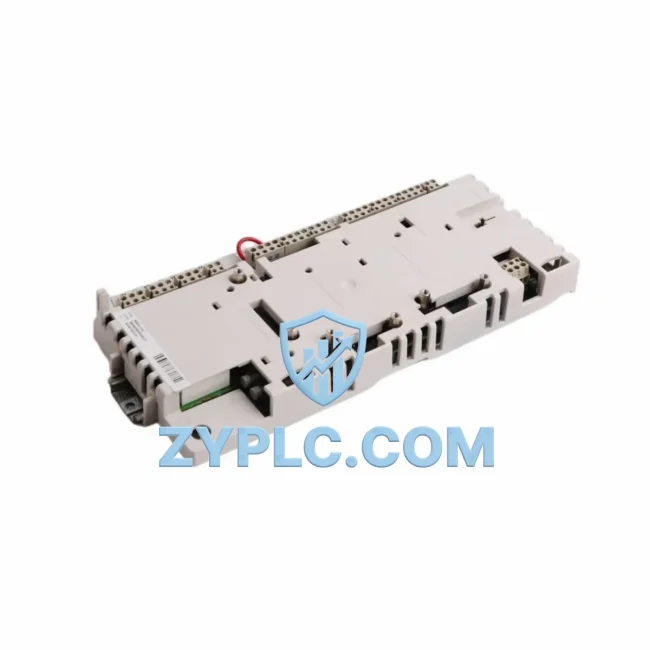

ABB RDCU-12C 3AUA0000036521 Industrial Network Interface for ACS800 Systems

ABB RDCU-12C 3AUA0000036521: Industrial Data Link and Smart Factory Connectivity for ACS800 Systems

The ABB RDCU-12C (part number 3AUA0000036521) is a fiber optic control unit engineered for high-speed, noise-immune communication between ABB ACS800 series AC drives and upper-level control systems. In modern smart factory environments where data integrity, real-time responsiveness, and system interoperability are non-negotiable, the RDCU-12C serves as the critical communication backbone that bridges field-level drive intelligence with plant-wide automation networks. Whether deployed in heavy industrial processes, material handling lines, or precision motion control applications, this unit delivers the reliable data link that production engineers and system integrators depend on.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory, the ABB RDCU-12C acts as the nerve center for drive-level data communication. The data flow begins at the field device layer, where sensors, encoders, and process instruments feed real-time signals into the ACS800 drive. The RDCU-12C then transmits this drive status data — including speed reference, torque feedback, fault codes, and energy consumption metrics — upstream via its DDCS fiber optic link to the control layer.

At the PLC level, an ABB AC500 or Siemens S7-300/S7-1500 controller receives structured drive data through the RDCU-12C’s communication channel, enabling closed-loop speed regulation and coordinated multi-axis motion. The RDCU-12C is fully compatible with ABB’s RDCO-02 and RDCO-04 DDCS communication option boards, allowing seamless integration into existing ACS800 drive cabinets without hardware redesign. For applications requiring distributed I/O expansion, the RDCU-12C works alongside ABB NDIO-01 digital I/O extension modules and NINT-41/43 fieldbus adapter boards to extend the drive’s connectivity to Profibus-DP, DeviceNet, or Modbus RTU networks.

Moving up the automation pyramid, the RDCU-12C’s data stream feeds into SCADA platforms such as ABB System 800xA, Wonderware InTouch, or Ignition SCADA, where operators gain real-time visibility into drive performance, energy trends, and process KPIs. HMI panels — including ABB CP600 series or Siemens TP700 Comfort — display live drive parameters sourced through the RDCU-12C link, enabling operators to monitor motor load, output frequency, and fault history without leaving the control room. For remote diagnostic scenarios, the fiber optic data path from the RDCU-12C integrates with edge gateway devices such as the ABB Ability Edge or third-party IIoT gateways, pushing drive telemetry to cloud-based analytics platforms for predictive maintenance and energy optimization. Variable frequency drives (VFDs) in pump, fan, and compressor applications benefit particularly from the RDCU-12C’s ability to relay precise speed and torque data to upstream SCADA systems, enabling demand-based control strategies that reduce energy consumption by up to 30%.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different equipment generations and vendors. Legacy drives often rely on proprietary serial interfaces that cannot natively communicate with modern Ethernet-based control systems, creating data silos that obscure production performance and complicate maintenance workflows. The ABB RDCU-12C directly addresses this challenge by providing a standardized DDCS fiber optic interface that integrates ACS800 drives into the broader automation network without requiring drive replacement or costly hardware retrofits.

In multi-drive systems — such as coordinated conveyor lines, winding machines, or crane hoisting applications — the RDCU-12C enables master-follower drive topologies where a single PLC master broadcasts speed and torque references to multiple ACS800 slave drives simultaneously over the DDCS ring network. This eliminates the analog signal wiring that traditionally introduced noise, drift, and calibration overhead, replacing it with a deterministic digital data link that maintains synchronization accuracy across all connected drives. For production line transparency, the RDCU-12C’s real-time data feed allows SCADA systems to generate shift-level production reports, track OEE (Overall Equipment Effectiveness), and trigger automated alarms when drive parameters exceed defined thresholds — all without manual data collection from the field. Remote monitoring capabilities enabled by the RDCU-12C allow maintenance engineers to diagnose drive faults, review historical fault logs, and adjust drive parameters from a central engineering workstation or even a remote location via VPN-secured SCADA access, dramatically reducing mean time to repair (MTTR) and unplanned downtime. As production requirements evolve, the RDCU-12C’s modular architecture supports system expansion: additional ACS800 drives can be added to the DDCS fiber ring without disrupting existing network topology, providing a scalable connectivity foundation that grows with the facility’s automation needs.

Industrial Connectivity FAQ

Q1: What communication protocol does the ABB RDCU-12C use, and is it compatible with standard fieldbus networks?
The RDCU-12C uses ABB’s proprietary DDCS (Distributed Drives Communication System) protocol transmitted over plastic fiber optic cable. While DDCS is not a standard fieldbus protocol, the ACS800 drive can be equipped with additional fieldbus adapter boards (such as NINT-41 for Profibus-DP or NINT-43 for DeviceNet) that work in conjunction with the RDCU-12C to bridge DDCS data to standard industrial networks, enabling integration with Siemens, Rockwell, and Schneider PLC platforms.

Q2: How does the RDCU-12C ensure low-latency, stable communication in electrically noisy industrial environments?
Fiber optic transmission is inherently immune to electromagnetic interference (EMI) and radio frequency interference (RFI), which are common in industrial environments with large motors, welding equipment, and high-voltage switchgear. The RDCU-12C’s fiber optic link eliminates ground loop issues and provides galvanic isolation between the drive and the control system, ensuring deterministic, low-latency data transmission even in the most electrically challenging plant environments.

Q3: Can the RDCU-12C support multi-drive SCADA integration and system expansion?
Yes. The RDCU-12C supports ABB’s DDCS ring topology, which allows multiple ACS800 drives to be connected in a daisy-chain fiber optic network controlled by a single PLC or drive master. This architecture supports system expansion by adding drives to the ring without reconfiguring the existing network. SCADA systems connected to the PLC master receive consolidated data from all drives on the ring, enabling centralized monitoring, alarm management, and historical data logging across the entire drive network.

Q4: What warranty and pre-shipment testing does the RDCU-12C include?
Every ABB RDCU-12C (3AUA0000036521) supplied by ZYPLC includes a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm communication interface integrity and firmware compatibility with ACS800 drive platforms. Units are shipped via DHL or FedEx with full tracking, and our technical team provides post-sale support for installation, commissioning, and integration queries.
