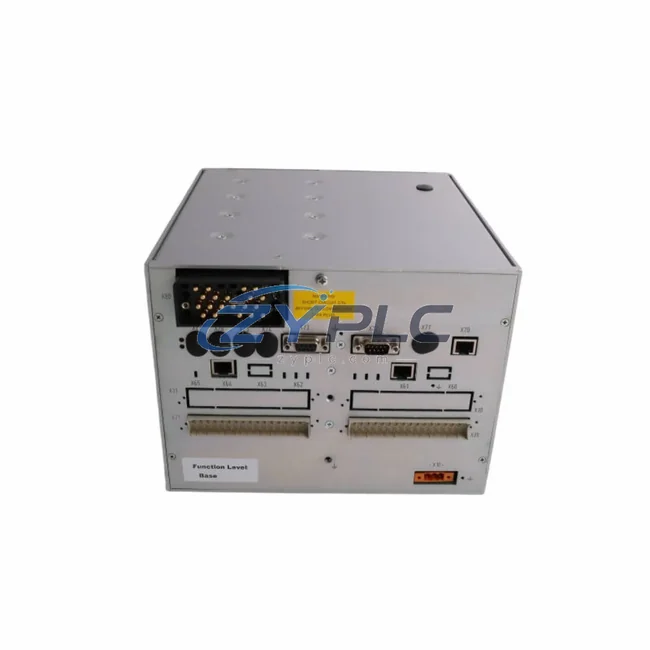

ABB REF542PLUS 2RCA029395-A0031 Feeder Terminal

ABB REF542PLUS 2RCA029395-A0031 Feeder Terminal for REF500 Automation

The ABB REF542PLUS 2RCA029395-A0031 is a high-performance feeder terminal module engineered for precision protection, maintenance-focused control, and seamless integration within ABB’s REF500 series automation architecture. Designed for medium-voltage switchgear and industrial substation environments, this module delivers measurable improvements in feeder energy utilization, equipment uptime, and operational cost reduction across demanding production and utility applications.

In modern industrial facilities where energy costs and equipment reliability are under constant scrutiny, the REF542plus platform provides a decisive advantage. The 2RCA029395-A0031 module functions as the intelligent core of feeder protection circuits, continuously monitoring current, voltage, and power quality parameters to ensure that energy is consumed only where and when it is needed. By eliminating unnecessary reactive power draw and enabling fast fault isolation, this module directly reduces unplanned downtime at the feeder level — a critical factor in facilities operating multiple motor-driven loads simultaneously.

Product Specification Table

System Compatibility and Application

The REF542PLUS 2RCA029395-A0031 is most effective when deployed as part of a coordinated maintenance planning architecture. In a typical MV distribution system, this feeder terminal works in concert with the ABB REF543 and REF545 protection relays to establish a layered protection scheme that minimizes fault energy and reduces the duration of supply interruptions. Upstream, the ABB REM543 motor protection relay monitors motor feeder loads, ensuring that variable-speed drives and direct-on-line starters operate within their optimal efficiency bands.

For drive-level energy regulation, the ABB ACS880 industrial drive series integrates directly with REF500 series protection terminals via MODBUS or PROFIBUS, enabling coordinated ramp control and regenerative braking energy recovery. When paired with the ABB SREA-01 Ethernet Adapter or the REF542plus communication module, real-time feeder data — including active power, reactive power, and harmonic distortion — is transmitted to the ABB MicroSCADA Pro supervisory system, where energy KPIs are tracked at the feeder, bay, and substation level.

At the I/O and signal layer, the ABB IOEX-01 I/O Extension Module expands the REF542plus input/output capacity, supporting additional binary and analog signals from field sensors, temperature monitors, and arc flash detection systems. This expanded sensing capability feeds directly into the module’s protection logic, enabling condition-based switching decisions that reduce unnecessary feeder energization cycles and associated inrush losses. The ABB RIO600 remote I/O unit further extends monitoring reach to distributed switchgear panels without requiring additional copper cabling infrastructure.

For HMI and local operator interaction, the ABB Panel Builder 800 or compatible CP600 HMI terminals provide graphical feeder status visualization, energy trend displays, and alarm management — giving operators immediate visibility into feeder loading conditions and enabling proactive load shedding before thermal limits are reached. Communication between the REF542plus and higher-level systems is handled via IEC 61850 GOOSE messaging, enabling sub-millisecond protection coordination across bay controllers without reliance on hardwired intertripping schemes.

Maintenance and Replacement Notes

In continuous process industries — including chemical plants, water treatment facilities, cement production, and automotive manufacturing — feeder terminal performance directly impacts overall equipment effectiveness (OEE). The ABB REF542PLUS 2RCA029395-A0031 contributes to maintenance planning across several dimensions of production line operation.

Reduced Fault Energy and Downtime: By executing overcurrent and earth fault protection in under 20 milliseconds, the module limits the thermal and mechanical stress imposed on cables, transformers, and motor windings during fault events. Shorter fault duration translates directly to lower repair costs, faster restart cycles, and reduced production loss per incident.

Feeder Load Balancing: Through continuous measurement of active and reactive power at each feeder, the REF542plus enables operators and SCADA systems to redistribute loads across available feeders, preventing overloading of individual circuits and reducing peak demand charges. In facilities with time-of-use electricity tariffs, this capability supports active demand management strategies that can reduce monthly energy costs by 8–15%.

Motor Start Optimization: When coordinated with ABB soft starters or ACS series variable frequency drives, the feeder terminal’s current measurement functions provide accurate inrush monitoring during motor starts. This data supports adaptive start ramp tuning, reducing inrush current peaks and the associated voltage dips that can disrupt sensitive automation equipment on adjacent feeders.

Predictive Maintenance Integration: The REF542plus logs fault event records, trip counters, and operational statistics that maintenance teams can retrieve via the SPA-bus or IEC 61850 interface. Trending this data over time enables predictive maintenance scheduling — replacing reactive breakdown maintenance with planned interventions that minimize unplanned downtime and extend the service life of switchgear components.

Inventory and Supply Assurance: ZYPLC maintains availability subject to RFQ confirmation of the ABB REF542PLUS 2RCA029395-A0031, with each unit subject to outgoing functional testing prior to shipment. This ensures that replacement modules arrive ready for installation, minimizing the time between fault occurrence and feeder restoration. All units are covered by a warranty terms confirmed during quotation from the date of shipment.

Product Sourcing FAQ

Q1: How does the REF542PLUS 2RCA029395-A0031 contribute to operational stability in an industrial substation?
The module reduces unplanned downtime by enabling fast, selective fault isolation — limiting fault energy dissipation — and by providing accurate power measurement data that supports reactive power compensation and load balancing decisions. When integrated with ABB MicroSCADA or a third-party maintenance planning system, feeder-level energy data can be used to optimize switching schedules and reduce peak demand.

Q2: Is the 2RCA029395-A0031 compatible with existing REF542plus installations?
Yes. The 2RCA029395-A0031 is a genuine ABB REF542plus series module and is designed for direct replacement within existing REF500 series installations. It maintains full compatibility with REF542plus hardware platforms, SPA-bus communication, and IEC 61850 configurations. No firmware modifications are required for standard replacement applications.

Q3: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Each unit undergoes outgoing functional testing to verify communication integrity, protection function operation, and I/O response prior to dispatch. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units that fail during the warranty period are replaced or repaired at no additional cost.

Q4: Can this module be used to replace a damaged REF542plus feeder terminal in an emergency shutdown scenario?
Yes. ZYPLC maintains ready stock of the 2RCA029395-A0031 to support urgent replacement requirements. Orders placed with confirmed shipping details are processed for same-day or next-business-day dispatch. Configuration parameters from the original unit can be restored via the REF542plus parameter setting tool, minimizing recommissioning time and accelerating feeder restoration.
