ABB RETA-01 Industrial Network Interface for RDNA Series: Bridging the Smart Factory Data Link

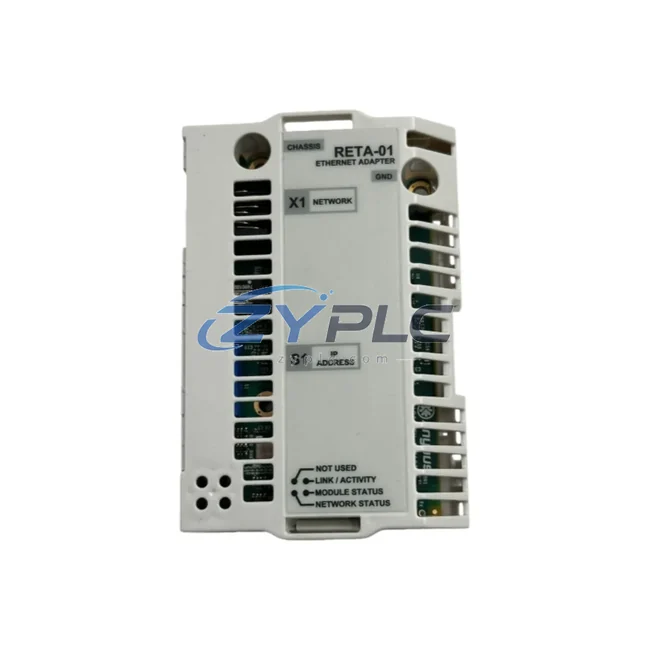

The ABB RETA-01 is a high-performance Ethernet Adapter Module engineered for seamless integration of ABB RDNA Series variable frequency drives into modern industrial communication networks. As factories accelerate toward Industry 4.0, the demand for real-time data transparency across every layer of the automation pyramid has never been greater. The RETA-01 answers this challenge by providing a robust, protocol-flexible gateway that connects drive-level intelligence directly to supervisory control systems, eliminating data silos and enabling continuous, bidirectional data flow across the entire production environment.

Designed for demanding industrial environments, the RETA-01 supports both Modbus TCP/IP and EtherNet/IP protocols, making it compatible with the broadest range of PLCs, SCADA platforms, and HMI systems in use today. Whether your facility runs on Rockwell Automation ControlLogix, Siemens S7-series controllers, or ABB’s own AC500 PLC platform, the RETA-01 integrates without friction, delivering drive status, speed references, fault codes, and energy data directly to your control layer in real time.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the ABB RETA-01 sits at the critical junction between field-level drive hardware and the plant-wide Ethernet backbone. The data flow begins at the motor and drive level: an ABB ACS880 industrial drive equipped with the RETA-01 continuously transmits operational parameters — output frequency, motor current, DC bus voltage, torque reference, and active fault codes — upstream via EtherNet/IP to the plant’s control layer.

At the PLC layer, an ABB AC500 PLC or a Rockwell ControlLogix controller receives this cyclic drive data and executes closed-loop control logic, adjusting speed references and enabling or disabling drive outputs based on process conditions. Simultaneously, the same Ethernet segment carries data from ABB remote I/O modules (such as the CI854 PROFIBUS gateway or S800 I/O stations) that aggregate signals from field sensors — pressure transmitters, flow meters, temperature probes — feeding a unified process picture to the SCADA layer.

The SCADA system — commonly ABB System 800xA, Wonderware AVEVA, or Ignition by Inductive Automation — subscribes to the RETA-01’s Modbus TCP/IP registers to display real-time drive status on operator HMI screens. Operators at the ABB CP600 HMI panel or remote workstations can monitor drive load, operating load trends, and fault history without leaving the control room. When a drive fault occurs, the RETA-01 immediately propagates the alarm event through the network, triggering automated notifications in the SCADA alarm management system and logging the event to the MES historian for root-cause analysis.

For multi-drive applications — such as coordinated conveyor systems or pump stations — the RETA-01 enables the ABB ACS580 drives and ACS380 compact drives to participate in the same EtherNet/IP network as peers, all managed from a single ControlLogix or AC500 controller. This architecture eliminates the need for dedicated serial communication wiring between drives and controllers, reducing installation complexity and improving network scalability. Edge gateways such as the ABB Edge Controller or third-party IIoT gateways can tap into this Ethernet data stream to push drive analytics to cloud-based asset management platforms, enabling predictive maintenance workflows based on real operational data.

The RETA-01 also supports integration with ABB DriveAP application programming environments, allowing engineers to embed custom communication logic directly into the drive’s application layer, further extending the module’s value in complex, multi-protocol automation architectures.

Solving Data Isolation in Industrial Sites

Many industrial facilities still operate with legacy drives and controllers that communicate over proprietary serial protocols — RS-485 Modbus RTU, DeviceNet, or PROFIBUS DP — creating islands of automation data that cannot be accessed by modern SCADA or MES systems without costly protocol converters. The ABB RETA-01 directly addresses this challenge by providing a native Ethernet interface for RDNA Series drives, eliminating the need for external gateways and reducing the number of network nodes that can introduce latency or failure points.

With the RETA-01 installed, drive data that was previously trapped in a closed serial loop becomes immediately available on the plant Ethernet network. Production managers gain real-time visibility into drive performance across every production line, enabling data-driven decisions about maintenance scheduling, maintenance planning, and capacity planning. Remote diagnostics become straightforward: maintenance engineers can access drive parameter sets, fault logs, and operational histories from any networked workstation or mobile device, dramatically reducing mean time to repair (MTTR) and unplanned downtime.

For facilities undergoing digital transformation, the RETA-01 provides a scalable foundation. As new drives are added to the network, they join the existing Ethernet infrastructure without requiring additional communication hardware. The module’s support for both Modbus TCP/IP and EtherNet/IP ensures forward compatibility with future control system upgrades, protecting the capital investment in ABB RDNA Series drives for the long term. Production line transparency — from individual motor speed to system-wide operating load — becomes a standard operational capability rather than a costly add-on.

Every ABB RETA-01 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, protocol response, and hardware condition. Units are shipped with a warranty terms confirmed during quotation, and our technical team provides application support for integration into your specific control architecture.

Industrial Connectivity FAQ

Q: What communication protocols does the ABB RETA-01 support, and is it compatible with my existing PLC?
A: The RETA-01 supports Modbus TCP/IP and EtherNet/IP (CIP), the two most widely deployed industrial Ethernet protocols. It is compatible with PLCs from ABB, Rockwell Automation, Siemens (via Modbus TCP), Schneider Electric, and most other major control system vendors that support standard Ethernet communication.

Q: What is the typical communication latency, and is it suitable for real-time control applications?
A: The RETA-01 operates over standard 10/100 Mbps Ethernet and supports cyclic data exchange with update rates suitable for drive speed and torque control applications. For time-critical motion control, ABB recommends verifying the specific cycle time requirements of your application against the drive’s communication configuration parameters.

Q: Can the RETA-01 be used in an existing network alongside other Ethernet devices without dedicated infrastructure?
A: Yes. The RETA-01 connects to standard IEEE 802.3 Ethernet switches and infrastructure. It can coexist on the same network segment as other industrial Ethernet devices, including HMIs, remote I/O modules, and SCADA servers, provided the network is properly segmented and managed for industrial reliability.

Q: What warranty and pre-shipment testing does ZYPLC provide for the ABB RETA-01?
A: Every RETA-01 unit is functionally tested before shipment to verify communication protocol response and hardware integrity. ZYPLC provides a warranty terms confirmed during quotation covering manufacturing defects and communication failures. Our technical support team is available to assist with integration questions and troubleshooting throughout the warranty period.
