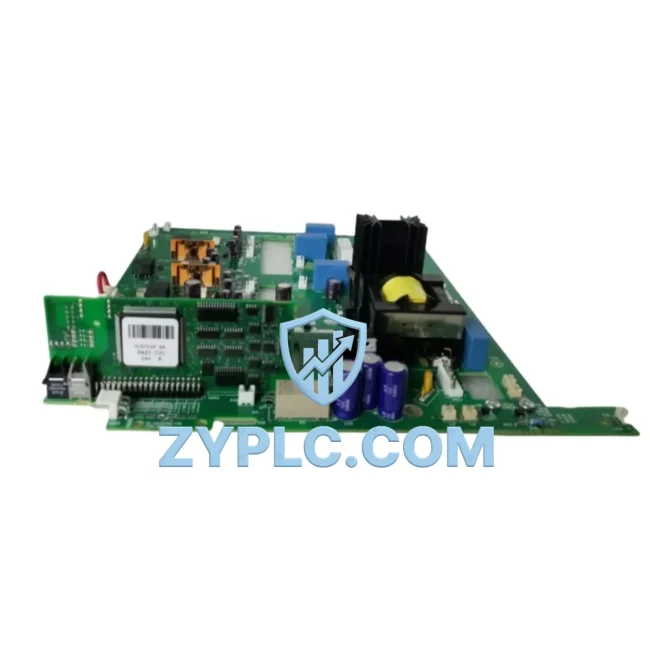

The ABB RINT6621C is a high-performance DDCS (Distributed Drives Communication System) fiber optic interface board engineered for seamless integration within ABB ACS800 variable frequency drive platforms. Designed to operate at the intersection of field-level devices and upper-level control systems, the RINT6621C enables reliable, high-speed optical communication that eliminates electromagnetic interference — a critical requirement in demanding industrial environments such as steel mills, paper machines, marine propulsion systems, and large-scale process automation plants.

In modern smart factory architectures, the data chain begins at the sensor and ends at the enterprise MES or cloud analytics platform. The RINT6621C sits at a pivotal node in this chain: it connects the ACS800 drive’s internal control logic to external PLC controllers, SCADA systems, and remote I/O networks via the DDCS fiber optic protocol, ensuring that torque references, speed feedback, fault codes, and energy consumption data flow continuously and without latency across the automation backbone.

Network Communication Table

Connected Automation Data Flow

The RINT6621C does not operate in isolation — it is the communication backbone that ties together an entire drive system ecosystem. In a typical ACS800 multi-drive installation, the RINT6621C board connects the master drive unit to follower drives via a DDCS fiber optic ring, enabling synchronized torque and speed control across multiple axes without the signal degradation that copper-based communication suffers in high-voltage cabinet environments.

At the field level, process sensors — including encoders, pressure transmitters, and flow meters — feed real-time signals into the ACS800 drive’s I/O modules. The RINT6621C then relays processed drive status data upstream to an ABB AC500 PLC or a Siemens S7-300/S7-400 controller acting as the system master, which coordinates production sequencing and safety interlocks. For installations requiring protocol bridging, a Moxa MGate MB3170 Modbus-to-PROFIBUS gateway or an HMS Anybus Communicator can be deployed alongside the RINT6621C to translate DDCS data into PROFIBUS DP or PROFINET frames readable by the plant-wide SCADA system.

At the supervisory layer, ABB System 800xA or Wonderware InTouch SCADA platforms receive drive performance data — including output frequency, DC bus voltage, motor current, and fault history — enabling operators to monitor production KPIs in real time from a centralized HMI panel. In distributed architectures, Advantech ADAM-6000 series remote I/O modules extend the monitoring reach to remote field cabinets, while an Ewon Flexy industrial router or Secomea SiteManager edge gateway provides secure VPN-based remote access for off-site engineers performing diagnostics and parameter adjustments without interrupting production.

For energy management integration, the RINT6621C-equipped ACS800 drive can interface with ABB Ability Energy Manager or third-party power monitoring systems via an ABB RPBA-01 PROFIBUS adapter or RETA-01 Ethernet adapter mounted in the drive’s option slot, creating a complete energy data loop from motor shaft to enterprise dashboard. In crane and hoist applications, the RINT6621C coordinates with ABB RDCO-03 DDCS communication option boards on companion drives to maintain precise load-sharing and anti-sway control — a function that demands the sub-millisecond communication latency that only fiber optic links can guarantee.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial installations is protocol fragmentation: drives, PLCs, remote I/O systems, and HMI panels from different generations speak different communication languages, creating data silos that prevent plant managers from achieving true production transparency. The ABB RINT6621C directly addresses this challenge by providing a standardized DDCS fiber optic interface that integrates ACS800 drives into modern automation networks without requiring drive replacement or costly rewiring.

Sites running mixed fleets of ABB ACS600 and ACS800 drives can use the RINT6621C to unify drive communication under a single DDCS ring, feeding consolidated data to a central PLC or DCS. This eliminates the need for separate diagnostic terminals at each drive cabinet and enables alarm centralization — when a drive fault occurs, the SCADA system receives the fault code, timestamp, and drive ID within milliseconds, allowing maintenance teams to respond before a minor fault escalates into an unplanned shutdown.

For greenfield smart factory projects, the RINT6621C supports a layered network architecture: fiber optic DDCS at the drive level, PROFIBUS or PROFINET at the controller level, and OPC-UA or MQTT at the cloud/MES level. This three-tier structure ensures that production data flows from motor to management dashboard with full traceability, supporting predictive maintenance algorithms, OEE calculation, and digital twin synchronization.

Every RINT6621C unit supplied by ZYPLC undergoes pre-shipment functional testing to verify optical port integrity, communication handshake performance, and board-level component condition. Units are shipped with a 12-month warranty and are available from in-stock inventory for immediate DHL or FedEx express dispatch worldwide.

Industrial Connectivity FAQ

Q1: What communication latency can I expect from the RINT6621C in a multi-drive DDCS ring?
The DDCS fiber optic protocol used by the RINT6621C is designed for deterministic, low-latency communication. In a standard ACS800 multi-drive ring configuration, cycle times are typically in the range of 2–5 ms, which is sufficient for synchronized torque control in most industrial applications including cranes, winders, and coordinated conveyor systems.

Q2: Is the RINT6621C compatible with PROFIBUS or PROFINET networks?
The RINT6621C itself operates on the DDCS protocol and does not natively output PROFIBUS or PROFINET. However, it can be used in conjunction with ABB fieldbus adapter modules such as the RPBA-01 (PROFIBUS) or RETA-01 (Ethernet/IP, PROFINET) installed in the ACS800’s option slot to bridge DDCS drive data onto plant-wide fieldbus networks.

Q3: How does the RINT6621C contribute to network stability in high-EMI environments?
Fiber optic communication is inherently immune to electromagnetic interference, making the RINT6621C ideal for installation in high-voltage drive cabinets, near large motors, or in environments with significant electrical noise. Unlike copper-based RS-485 or CAN bus links, the optical fiber carries no electrical potential, eliminating ground loop issues and ensuring signal integrity over distances up to several hundred meters.

Q4: What warranty and testing does ZYPLC provide with the RINT6621C?
All RINT6621C units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment inspection including optical port verification and communication function testing. In-stock units are available for same-day or next-day dispatch via DHL or FedEx express to destinations worldwide. For bulk orders or project-specific requirements, contact our technical sales team for availability confirmation and lead time.
