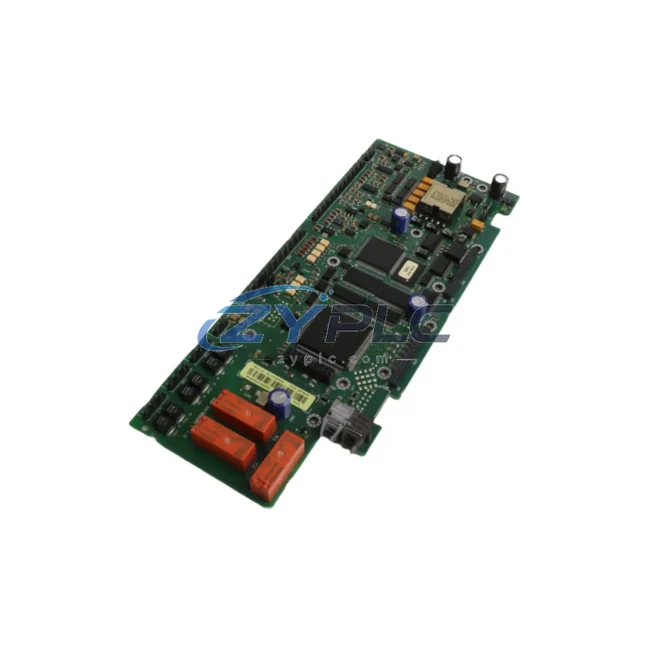

ABB RMIO-12C I/O Module ACS Series

ABB RMIO-12C I/O Module ACS Series: Precision Drive Control for Optimized Production Lines

The ABB RMIO-12C is a high-performance multifunction I/O extension module engineered for seamless integration with ABB’s ACS800 and ACS880 variable frequency drive platforms. Designed to meet the rigorous demands of modern industrial automation, the RMIO-12C enables granular signal acquisition, real-time feedback control, and maintenance-focused drive management — making it an essential component for factories seeking to reduce unplanned downtime risk, improve equipment utilization rates, and extend the operational lifespan of critical drive assets.

In energy-intensive production environments, the ability to precisely monitor and respond to analog and digital I/O signals is the foundation of efficient motor control. The RMIO-12C provides expanded I/O capacity directly at the drive level, eliminating signal latency and reducing the overhead typically associated with remote I/O polling through upper-level PLC systems. This tight integration with the ACS drive’s internal control bus ensures that maintenance planning decisions — such as speed ramping, torque limiting, and load-based frequency adjustment — are executed with minimal delay, directly contributing to measurable reductions in peak power demand and idle unplanned downtime.

Product Specification Table

System Compatibility and Application

The RMIO-12C is most effective when deployed as part of a coordinated industrial automation system. In a typical ACS880 drive system, the module interfaces directly with the drive’s RDCO communication option board or the RCAN CANopen adapter, enabling structured data exchange between the drive and the plant’s supervisory control layer. When paired with an ABB AC500 PLC running condition monitoring logic, the RMIO-12C’s analog inputs can stream real-time process variables — such as pump pressure, conveyor load, or compressor discharge temperature — back to the controller, allowing the PLC to dynamically adjust the drive’s speed reference via the ABB RDNA-01 DeviceNet adapter or RPBA-01 PROFIBUS adapter.

For facilities using the ABB ACS880-01 single drive or the ACS800-04 cabinet drive, the RMIO-12C’s six digital inputs provide direct hardwired interlocking with safety relays, motor protection units, and process switches — eliminating the need for intermediate relay panels and reducing wiring complexity. The module’s relay outputs can be configured to trigger alarms, activate bypass contactors, or signal the ABB CP600 HMI panel when drive efficiency drops below a defined threshold, enabling operators to take corrective action before unplanned downtime escalates into equipment damage.

In multi-drive installations, the RMIO-12C works alongside the ABB RDIO-01 digital I/O extension module to expand the total I/O count available to each drive node, supporting complex sequencing logic for multi-motor coordination on conveyors, mixers, and pump stations. When energy metering is required at the drive level, the module’s analog outputs can feed real-time current and frequency data to an ABB B23 energy meter or a third-party power analyzer, creating a closed-loop condition monitoring system that feeds directly into the plant’s MES or SCADA platform. The ABB NETA-21 remote monitoring tool can aggregate this data across multiple drives, providing plant engineers with a unified dashboard for operating load trending and predictive maintenance scheduling.

Maintenance and Replacement Notes

In real-world production environments, uncontrolled motor operation is one of the largest sources of avoidable unplanned downtime. Motors running at fixed speed regardless of actual load demand — a common scenario in older installations without variable frequency drives — can consume Actual operating results depend on the installed system, load profile, and commissioning parameters. The ABB RMIO-12C addresses this at the signal level: by providing the ACS drive with accurate, low-latency process feedback through its analog input channels, the module enables the drive’s internal PID controller to continuously match motor speed to actual process demand.

On a bottling line, for example, the RMIO-12C can receive a 4–20mA signal from a downstream fill-level sensor and feed it directly to the ACS880’s speed reference input, allowing the conveyor drive to slow automatically during low-demand periods and accelerate only when the buffer zone requires replenishment. This demand-responsive control strategy can reduce conveyor motor load by Actual operating results depend on the installed system, load profile, and commissioning parameters.

For HVAC and pump applications, the RMIO-12C’s analog outputs allow the ACS drive to report actual motor load percentage back to a building management system or plant DCS, enabling system-level optimization across multiple drives simultaneously. When integrated with the ABB Ability™ Energy Manager software platform, this data stream supports automated demand response, peak shaving, and energy benchmarking — all without requiring additional hardware at the drive level.

From a maintenance perspective, the RMIO-12C’s digital I/O channels support predictive maintenance workflows by enabling direct connection to vibration sensors, temperature transmitters, and bearing condition monitors. When these signals are routed through the RMIO-12C to the ACS drive’s fault logging system, maintenance teams gain early warning of developing mechanical issues — allowing scheduled intervention before unplanned downtime occurs. Every unit supplied by ZYPLC undergoes full functional testing prior to shipment, including I/O channel verification, signal linearity checks, and drive compatibility confirmation, and is backed by a warranty terms confirmed during quotation.

Product Sourcing FAQ

Q1: How does the RMIO-12C contribute to operational stability in an ACS800 or ACS880 drive system?
The RMIO-12C expands the drive’s I/O capacity, enabling real-time process feedback signals to be fed directly into the drive’s speed and torque control loops. This allows the drive to operate in demand-responsive mode rather than at fixed speed, reducing operating load during partial-load conditions by Actual operating results depend on the installed system, load profile, and commissioning parameters.

Q2: Is the RMIO-12C compatible with both ACS800 and ACS880 drive platforms?
Yes. The RMIO-12C is designed for use with both the ACS800 and ACS880 series drives. It connects via the drive’s option slot and is recognized by the drive’s firmware without additional configuration tools. For ACS880 installations using the RDCO-02 communication module, the RMIO-12C can be used in conjunction with the RDCO to provide simultaneous fieldbus communication and expanded I/O functionality.

Q3: What is the recommended replacement or upgrade path if the RMIO-12C is being used in an aging ACS800 system?
For facilities planning to migrate from ACS800 to ACS880 architecture, the RMIO-12C remains compatible with the newer platform, making it a cost-effective bridge component during phased upgrades. If expanded I/O is required beyond the RMIO-12C’s capacity, the RDIO-01 digital I/O module can be added in parallel. ZYPLC’s technical team can assist with compatibility assessment and migration planning.

Q4: What testing and warranty coverage does ZYPLC provide for the RMIO-12C?
Every RMIO-12C unit supplied by ZYPLC is individually tested prior to shipment. Testing includes full I/O channel functional verification, analog signal linearity and accuracy checks, digital input/output switching tests, and drive slot compatibility confirmation. All units are covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a warranty claim, ZYPLC provides rapid replacement or repair support to minimize production downtime.
