ABB RPBA-01 200-APB12 Industrial Network Interface for ACS Series Systems

ABB RPBA-01 200-APB12 Industrial Network Interface for ACS Series Systems: Bridging the Industrial Data Link in Smart Factory Environments

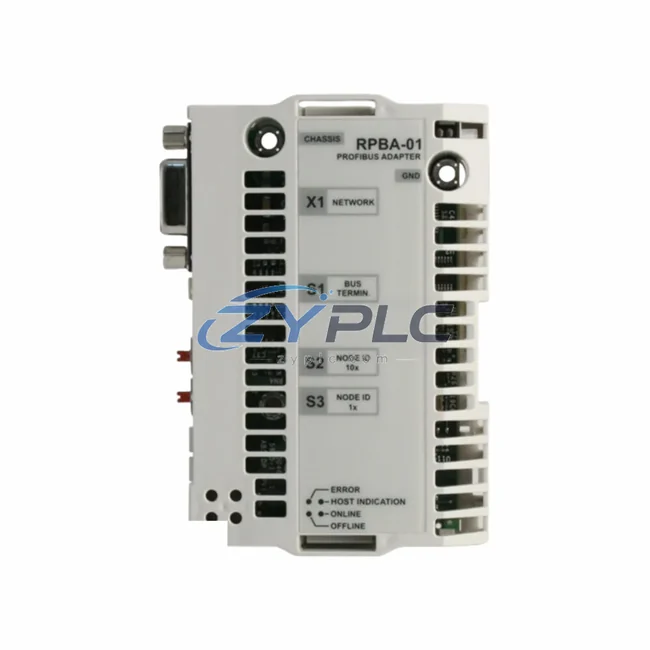

The ABB RPBA-01 (200-APB12) is a high-performance Profibus DP fieldbus communication adapter engineered for seamless integration of ABB ACS series variable frequency drives into industrial automation networks. As factories accelerate toward Industry 4.0 architectures, the demand for reliable, low-latency protocol conversion between field devices and upper-level control systems has never been greater. The RPBA-01 answers this challenge by providing a robust, standards-compliant Profibus DP interface that connects ACS drives directly to PLCs, SCADA platforms, DCS controllers, and HMI systems — eliminating data silos and enabling full-spectrum visibility across the production floor.

Designed for demanding industrial environments, the 200-APB12 adapter slots directly into the option slot of compatible ABB ACS drives, including the ACS550, ACS800, ACS880, and ACS580 series. Once installed, it transforms the drive into a fully addressable Profibus DP slave node, capable of transmitting real-time process data — speed references, torque feedback, fault codes, energy consumption metrics, and status words — to any Profibus DP master controller on the network. This bidirectional data flow is the backbone of modern smart factory connectivity, enabling operators to monitor, control, and diagnose drive behavior from centralized SCADA or HMI stations without physical intervention at the drive panel.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the data journey begins at the sensor and actuator layer. Vibration sensors, temperature transmitters, and encoder feedback devices feed real-time signals into the ABB ACS880 or ACS550 drive, which processes these inputs to regulate motor speed, torque, and energy output. The ABB RPBA-01 200-APB12 adapter then encapsulates this process data into Profibus DP telegrams and transmits them upstream to the PLC layer — commonly an ABB AC500 PLC, a Siemens S7-300/S7-400, or a Schneider Modicon M340 — where logic controllers execute closed-loop control algorithms based on live drive feedback.

From the PLC, data flows further upstream through an industrial Ethernet backbone — often managed by an ABB EKI series managed industrial Ethernet switch or a Hirschmann MACH industrial switch — to the SCADA server layer. Platforms such as Wonderware InTouch, Ignition by Inductive Automation, or ABB Ability™ System 800xA receive structured drive data in real time, enabling operators to visualize motor performance trends, configure alarm thresholds, and generate energy efficiency reports. The RPBA-01 ensures that this entire data chain — from field device to enterprise dashboard — operates with sub-millisecond Profibus cycle times and zero data loss under normal network conditions.

For remote I/O expansion, the RPBA-01 works in concert with ABB CI854 Profibus DP communication interface modules and Phoenix Contact Inline Profibus couplers, allowing distributed I/O racks to share the same Profibus segment as the drive network. In multi-drive installations — such as conveyor systems, pump stations, or HVAC plants — multiple ACS series drives, each equipped with an RPBA-01 adapter, can be daisy-chained on a single Profibus DP segment, with each drive assigned a unique node address (1–125). This architecture dramatically reduces wiring complexity while maintaining deterministic communication across all nodes.

At the HMI layer, operators interact with drive parameters through ABB CP600 HMI panels or third-party panels running on Profibus DP, receiving live speed setpoints, fault diagnostics, and energy consumption data directly from the drive via the RPBA-01 interface. When integrated with an ABB NETA-21 remote monitoring tool or an edge gateway such as the Moxa MGate MB3000 series protocol gateway, the system extends remote diagnostic capability to cloud-based maintenance platforms, enabling predictive maintenance workflows and reducing unplanned downtime.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is protocol fragmentation — drives, PLCs, remote I/O modules, and HMI systems from different manufacturers speaking incompatible communication languages. This creates data islands where critical process information is trapped within individual devices, invisible to the broader control system. The ABB RPBA-01 200-APB12 directly addresses this problem by acting as a universal translation layer between the ABB ACS drive ecosystem and the Profibus DP network standard, which is supported by virtually every major PLC and DCS platform in the industrial automation market.

For facilities undergoing digital transformation, the RPBA-01 enables a phased connectivity upgrade strategy: existing ACS drives can be retrofitted with the 200-APB12 adapter without replacing the drive hardware, immediately bringing them onto the Profibus network and making their data accessible to SCADA and MES systems. This approach delivers production line transparency — real-time OEE metrics, energy consumption per production cycle, and predictive fault indicators — without the capital expenditure of full drive replacement programs.

Remote monitoring and diagnostics are equally transformed. With the RPBA-01 in place, maintenance engineers can interrogate drive fault histories, adjust PID parameters, and reset alarms from the SCADA workstation or even from mobile HMI clients, eliminating the need for on-site panel access during routine diagnostics. For multi-site operations, this capability translates directly into reduced travel costs and faster mean-time-to-repair (MTTR) metrics. System scalability is also preserved: as production capacity grows, additional ACS drives with RPBA-01 adapters can be added to the Profibus segment without architectural changes to the existing network infrastructure.

Every RPBA-01 200-APB12 unit shipped by ZYPLC undergoes pre-shipment functional testing to verify Profibus communication integrity, parameter read/write capability, and physical connector condition. Availability confirmed by RFQ inventory ensures rapid dispatch, and all units are covered by a warranty terms confirmed during quotation from the date of delivery, providing procurement teams and maintenance managers with the confidence to specify the RPBA-01 in both new installations and critical retrofit projects.

Industrial Connectivity FAQ

Q1: What is the maximum Profibus DP transmission speed supported by the ABB RPBA-01 200-APB12?
The RPBA-01 supports Profibus DP baud rates from 9.6 kbps up to 12 Mbps, with automatic baud rate detection. The adapter synchronizes to the master’s configured baud rate upon network startup, requiring no manual speed configuration. At 12 Mbps, Profibus DP cycle times for a 32-node network are typically under 1 millisecond, making the RPBA-01 suitable for high-speed closed-loop control applications.

Q2: Is the RPBA-01 compatible with Profibus DP masters from non-ABB manufacturers?
Yes. The RPBA-01 is fully compliant with the EN 50170 / IEC 61158 Profibus DP standard and is compatible with any certified Profibus DP master, including Siemens S7 series PLCs, Schneider Modicon Premium and Quantum controllers, Rockwell ControlLogix with Profibus scanner cards, and Mitsubishi MELSEC Profibus masters. A GSD (General Station Description) file is provided for seamless integration into the master’s configuration tool.

Q3: How does the RPBA-01 contribute to network stability in multi-drive Profibus segments?
The RPBA-01 implements the full Profibus DP slave state machine, including watchdog timeout monitoring. If communication with the Profibus master is interrupted — due to cable fault, master restart, or network reconfiguration — the adapter places the connected ACS drive into a safe, pre-configured fallback state (configurable via drive parameters), preventing uncontrolled motor behavior. This fail-safe mechanism is critical for applications in pump stations, compressor rooms, and conveyor systems where uncontrolled drive behavior could cause process damage or safety incidents.

Q4: What warranty and testing standards apply to RPBA-01 units supplied by ZYPLC?
All ABB RPBA-01 200-APB12 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Prior to dispatch, each unit undergoes functional verification including Profibus communication handshake testing, parameter access validation, and physical inspection of the DB9 connector and option slot interface. Units that do not pass testing are not shipped. For procurement teams requiring traceability documentation, test reports are available upon request.
