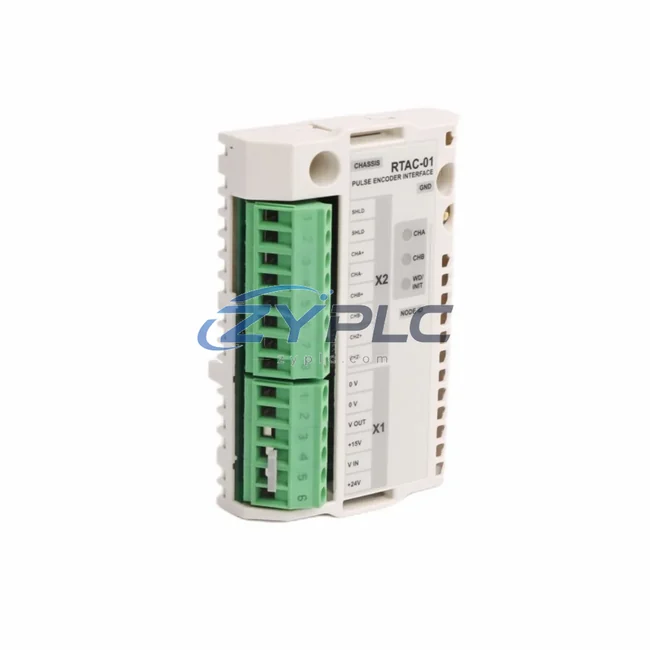

ABB RTAC-01 Encoder Interface for ACS Series

ABB RTAC-01 Encoder Interface for ACS Series

In modern industrial automation, the reliability of a drive system depends not only on the performance of the central controller but on the precision and consistency of every signal layer within the architecture. The ABB RTAC-01 Encoder Interface Module is engineered to serve as a critical feedback component within ABB ACS Series variable frequency drive systems, enabling closed-loop speed and position control with the accuracy demanded by high-performance process and motion applications. Rather than functioning as a standalone accessory, the RTAC-01 is designed to integrate seamlessly into a layered control architecture — connecting the mechanical execution layer to the drive intelligence layer with minimal latency and maximum signal fidelity.

The RTAC-01 mounts directly into the option slot of compatible ACS Series drives, including the ACS800, ACS880, and ACS580 platforms, and interfaces with incremental or absolute encoders mounted on motors or driven machinery. By delivering real-time shaft position and velocity feedback to the drive’s control board, the module enables Direct Torque Control (DTC) and vector control algorithms to operate at their full potential — reducing speed deviation, improving torque response, and extending motor and mechanical component life across demanding duty cycles.

From a system architecture perspective, the RTAC-01 occupies the feedback and signal conditioning layer, sitting between the physical encoder on the motor shaft and the drive’s internal processor. This positioning makes it a foundational element in any closed-loop ACS drive deployment, whether the application involves coordinated multi-axis motion, tension control in web handling, or precise speed regulation in pump and compressor systems.

Product Specification Table

System Compatibility Notes

The RTAC-01 achieves its full value when considered within the broader context of an ABB ACS Series drive system. At the control layer, the ACS880 primary control program running on the RDCU-02C control unit relies on accurate encoder feedback to execute DTC algorithms. Without a properly configured encoder interface, the drive defaults to open-loop scalar control, which introduces speed regulation errors that compound across multi-drive systems. The RTAC-01 eliminates this limitation by providing the RDCU control board with continuous, high-resolution shaft position data.

At the power and hardware layer, the ACS880-01 single drive or ACS800-04 inverter unit supplies the DC bus voltage that powers the drive’s option modules, including the RTAC-01. Stable DC bus performance — supported by the drive’s internal APBU-44C branching unit in multi-drive configurations — ensures that the encoder interface module receives consistent operating power without voltage transients that could corrupt feedback signals.

For communication and network integration, the RTAC-01 works alongside fieldbus adapter modules such as the FPBA-01 PROFIBUS DP Adapter or the FENA-21 Ethernet Adapter, which handle higher-level communication with PLCs and SCADA systems. While the RTAC-01 manages low-level encoder feedback internally within the drive, the fieldbus modules carry speed references, torque commands, and status words to and from the plant control network — creating a complete signal chain from the supervisory layer down to the motor shaft.

In applications requiring redundancy or extended I/O, the RDIO-01 Digital I/O Extension Module and RAIO-01 Analog I/O Extension Module can be installed alongside the RTAC-01 in the drive’s option slots, expanding the drive’s ability to interface with external safety relays, process sensors, and interlock circuits. This modular architecture allows engineers to configure each drive precisely for its application without requiring external signal conditioning hardware.

At the human-machine interface layer, ABB’s CP600 series HMI panels or third-party SCADA terminals connected via the FENA-21 Ethernet module provide operators with real-time visibility into encoder-derived speed and position values, enabling condition monitoring and predictive maintenance workflows that depend on the accuracy of the RTAC-01’s feedback data.

Industrial Application Notes

The RTAC-01 is deployed across a wide range of industrial sectors where closed-loop drive control is essential to process quality and equipment protection.

In metal processing and rolling mills, the module enables precise speed synchronization between multiple ACS880 drives controlling roughing and finishing stands. Encoder feedback through the RTAC-01 allows the drive system to maintain constant strip tension and prevent cobbles caused by speed mismatch between drive sections.

In petrochemical and refinery applications, compressor and pump drives equipped with the RTAC-01 operate in closed-loop vector mode, maintaining precise flow rates and pressures even as process conditions change. The module’s ability to deliver accurate speed feedback to the drive’s DTC algorithm reduces mechanical stress on rotating equipment and extends mean time between maintenance intervals.

In power generation and utilities, the RTAC-01 supports ACS800 drives used in boiler feed pump and induced draft fan applications, where speed regulation accuracy directly affects combustion efficiency and steam output stability. Closed-loop operation enabled by the encoder interface reduces energy consumption compared to open-loop alternatives.

In mining and minerals processing, conveyor and hoist drives using the RTAC-01 benefit from improved load sharing and anti-rollback performance. The encoder feedback allows the drive to detect and respond to load changes in milliseconds, protecting mechanical components and improving operational safety in inclined conveyor and winding applications.

In packaging and converting lines, the RTAC-01 enables register control and tension zone management by providing the drive with the shaft position accuracy needed for electronic line shaft applications, replacing mechanical gearboxes with software-defined speed ratios that can be adjusted without stopping the line.

Product Compatibility FAQ

Q1: Is the RTAC-01 compatible with all ACS Series drives, and what firmware version is required for closed-loop encoder operation?
The RTAC-01 is compatible with ACS800, ACS880, and ACS580 drives that feature an option slot supporting the RTAC interface standard. Closed-loop encoder operation requires that the drive’s application program supports encoder feedback — for ACS880, this is standard in the primary control program (PCP) from version 2.60 onwards. For ACS800, the Standard Application Program or System Application Program must be configured with encoder feedback enabled in parameter group 50. Always verify the drive’s option slot type (slot 1, 2, or 3) against the RTAC-01 installation manual before mounting.

Q2: Can the RTAC-01 be used in a redundant drive architecture, and how does it behave during a drive fault or module replacement?
In redundant drive configurations using an APBU-44C branching unit with hot-standby inverter modules, the RTAC-01 is installed in each inverter unit independently. Upon a drive fault and automatic switchover to the standby inverter, the replacement drive’s RTAC-01 immediately resumes encoder feedback once the drive initializes, provided the encoder wiring is connected to both units via a signal splitter or dedicated encoder distribution terminal. Module replacement is non-destructive to encoder wiring — the RTAC-01 can be swapped without disconnecting the encoder cable from the motor, minimizing downtime during maintenance. All replacement modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment.

Q3: What are the long-term maintenance considerations for the RTAC-01 in continuous-duty industrial environments?
The RTAC-01 is a passive interface module with no moving parts or consumable components, making it inherently low-maintenance. Long-term reliability depends primarily on the quality of the encoder cable installation — shielded, twisted-pair cable with proper grounding at the drive end is essential to prevent common-mode noise from corrupting feedback signals in electrically noisy environments such as steel mills or chemical plants. Periodic inspection of the module’s connector seating and the encoder cable’s shield termination is recommended during scheduled drive maintenance intervals. ZYPLC supports RFQ sourcing for RTAC-01 modules for shipment arranged after confirmation, supporting both planned replacement programs and emergency maintenance requirements. Each unit is supplied with a warranty terms confirmed during quotation and full traceability documentation.
