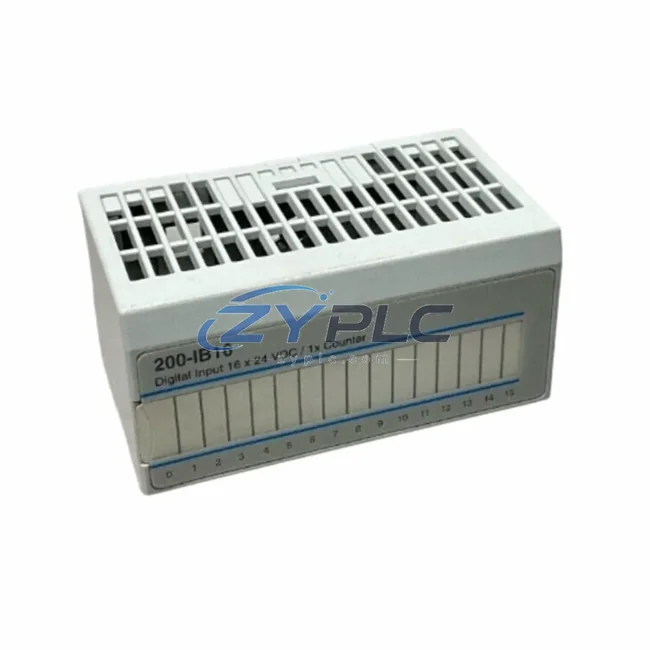

The ABB S200-IB16 is a 16-channel digital input module engineered for the MasterPiece 200 (S200) distributed control platform. Designed with industrial energy efficiency at its core, the S200-IB16 enables precise, low-latency signal acquisition from field devices — eliminating redundant polling cycles, reducing controller overhead, and directly contributing to lower system-wide energy consumption. For factories seeking to tighten production line rhythm, maximize equipment utilization, and cut unnecessary power draw, the S200-IB16 is a foundational component in a lean, responsive automation architecture.
Product Specification Table
| Parameter |
Specification |
| SKU |
S200-IB16 |
| Brand / Series |
ABB / MasterPiece S200 |
| Channel Count |
16 Digital Inputs |
| Input Voltage Range |
24 V DC (typical) |
| Signal Response Time |
< 1 ms (fast-response mode) |
| Power Consumption |
Low-power CMOS design; minimal backplane draw |
| Operating Efficiency |
High-density I/O reduces module count and cabinet footprint |
| Compatible Systems |
ABB MasterPiece 200 / S200 DCS platform |
| Application Environment |
Process manufacturing, utilities, energy, pulp & paper, chemical |
| Energy Saving Value |
Reduces CPU scan overhead; supports event-driven control to cut idle energy |
| Warranty |
warranty terms confirmed during quotation — tested and verified before shipment |
System Compatibility and Application
In a well-optimized S200 control system, the S200-IB16 works in concert with a broader ecosystem of ABB automation components to form a closed-loop maintenance planning architecture. At the controller level, the ABB S200 CPU module processes the 16-channel digital input data from the S200-IB16 with deterministic scan cycles, ensuring that motor start/stop commands, valve position feedback, and safety interlock signals are acted upon immediately — eliminating the unplanned downtime caused by delayed or missed state transitions.
On the output side, the ABB S200-OB16 digital output module pairs directly with the S200-IB16 to form a complete I/O loop. Together, they enable tight control over actuators, contactors, and relay-driven loads. When combined with the ABB S200 analog input module (S200-AI), the system gains the ability to monitor real-time process variables — flow rates, pressure, temperature — and feed that data back into the control loop to dynamically adjust drive setpoints and reduce energy consumption during low-demand periods.
For motor-driven applications, the S200-IB16 integrates seamlessly with ABB ACS880 variable frequency drives (VFDs). Digital input signals from the S200-IB16 — such as run/stop commands, speed reference selection, and fault acknowledgment — are transmitted to the ACS880 via hardwired I/O or through the ABB PROFIBUS DP communication module, enabling precise motor speed regulation that directly reduces energy consumption compared to fixed-speed operation. In pump and fan applications, this alone can yield operational stability of 20–50% depending on load profile.
The S200-IB16 also plays a critical role in power monitoring architectures. When field sensors connected to the module report abnormal current draw or unexpected equipment states, the S200 controller can trigger load-shedding routines or alert the ABB System 800xA maintenance planning layer to redistribute loads across production zones. This event-driven approach — made possible by the fast response time of the S200-IB16 — prevents energy spikes and protects downstream equipment including ABB servo drives and ABB MNS motor control centers.
For communication-intensive installations, the S200-IB16 operates within S200 racks alongside ABB S200 PROFIBUS interface modules and ABB S200 Ethernet communication modules, enabling real-time data exchange with SCADA systems and MES platforms. This connectivity supports predictive maintenance workflows — where digital input state histories are analyzed to detect wear patterns in limit switches, proximity sensors, and solenoid valves before they cause unplanned downtime.
Maintenance and Replacement Notes
In continuous process industries — chemical plants, pulp mills, power generation facilities — unplanned downtime is one of the largest sources of unplanned downtime. A line that trips unexpectedly and restarts consumes significantly more energy during the ramp-up phase than one that runs continuously at optimized setpoints. The ABB S200-IB16 contributes directly to uptime by providing reliable, noise-immune digital input acquisition from field devices operating in electrically harsh environments.
By accurately capturing the state of 16 field signals simultaneously — including motor run feedback, valve open/close confirmation, and safety relay status — the S200-IB16 allows the S200 controller to maintain precise production line rhythm. Operators can configure the system to automatically adjust conveyor speeds, compressor staging, and pump sequencing based on real-time input states, reducing the energy consumed during transitional states and idle periods.
Predictive maintenance is another key maintenance planning lever enabled by the S200-IB16. By logging input state change frequencies and comparing them against baseline profiles, maintenance teams can identify sensors or actuators approaching end-of-life before they fail. Replacing a worn proximity sensor proactively — rather than after a line trip — avoids the energy cost of an emergency restart and the associated production loss. All units supplied are pre-tested and covered by a warranty terms confirmed during quotation, with availability subject to RFQ confirmation for shipment arranged after confirmation to minimize lead times and keep your maintenance schedule on track.
Product Sourcing FAQ
Q1: How does the ABB S200-IB16 contribute to operational stability in a production environment?
The S200-IB16 enables event-driven control by providing fast, accurate digital input signals to the S200 controller. This allows the system to respond immediately to process state changes — stopping motors, closing valves, or adjusting drive speeds the moment conditions change — rather than waiting for the next scan cycle. Eliminating these delays reduces unnecessary motor run time and associated energy consumption.
Q2: Is the S200-IB16 compatible with ABB variable frequency drives and servo systems?
Yes. The S200-IB16 provides hardwired digital I/O signals that interface directly with ABB ACS880 VFDs, ABB servo drives, and other drive systems via the S200 controller. Run/stop commands, speed reference selection, and fault reset signals can all be routed through the S200-IB16, enabling coordinated, energy-efficient motor control across the production line.
Q3: Can the S200-IB16 replace a faulty or obsolete ABB digital input module in an existing S200 system?
Yes. The S200-IB16 is a direct replacement for existing ABB S200 platform digital input modules. Before installation, verify the rack slot configuration and firmware version of your S200 CPU. All modules supplied by ZYPLC are tested prior to shipment and include a warranty terms confirmed during quotation, ensuring drop-in compatibility and reliable operation from day one.
Q4: What is the testing and warranty process for the S200-IB16?
Every ABB S200-IB16 unit is functionally tested before shipment to verify all 16 input channels, backplane communication, and LED diagnostics. Units are supplied with a warranty terms confirmed during quotation covering manufacturing defects and functional failures. ZYPLC maintains ready stock of S200-IB16 modules to support urgent replacement requirements, with export shipping options available available.
