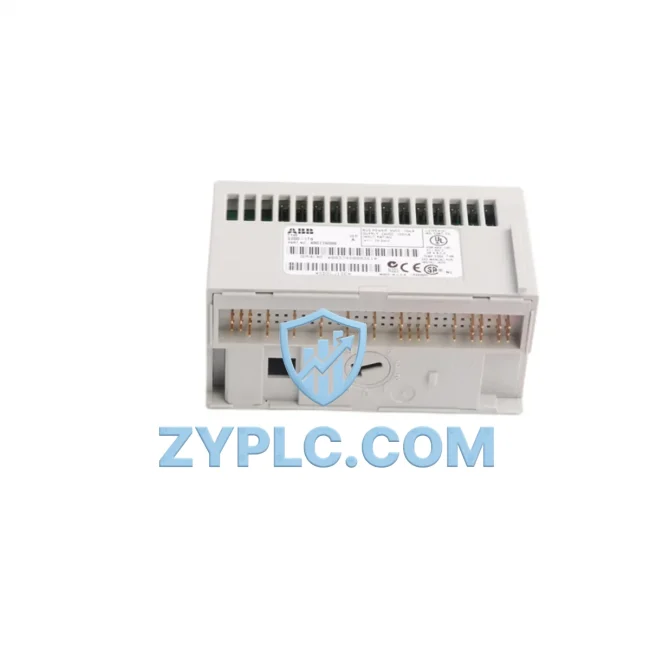

ABB S200-IT8 Industrial Network Interface for AC500 Systems

ABB S200-IT8 Industrial Network Interface for AC500 Systems: Precision Data Links for Smart Factory Connectivity

The ABB S200-IT8 is an 8-channel thermocouple input module engineered for the ABB AC500 PLC series, delivering high-precision temperature signal acquisition and seamless industrial network integration across complex automation architectures. Designed for demanding smart factory environments, the S200-IT8 bridges the gap between field-level sensing devices and upper-level control, SCADA, and HMI systems — enabling real-time data transparency, remote diagnostics, and continuous process optimization across the entire production chain.

In modern industrial sites, temperature data is mission-critical. Whether monitoring furnace zones, motor windings, heat exchangers, or conveyor systems, the S200-IT8 captures thermocouple signals from Types J, K, T, E, R, S, B, and N sensors with high-resolution analog-to-digital conversion, then transmits structured process data directly into the AC500 CPU backplane via the high-speed S-Bus communication protocol. This tight integration eliminates signal latency and ensures that every temperature reading is available to the controller within the scan cycle — a fundamental requirement for closed-loop PID control and alarm management.

Network Communication Table

Connected Automation Data Flow

The S200-IT8 sits at the heart of a layered industrial data architecture. At the field level, thermocouple sensors embedded in process equipment — such as resistance temperature detectors on motor drives, or Type K probes inside industrial ovens — feed analog signals into the S200-IT8’s input terminals. The module performs cold-junction compensation and linearization internally, converting raw millivolt signals into calibrated engineering values before passing them to the ABB AC500 PM573 or PM591 CPU via the S200 backplane bus.

Within the AC500 rack, the CPU aggregates data from the S200-IT8 alongside other S200 I/O modules — including the ABB S200-AO4 analog output module for setpoint control and the ABB S200-DI16 digital input module for interlock and status signals. This consolidated data set is then made available to the plant network through the CPU’s onboard PROFINET IO or Modbus TCP interface, enabling upstream systems to poll live temperature values at millisecond intervals.

At the SCADA and HMI layer, platforms such as ABB Ability System 800xA or third-party SCADA systems running on standard OPC-UA or Modbus TCP drivers subscribe to the AC500 data tags exposed by the S200-IT8 channels. Operators at HMI panels — including ABB CP600 series HMI terminals — can visualize real-time temperature trends, configure alarm thresholds, and acknowledge fault conditions without leaving the control room. When a thermocouple channel detects an over-temperature event, the AC500 CPU triggers an alarm output through the ABB S200-DO16 digital output module, activating cooling fans, shutting down heaters, or sending SMS/email alerts via the plant’s edge gateway.

For distributed installations where the AC500 rack is located remotely from the control room, the S200-IT8 data travels over PROFIBUS DP fieldbus segments or fiber-optic Ethernet links to a central ABB AC500 eCo gateway or a third-party industrial edge gateway. This architecture supports remote diagnostics — maintenance engineers can interrogate individual thermocouple channel status, check module health registers, and perform firmware updates without physical site access. Integration with ABB Ability™ Condition Monitoring or similar IIoT platforms further extends the S200-IT8’s value, enabling predictive maintenance algorithms to flag sensor drift or wiring faults before they cause unplanned downtime.

Variable frequency drives (VFDs) and servo drives monitoring motor winding temperatures also benefit from S200-IT8 integration. By feeding motor thermocouple data into the AC500 controller alongside drive status signals from ABB ACS880 drives via PROFIBUS or PROFINET, the system can implement coordinated thermal protection strategies — reducing drive trips and extending motor service life. The result is a fully connected thermal management loop spanning sensors, controllers, drives, SCADA, and cloud analytics.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate with legacy equipment using incompatible signal standards — 4–20 mA transmitters, discrete thermocouple wiring, and proprietary fieldbus segments that cannot communicate natively with modern Ethernet-based control systems. The ABB S200-IT8 addresses this challenge directly by acting as a protocol bridge: thermocouple signals that would otherwise remain isolated at the field level are digitized, structured, and injected into the AC500 data highway, where they become accessible to any networked system supporting PROFINET, Modbus TCP, or EtherNet/IP.

Data silos are a persistent obstacle to production transparency. When temperature data from a furnace zone, a cooling circuit, and a packaging line exist in separate, disconnected systems, operators cannot correlate events across the production chain. The S200-IT8, integrated into a unified AC500 control architecture, consolidates all thermocouple channels into a single data namespace — enabling cross-system correlation, unified alarm management, and plant-wide OEE dashboards driven by real process data rather than manual reports.

Remote monitoring is another critical capability enabled by the S200-IT8. In facilities with geographically distributed process areas — such as large chemical plants, water treatment stations, or multi-building manufacturing campuses — the ability to monitor temperature conditions from a central SCADA workstation or a mobile HMI application eliminates the need for manual rounds and reduces response time to thermal anomalies. Combined with the AC500’s built-in diagnostic registers, the S200-IT8 supports channel-level fault detection, open-circuit thermocouple alarms, and out-of-range value flags — all readable remotely without interrupting production.

System scalability is built into the S200-IT8’s design. As production lines expand, additional S200 I/O modules can be added to the AC500 rack without modifying the existing network infrastructure. The modular S200 backplane supports up to 10 I/O modules per CPU station, and multiple AC500 stations can be networked together via PROFIBUS or PROFINET to form a distributed control system covering an entire plant floor. This scalability protects the initial investment and ensures that the control architecture can grow alongside the business.

Every ABB S200-IT8 unit supplied by ZYPLC undergoes pre-shipment functional testing, including channel-by-channel signal verification and communication protocol handshake checks, before dispatch. All units are covered by a 12-month warranty and shipped globally via DHL or FedEx Express with full tracking.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB S200-IT8 support for SCADA integration?
The S200-IT8 communicates with the AC500 CPU via the internal S-Bus backplane protocol. The AC500 CPU then exposes this data to upper-level systems via PROFINET IO, PROFIBUS DP, Modbus TCP/RTU, or EtherNet/IP depending on the CPU variant and communication modules installed. This makes the S200-IT8 compatible with virtually all major SCADA and DCS platforms.

Q2: Can the S200-IT8 be used in a network with mixed thermocouple types across channels?
Yes. Each of the 8 input channels on the S200-IT8 can be individually configured for a different thermocouple type (J, K, T, E, R, S, B, or N) via the AC500 programming environment (Automation Builder). This flexibility allows a single module to serve multiple process zones with different sensor types simultaneously.

Q3: How does the S200-IT8 handle network stability and communication redundancy?
The S200-IT8 relies on the AC500 CPU’s communication stack for network stability. ABB AC500 CPUs support watchdog timers, communication error flags, and substitution values — ensuring that if a network segment fails, the controller can maintain safe output states and flag the fault to the SCADA system. For mission-critical applications, redundant PROFINET ring topologies (MRP) can be implemented at the network level.

Q4: What is the warranty coverage and how is the S200-IT8 tested before shipment?
All ABB S200-IT8 modules supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures. Prior to shipment, each unit undergoes functional testing including thermocouple signal simulation on all 8 channels and S-Bus communication verification. Units are shipped in original or equivalent protective packaging via DHL or FedEx Express with end-to-end tracking provided.
