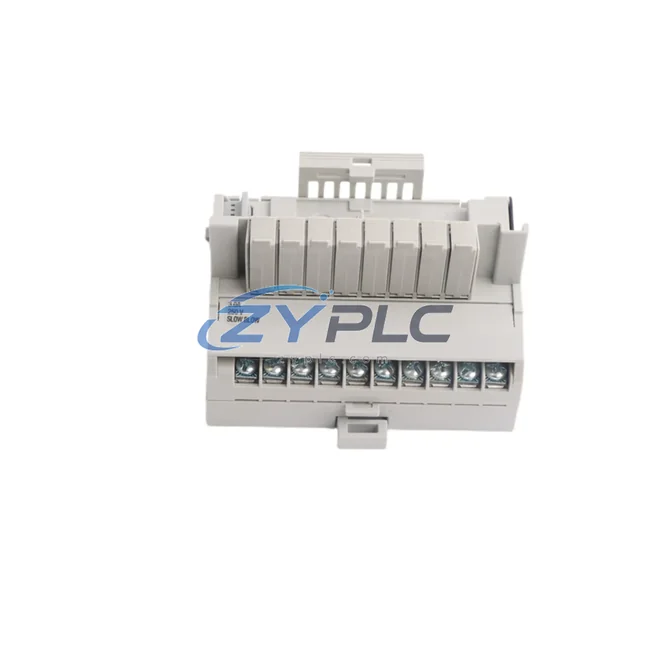

ABB S200-TBNF Fused Terminal Base for S200

ABB S200-TBNF Fused Terminal Base for S200

In a modern industrial control system, every layer of the architecture must communicate with precision, reliability, and structural coherence. The ABB S200-TBNF fused terminal base is engineered to serve as a critical wiring interface within the ABB S200 distributed I/O platform, providing a secure, fused connection point between field wiring and I/O modules across the full control system hierarchy. Whether deployed in a discrete manufacturing cell, a continuous process plant, or a utility substation, the S200-TBNF delivers the structural integrity that system architects depend on when designing for long-term uptime and maintainability.

The S200-TBNF is not simply a passive wiring component — it is a system-level element that defines how field signals enter the control architecture. Its integrated fuse holder provides overcurrent protection at the terminal level, eliminating the need for external fuse blocks and reducing panel footprint. This design philosophy aligns directly with ABB’s S200 system architecture, where modularity, density, and serviceability are prioritized across every layer from the field device to the controller.

Product Specification Table

System Compatibility Notes

The ABB S200-TBNF is designed to operate within a layered automation architecture where each component plays a defined role. At the controller level, an ABB AC500 PM573 CPU or PM591 CPU manages the program logic and communicates with the I/O subsystem via the internal bus or a fieldbus coupler. The S200-TBNF terminal base accepts S200-series I/O modules — such as the ABB S200 DI561 digital input module or the S200 AO523 analog output module — and provides the physical and electrical interface between those modules and the field wiring.

Power distribution within the cabinet is typically handled by an ABB CP-E 24VDC power supply, which feeds both the S200 bus coupler and the field devices through the terminal base fuse circuits. The fused design of the S200-TBNF means that individual field circuits can be isolated and replaced without interrupting adjacent channels, a critical feature in high-availability systems where partial shutdown is not acceptable.

At the network layer, an ABB S200 PROFINET coupler (CI592-CN) or PROFIBUS coupler (CI501-PNIO) connects the S200 I/O station to the plant network, enabling real-time data exchange with the ABB System 800xA DCS or third-party SCADA platforms. The S200-TBNF’s compatibility with these couplers ensures that the terminal base integrates seamlessly into both new installations and retrofit projects where existing bus infrastructure must be preserved.

For human-machine interface requirements, an ABB CP600 HMI panel or a third-party SCADA workstation can visualize the I/O signals routed through the S200-TBNF, providing operators with real-time channel status, fuse condition monitoring, and alarm management. This visibility is essential in process industries where a single blown fuse on an unmonitored terminal base can cause hours of unplanned downtime.

In redundant system designs, the S200-TBNF supports architectures where dual I/O modules or dual power feeds are used to eliminate single points of failure. Combined with an ABB S200 redundancy module and a secondary AC500 CPU in hot-standby configuration, the terminal base becomes part of a fault-tolerant I/O layer that meets the availability requirements of SIL-rated applications in oil and gas, power generation, and water treatment.

Industrial Application Notes

Across industries, the ABB S200-TBNF finds application wherever structured, fused field wiring is required within a modular I/O architecture. In manufacturing automation, it supports high-density I/O panels where dozens of sensors, actuators, and solenoid valves must be individually protected and easily serviceable during production. In power distribution and substation automation, the fused terminal base provides the overcurrent protection required for protection relay inputs and control outputs, where wiring integrity is a safety-critical requirement.

In petrochemical and refinery applications, the S200-TBNF is deployed in marshalling cabinets where field signals from pressure transmitters, flow meters, and temperature sensors are terminated before being routed to the DCS I/O cards. The integrated fuse eliminates the need for separate fuse terminal blocks, reducing cabinet complexity and improving signal traceability during commissioning and maintenance.

For water and wastewater treatment plants, the terminal base supports the connection of level sensors, pump control outputs, and valve position feedback signals within a compact, DIN-rail-mounted I/O station. Its robust construction and compatibility with the S200 system’s IP20-rated modules make it suitable for installation in standard industrial enclosures across a wide range of environmental conditions.

In mining and metals processing, where vibration, dust, and electrical noise are constant challenges, the S200-TBNF’s secure screw-type terminals and fused field circuits provide the connection reliability needed to maintain continuous operation of conveyor systems, crushers, and process monitoring equipment. The ability to replace a fuse without removing the I/O module or interrupting the bus communication is a significant operational advantage in these demanding environments.

Product Compatibility FAQ

Q1: Is the ABB S200-TBNF compatible with all S200 series I/O modules?
The S200-TBNF is designed as a universal fused terminal base within the ABB S200 I/O system and is compatible with the full range of S200 digital and analog I/O modules. It is important to verify the specific module’s terminal base requirements in the ABB S200 system catalog, as some specialized modules may require dedicated terminal base variants. All units supplied by ZYPLC are tested for mechanical and electrical compatibility prior to shipment.

Q2: Can the S200-TBNF be used in a PROFINET or PROFIBUS architecture without modification?
Yes. The S200-TBNF functions as the field-wiring interface and is independent of the fieldbus protocol used at the coupler level. Whether the S200 station uses a PROFINET coupler (CI592-CN), a PROFIBUS coupler (CI501-PNIO), or an EtherNet/IP coupler, the terminal base operates identically. The bus coupler handles protocol translation, while the S200-TBNF manages the physical field connections. This makes the terminal base fully reusable across protocol migration projects.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance?
Every ABB S200-TBNF supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects, electrical performance, and mechanical integrity. Each unit undergoes pre-shipment functional testing to verify terminal continuity, fuse holder integrity, and bus connector alignment. For long-term maintenance support, ZYPLC supports RFQ sourcing for S200-TBNF and related S200 system components, enabling rapid replacement supply for installed systems. Contact our engineering team at plc.sales@zyplc.com for system-level procurement support and compatibility verification.
