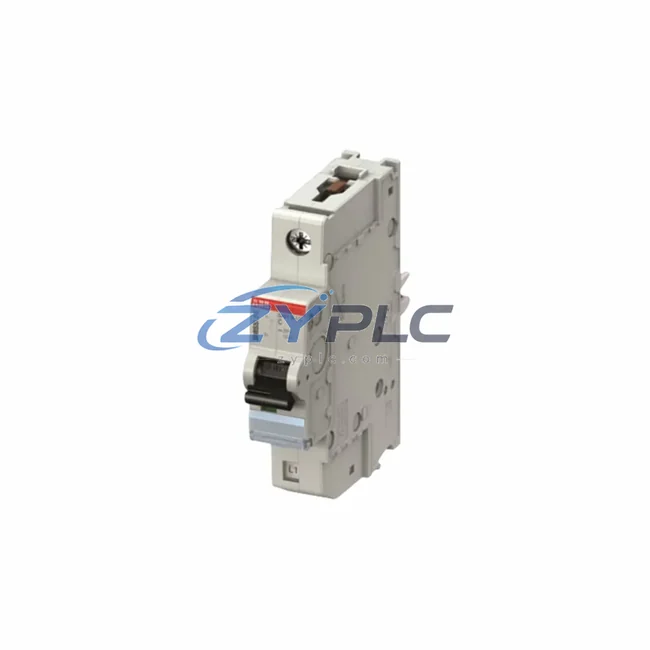

ABB S401M-UCC25 Miniature Circuit Breaker for S400M

ABB S401M-UCC25 Miniature Circuit Breaker for S400M: and Upstream-Downstream Coordination

The ABB S401M-UCC25 is a 25A, UC-curve (universal current), single-pole miniature circuit breaker engineered for deployment within the ABB S400M modular protection platform. Designed to operate reliably across both AC and DC distribution networks, this MCB occupies a critical position in the protective layer of industrial control system architectures — safeguarding downstream field devices, I/O modules, communication gateways, and drive systems from overcurrent and short-circuit events. Its integration into a layered automation environment is not incidental; it is a deliberate engineering choice that supports system consistency, long-term maintainability, and scalable expansion across control cabinet configurations.

In modern industrial automation, circuit protection is no longer a standalone function. The S401M-UCC25 is selected not merely for its 25A rated current, but for its compatibility with the broader S400M system ecosystem — including auxiliary contacts, shunt releases, undervoltage releases, and DIN-rail mounting accessories that allow seamless coordination with adjacent protection and switching devices. This system integration philosophy ensures that every component in the control cabinet contributes to a coherent, verifiable, and maintainable system architecture.

Product Specification Table

System Compatibility Notes

The S401M-UCC25 achieves its highest value when deployed as part of a coordinated, multi-layer control system rather than as an isolated protective device. In a typical industrial control cabinet serving a manufacturing or process automation application, the S401M-UCC25 is positioned downstream of a main incoming circuit breaker — such as the ABB S800S-UCK or ABB T1B 160 MCCB — and upstream of branch loads including PLC power supplies, I/O distribution modules, and field instrument circuits.

Within the power distribution layer, the S401M-UCC25 works in coordination with ABB CP-E 24VDC/5.0 or CP-E 24VDC/10.0 SMPS units, which supply regulated 24VDC to the control logic layer. Proper selectivity between the S401M-UCC25 and the upstream MCCB ensures that a fault on a single branch does not cascade into a full panel shutdown — a critical requirement in continuous process environments such as petrochemical plants, water treatment facilities, and power generation substations.

At the control layer, the S401M-UCC25 protects the power feed to ABB AC500 PLC CPU modules (e.g., PM573-ETH or PM591-ETH), ensuring that transient overcurrents from inductive loads or wiring faults do not compromise the integrity of the programmable logic controller. The UC-curve characteristic of the S401M-UCC25 is particularly well-suited to DC bus protection in systems where the AC500 PLC communicates via PROFIBUS DP, Modbus RTU, or EtherNet/IP — protocols that demand uninterrupted power to maintain network synchronization and data integrity.

In the I/O layer, the S401M-UCC25 is commonly used to protect individual 24VDC supply rails feeding ABB CI501-PNIO or CI502-PNIO PROFINET I/O communication interface modules, as well as distributed I/O racks connected via ABB S900 remote I/O systems. This granular branch protection strategy allows maintenance engineers to isolate a single I/O segment without interrupting the rest of the control system — a significant advantage during live troubleshooting and planned maintenance windows.

For drive and motor control applications, the S401M-UCC25 provides upstream protection for ABB ACS355 or ABB ACS580 variable frequency drives rated up to 7.5kW at 400VAC, where the 25A branch circuit rating aligns with the input current requirements of these drive units. Coordinating the S401M-UCC25 with ABB AF series contactors (e.g., AF09-30-10 or AF16-30-10) and ABB TA series thermal overload relays creates a complete motor starter assembly that meets IEC 60947-4-1 coordination requirements.

At the human-machine interface layer, the S401M-UCC25 protects the 24VDC supply to ABB CP600 series HMI panels, ensuring that operator workstations remain powered and communicative even during fault conditions on adjacent branches. This architectural separation between HMI power and field device power is a fundamental principle of fault-tolerant control system design.

Industrial Application Notes

Manufacturing and Discrete Automation: In automotive assembly lines and electronics manufacturing facilities, the S401M-UCC25 is deployed in control panels managing robotic welding cells, conveyor drive systems, and vision inspection stations. Its fast-acting UC-curve response protects sensitive servo drive power supplies from short-circuit damage, while its compact 17.5mm width maximizes panel space utilization in high-density cabinet designs.

Power Generation and Electrical Utilities: Substations and power plant auxiliary control panels rely on the S401M-UCC25 for DC bus protection in battery-backed control systems. The device’s compatibility with both AC and DC circuits makes it an ideal choice for hybrid AC/DC distribution panels common in renewable energy installations, including solar inverter control cabinets and wind turbine nacelle control systems.

Petrochemical and Process Industries: In hazardous area control rooms and safe-area marshalling cabinets serving oil refineries and chemical processing plants, the S401M-UCC25 provides reliable branch protection for intrinsic safety barriers, field junction boxes, and HART-enabled transmitter power supplies. Its IEC 60947-2 certification ensures compliance with the stringent electrical safety standards required in ATEX-classified environments.

Water and Wastewater Treatment: Municipal water treatment facilities and pumping stations use the S401M-UCC25 to protect PLC I/O modules, flow meter transmitters, and chemical dosing pump controllers. The device’s wide operating temperature range (-25°C to +55°C) accommodates the thermal cycling conditions typical of outdoor pump station control panels.

Mining and Metallurgy: Underground mining control systems and surface ore processing plants deploy the S401M-UCC25 in motor control centers and conveyor drive panels, where its robust breaking capacity and vibration-resistant DIN-rail mounting ensure reliable operation in high-dust, high-vibration environments.

Product Compatibility FAQ

Q1: Is the ABB S401M-UCC25 compatible with the full range of S400M series accessories, and can it be integrated into an existing S400M panel without replacing the busbar system?

Yes. The S401M-UCC25 is fully compatible with the ABB S400M accessory ecosystem, including auxiliary contact blocks (S2C-H6R, S2C-A1), shunt releases (S2C-UA), undervoltage releases (S2C-UVA), and phase barriers. It mounts on standard 35mm DIN rail and is compatible with ABB’s SZ-series busbar systems, allowing it to be added to an existing S400M panel without modifying the main busbar or incoming protection device. This plug-and-play expandability is a key advantage for system integrators managing phased panel upgrades.

Q2: How should the S401M-UCC25 be coordinated with upstream MCCBs and downstream loads to achieve full selectivity in a multi-tier protection architecture?

Achieving full selectivity requires that the S401M-UCC25’s time-current characteristic curve does not overlap with the upstream MCCB’s curve in the overload region. For a 25A branch protected by the S401M-UCC25, the upstream device should be rated at a minimum of 63A (e.g., ABB S800S-UCK63) with a higher breaking capacity. In the short-circuit region, zone selectivity can be achieved by using ABB’s selectivity tables (available in the S400M product catalog) to verify that the let-through energy (I²t) of the S401M-UCC25 is lower than the withstand capacity of all downstream components. For DC bus applications, ensure that the DC voltage rating of the S401M-UCC25 is not exceeded for the number of poles used in series.

Q3: What does the warranty terms confirmed during quotation cover for the S401M-UCC25, and what is the recommended maintenance procedure for long-term reliability in continuous-process installations?

The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions as defined by IEC 60898-1 and IEC 60947-2. It does not cover damage resulting from installation errors, overvoltage events beyond rated limits, or mechanical damage. For long-term reliability in continuous-process installations, it is recommended to perform annual thermal imaging inspections of the panel to detect loose connections, verify that the MCB has not experienced nuisance tripping events (which may indicate an undersized rating or harmonic distortion on the supply), and exercise the manual trip mechanism annually to prevent contact welding. Replacement units are maintained RFQ Available to support rapid swap-out during planned maintenance shutdowns, minimizing process downtime.
