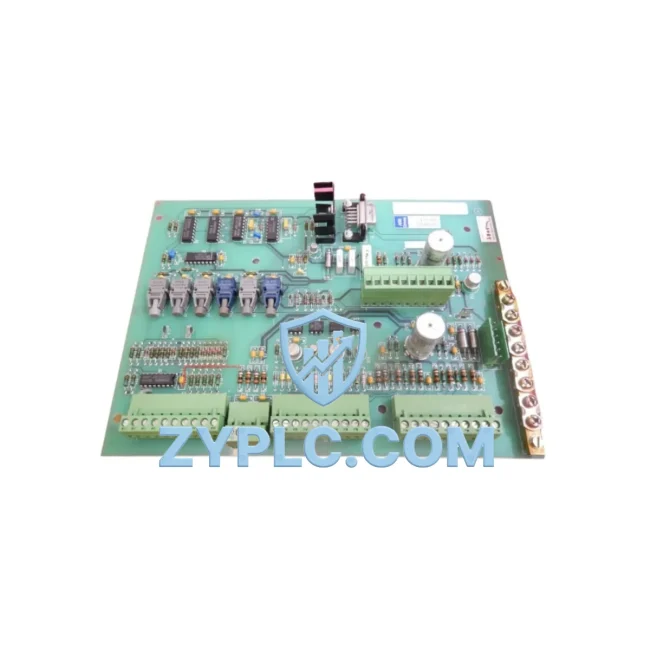

ABB SAFT 189 TSI Industrial Network Interface for Drive Control Systems

ABB SAFT 189 TSI: Industrial Data Link for Smart Factory Drive Control

The ABB SAFT 189 TSI is a high-performance industrial network interface board engineered for seamless integration within ABB’s drive control architecture. Designed to operate at the intersection of field-level devices and supervisory control systems, the SAFT 189 TSI enables reliable, real-time data exchange between variable speed drives, PLC controllers, remote I/O modules, HMI panels, and SCADA platforms. In modern smart factory environments where production transparency and uptime are non-negotiable, this interface board serves as a critical communication node — bridging the gap between rotating machinery and digital control infrastructure.

Built on ABB’s proven drive communication framework, the SAFT 189 TSI supports the TSI (Torque and Speed Interface) protocol, enabling deterministic signal transmission between the drive’s internal control logic and external automation networks. Whether deployed in a standalone drive application or integrated into a multi-axis coordinated motion system, this board ensures that torque references, speed feedback, fault diagnostics, and operational status data flow continuously and accurately across the control hierarchy.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the ABB SAFT 189 TSI sits at the heart of the drive communication chain. Signal acquisition begins at the field level, where sensors — including encoders, temperature transmitters, and current transducers — feed real-time process data into the ABB ACS800 or ABB ACS600 variable speed drive. The SAFT 189 TSI interface board then translates this raw drive data into structured communication frames compatible with the plant’s automation backbone.

Upstream, the board interfaces with ABB’s DDCS (Distributed Drive Communication System) fiber optic network, enabling high-speed, noise-immune data transfer to the master controller. In coordinated multi-drive applications — such as those using the ABB NDBU-95 branching unit — the SAFT 189 TSI allows multiple drives to share a single fiber optic ring, dramatically reducing wiring complexity while maintaining deterministic cycle times.

At the PLC level, an ABB AC500 or Siemens S7-300 controller receives drive status, fault codes, and process variables via the DDCS link, enabling closed-loop control logic to respond dynamically to load changes or fault conditions. The SAFT 189 TSI’s data is simultaneously available to SCADA systems — such as those running on ABB System 800xA or Wonderware InTouch — where operators monitor drive performance, energy consumption, and alarm histories in real time.

For HMI integration, the drive data surfaced by the SAFT 189 TSI can be visualized on ABB CP600 operator panels or third-party HMI terminals, giving line operators immediate visibility into speed setpoints, actual torque output, and drive health indicators. In remote monitoring scenarios, edge gateways — such as the ABB Edge Controller or a Moxa MGate protocol converter — aggregate SAFT 189 TSI data streams and forward them to cloud-based MES or ERP platforms, enabling predictive maintenance workflows and OEE analysis without requiring on-site personnel.

The SAFT 189 TSI also plays a key role in drive-to-drive synchronization applications. When paired with the ABB NAMC-11 motor control board and NPOW-41 power supply module within the same drive cabinet, the interface board ensures that torque and speed references are distributed with microsecond-level precision — critical for applications such as winding machines, extruders, and multi-motor conveyors where speed mismatch causes product defects or mechanical stress.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — where drives, PLCs, sensors, and SCADA systems speak incompatible communication languages, creating data silos that prevent holistic production visibility. The ABB SAFT 189 TSI directly addresses this challenge by providing a standardized, high-integrity communication interface that integrates ABB drives into the broader automation network without requiring custom middleware or proprietary gateways.

In plants where older ABB drives lack native fieldbus connectivity, the SAFT 189 TSI serves as the communication backbone, enabling these assets to participate in modern SCADA architectures. Operators gain the ability to remotely monitor drive parameters — including output frequency, DC bus voltage, motor current, and fault history — from a centralized control room, eliminating the need for manual inspection rounds and reducing mean time to repair (MTTR) when faults occur.

Production line transparency is further enhanced by the SAFT 189 TSI’s ability to stream continuous process data to historian servers, enabling trend analysis, shift reporting, and energy auditing. When integrated with ABB Ability™ digital services or third-party analytics platforms, this data supports predictive maintenance models that identify bearing wear, insulation degradation, and cooling fan failures before they cause unplanned downtime.

For facilities undergoing digital transformation, the SAFT 189 TSI provides a cost-effective path to IIoT connectivity — allowing existing drive assets to be networked and monitored without full drive replacement. System expansion is straightforward: additional drives equipped with SAFT 189 TSI boards can be added to the DDCS fiber ring with minimal configuration, supporting phased capacity increases without disrupting existing production.

Every ABB SAFT 189 TSI unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying communication integrity, board initialization, and protocol handshake performance. Units are shipped with full 12-month warranty coverage, ensuring operational confidence from day one of installation.

Industrial Connectivity FAQ

Q1: What communication protocol does the ABB SAFT 189 TSI use, and is it compatible with third-party controllers?
The SAFT 189 TSI uses ABB’s proprietary DDCS (Distributed Drive Communication System) protocol over fiber optic links. It is natively compatible with ABB ACS and DCS series drives and ABB master controllers. Integration with third-party PLCs or SCADA systems typically requires an ABB NDBU branching unit or a compatible protocol gateway to bridge DDCS to standard fieldbus protocols such as PROFIBUS, Modbus RTU, or EtherNet/IP.

Q2: How does the SAFT 189 TSI ensure network stability in high-interference industrial environments?
The SAFT 189 TSI communicates over fiber optic cables, which are inherently immune to electromagnetic interference (EMI) generated by variable speed drives, motors, and power switching equipment. This makes it ideal for deployment in electrically noisy environments such as steel mills, paper machines, and chemical processing plants where copper-based communication links are prone to signal degradation.

Q3: Can the SAFT 189 TSI support system expansion without reconfiguring the existing network?
Yes. The DDCS fiber optic ring topology supported by the SAFT 189 TSI allows additional drives to be added to the network with minimal disruption. New nodes are assigned unique addresses within the ring, and the master controller automatically recognizes them during the next network scan cycle. This plug-and-expand architecture makes the SAFT 189 TSI well-suited for phased production line expansions.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
All SAFT 189 TSI units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and communication failures. Prior to shipment, each board undergoes functional verification including power-on initialization, DDCS protocol handshake testing, and visual inspection for component integrity. Warranty claims are supported by ZYPLC’s technical team, with replacement or repair turnaround coordinated to minimize production impact.
