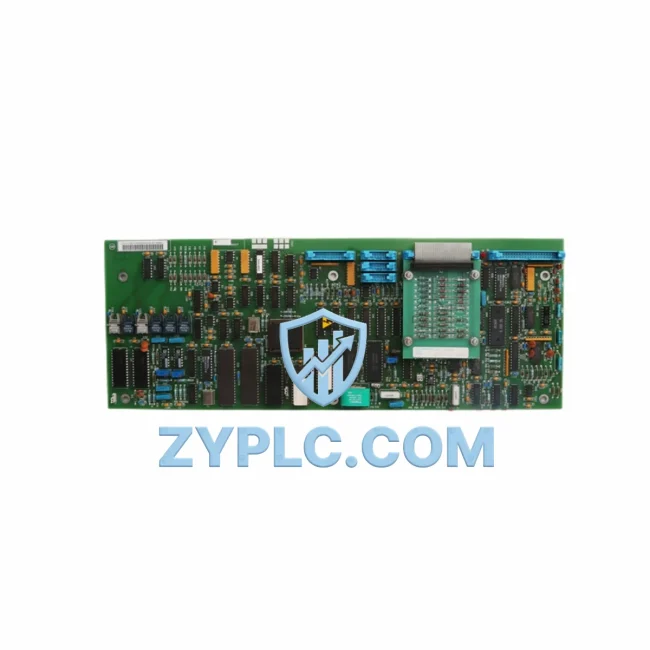

ABB SAFT103CON CPU Control PCB for SAFT Series

ABB SAFT103CON CPU Control PCB for SAFT Series

The ABB SAFT103CON is a dedicated CPU Control PCB engineered for deployment within ABB’s SAFT Series variable frequency drive platform. Rather than functioning as a standalone component, the SAFT103CON occupies a critical position within the layered control architecture of industrial automation systems — serving as the computational core that coordinates signal processing, drive sequencing, fault diagnostics, and inter-module communication across the full drive stack. In demanding industrial environments where system uptime, signal integrity, and long-term maintainability are non-negotiable, the SAFT103CON delivers the processing reliability and architectural compatibility that engineering teams depend on.

Understanding the SAFT103CON requires viewing it within the broader context of a complete drive control system. In a typical SAFT Series installation, the CPU control board interfaces directly with the gate driver layer, the I/O expansion modules, the power supply board, and the fieldbus communication gateway — forming a tightly integrated control hierarchy. The SAFT103CON manages the execution of PWM modulation algorithms, monitors real-time feedback from current and voltage sensors, and coordinates protective shutdown sequences in response to fault conditions. Its role is not peripheral; it is the architectural anchor around which the entire drive system is organized.

Product Specification Table

System Compatibility Notes

The SAFT103CON achieves its full value when integrated within a coherent, multi-layer control architecture. In a complete SAFT Series drive system, the CPU board works in close coordination with the SAFT110POW power supply board, which provides the regulated DC voltages required for stable CPU operation. The gate driver interface board — typically the SAFT121CHC or equivalent IGBT gate control module — receives switching commands from the SAFT103CON and translates them into precise gate pulses for the power semiconductor stack.

On the I/O layer, the SAFT103CON communicates with analog and digital I/O expansion boards such as the SAFT122POW and associated signal conditioning modules, enabling the drive to receive process feedback signals from field instrumentation including encoders, thermistors, and pressure transmitters. For systems requiring fieldbus connectivity, the RDCO-01 or RDCO-02 communication option modules connect to the SAFT103CON’s communication interface, enabling PROFIBUS-DP, Modbus RTU, or DeviceNet integration with the plant-level SCADA or DCS platform.

In redundant drive architectures — common in critical process industries such as oil and gas, power generation, and water treatment — the SAFT103CON supports hot-standby configurations where a secondary drive unit monitors the primary. The CPU board’s fault logging and diagnostic output capabilities allow maintenance engineers to retrieve historical fault data, reducing mean time to repair (MTTR) and supporting predictive maintenance strategies. The NPBA-12 PROFIBUS adapter and NMBP-01 Modbus Plus modules are frequently deployed alongside the SAFT103CON in such architectures to maintain communication continuity during switchover events.

At the human-machine interface layer, operator panels such as the CDP312R control panel or remote keypad units connect to the drive system and display real-time status data processed by the SAFT103CON. This integration ensures that operators have immediate visibility into drive operating state, output frequency, motor current, and active fault codes — all of which are managed and transmitted by the CPU control board. The result is a fully coordinated control system where every layer — from power conversion to operator interface — depends on the SAFT103CON as its central processing authority.

Industrial Application Notes

The SAFT103CON is deployed across a wide range of heavy industrial and process automation environments where ABB SAFT Series drives form the backbone of motor control infrastructure.

In manufacturing and packaging production lines, the SAFT103CON enables precise speed and torque control for conveyor systems, winding machines, and multi-axis coordinated drive trains. Its ability to maintain consistent PWM output under variable load conditions makes it well-suited for high-cycle applications where drive reliability directly impacts production throughput.

In power generation and electrical utilities, SAFT Series drives equipped with the SAFT103CON are used to control induced draft fans, boiler feed pumps, and cooling water circulation systems. The CPU board’s fault detection and protective relay coordination capabilities are essential in these environments, where unplanned drive trips can cascade into broader plant outages.

In petrochemical and refinery applications, the SAFT103CON supports continuous process drives operating in hazardous area control cabinets. Its compatibility with fieldbus communication modules allows seamless integration with Honeywell DCS, Yokogawa CENTUM, or ABB System 800xA distributed control platforms, enabling centralized monitoring and remote parameter adjustment without physical access to the drive cabinet.

In water and wastewater treatment facilities, the SAFT103CON is commonly found in pump station variable speed drive panels, where it manages flow control algorithms and coordinates with SCADA systems via PROFIBUS or Modbus. Its long operational lifespan and availability as a tested replacement component make it a preferred choice for facility engineers managing aging drive infrastructure.

In mining, metallurgy, and mineral processing, the SAFT103CON supports high-power drive systems controlling ball mills, crushers, conveyor drives, and hoisting equipment. The CPU board’s robust signal processing architecture handles the high-noise electrical environments typical of these facilities, maintaining control stability even under severe electromagnetic interference conditions.

Product Compatibility FAQ

Q1: Is the SAFT103CON directly interchangeable with other ABB SAFT Series CPU boards, and what compatibility checks are required before installation?
The SAFT103CON (57777290) is designed for specific positions within the SAFT Series drive architecture, and compatibility depends on the drive model, firmware revision, and hardware configuration of the host unit. Before installation, engineers should verify the drive’s main circuit board revision, confirm that the replacement board’s firmware version is compatible with the existing gate driver and I/O modules, and review the ABB ACS600/ACS800 hardware manual for board-specific installation procedures. In most cases, the SAFT103CON is a direct functional replacement within its designated drive platform, but parameter backup and restoration via the CDP312R panel or DriveWindow software is recommended prior to board swap.

Q2: How does the SAFT103CON support system redundancy and what provisions exist for minimizing downtime during a CPU board failure?
The SAFT103CON supports system-level redundancy through its compatibility with ABB’s drive redundancy architectures, where a standby drive unit can assume control upon detection of a primary drive fault. The CPU board’s onboard fault memory retains the last fault history, enabling rapid post-failure diagnostics. For critical applications, maintaining a tested spare SAFT103CON in the control room inventory is the most effective redundancy strategy. Our 12-Month Warranty covers the replacement board for the full warranty period, ensuring that spare inventory carries the same quality assurance as the primary installation unit.

Q3: What commissioning steps are required when integrating the SAFT103CON into an existing SAFT Series drive system, and how does the 12-Month Warranty apply to field-installed units?
Commissioning the SAFT103CON involves restoring the drive’s parameter set from a prior backup, verifying I/O signal assignments, confirming fieldbus node addressing, and performing a no-load test run before returning the drive to service. Engineers should also verify that the motor control macro and application macro settings are correctly restored, as these are stored on the CPU board. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of delivery. Warranty claims are supported through our technical team at plc.sales@zyplc.com, and replacement or repair is coordinated to minimize system downtime.
