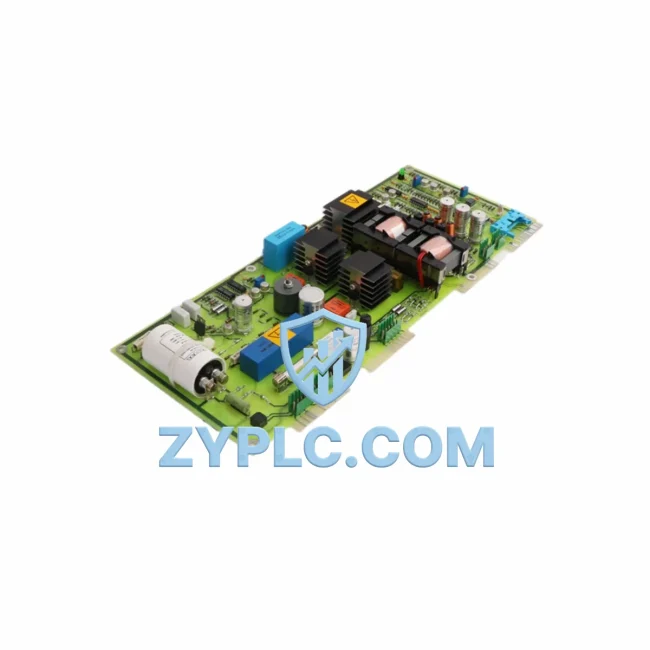

The ABB SAFT172POW is a dedicated power supply board engineered for the ABB SAFT 172 series of DC drive systems, serving as a critical node in the industrial data chain that connects field-level devices to supervisory control and data acquisition platforms. In modern smart factory environments, the integrity of the power supply layer is inseparable from the reliability of the communication network — and the SAFT172POW is designed to meet both demands simultaneously. Whether deployed in continuous process industries, discrete manufacturing lines, or energy management systems, this board ensures that the SAFT 172 drive platform maintains stable, uninterrupted operation while feeding real-time status data upward through the automation hierarchy.

Network Communication Table

Connected Automation Data Flow

In a fully integrated ABB drive system, the SAFT172POW sits at the heart of the power conversion and control architecture. The board interfaces directly with the SAFT 172 main control board (SAFT172CON), which manages the closed-loop speed and torque regulation of the DC drive. Power status signals — including DC bus voltage levels, rectifier firing angles, and thermal protection states — are continuously sampled and passed through the DDCS fiber-optic communication ring to the NAMC or RMIO master adapter, which then bridges the drive data onto the plant-level fieldbus network.

On the fieldbus side, the RDCO DDCS Communication Module or the RDNA DeviceNet Adapter translates DDCS protocol frames into PROFIBUS-DP or DeviceNet packets, making the SAFT172POW’s operational data visible to ABB AC500 PLC controllers and third-party SCADA systems such as Wonderware InTouch or Ignition by Inductive Automation. Remote I/O nodes — including ABB S800 I/O modules — collect analog and digital signals from field sensors (current transformers, temperature probes, encoder feedback) and relay them through the same network backbone, creating a unified data stream from the motor shaft all the way to the control room dashboard.

HMI panels, such as the ABB CP600 series operator panels, display real-time drive parameters sourced from the SAFT172POW’s power stage diagnostics, enabling operators to monitor DC link voltage, output current, and fault codes without leaving the control station. When a fault condition is detected — such as an overcurrent trip or a power supply undervoltage — the alarm is propagated through the DDCS ring to the ABB Advant OCS / MOD 300 DCS or a modern ABB System 800xA platform, where it triggers automated interlock sequences and sends notifications to maintenance teams via the SCADA alarm management layer.

For edge connectivity and Industry 4.0 integration, the drive network can be extended through an ABB NETA-21 Remote Monitoring Tool or a compatible industrial edge gateway, which aggregates DDCS data and publishes it to cloud-based analytics platforms via MQTT or OPC-UA. This architecture allows predictive maintenance algorithms to analyze SAFT172POW power stage trends — such as gradual capacitor degradation or rectifier efficiency loss — before they result in unplanned downtime. Variable frequency drives in adjacent production cells, including ABB ACS880 series AC drives, can share the same PROFIBUS or EtherNet/IP backbone, enabling cross-drive diagnostics and coordinated production scheduling from a single SCADA console.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy drive installations is protocol fragmentation — older DC drive platforms like the SAFT 172 series use proprietary DDCS communication that does not natively speak to modern Ethernet-based control systems. The SAFT172POW, when paired with the appropriate DDCS adapter modules, resolves this isolation by acting as the power and communication anchor that keeps the SAFT 172 platform alive and network-visible within a heterogeneous automation environment.

Data silos are eliminated when the SAFT172POW’s real-time power diagnostics are made accessible to plant-level SCADA and MES systems. Production line transparency improves dramatically: operators can see not just whether a drive is running, but exactly how much power it is consuming, what its thermal margin is, and how many hours remain before the next recommended maintenance interval. This level of visibility supports OEE (Overall Equipment Effectiveness) calculations and enables data-driven decisions about production scheduling and asset lifecycle management.

For sites undergoing digital transformation, the SAFT172POW provides a cost-effective path to connectivity without requiring a full drive replacement. By maintaining the existing SAFT 172 hardware and adding a DDCS-to-Ethernet gateway, plant engineers can integrate decades-old DC drive infrastructure into a modern IIoT architecture — preserving capital investment while achieving the remote monitoring, remote diagnostics, and system expansion capabilities demanded by smart factory standards. All units supplied by ZYPLC are fully tested prior to shipment and covered by a 12-month warranty, ensuring that your production network remains stable from day one of installation.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB SAFT172POW support for SCADA integration?
The SAFT172POW operates within the ABB DDCS (Distributed Drive Communication System) fiber-optic network. For integration with SCADA or DCS platforms, it is used in conjunction with DDCS adapter modules such as the RDCO or RDNA, which translate DDCS data into PROFIBUS-DP, DeviceNet, or Modbus RTU — enabling seamless connectivity with ABB System 800xA, Siemens WinCC, or any OPC-compatible supervisory system.

Q2: How does the SAFT172POW affect network stability and communication latency in a SAFT 172 drive system?
The SAFT172POW provides the regulated DC power rails that the SAFT 172 control electronics depend on for deterministic operation. A stable, noise-free power supply directly reduces jitter in the DDCS communication cycle, which typically operates at scan rates of 2–10 ms. Replacing a degraded SAFT172POW restores the drive’s ability to maintain synchronous communication with the master PLC or DCS controller, eliminating spurious fault trips caused by power supply instability.

Q3: Can the SAFT172POW be integrated into an existing EtherNet/IP or PROFINET network without replacing the entire drive?
Yes. The SAFT 172 platform supports protocol gateway adapters that bridge the internal DDCS ring to modern industrial Ethernet protocols. The SAFT172POW itself does not require replacement to achieve this — it continues to serve its power supply function while the gateway adapter handles protocol conversion. This approach allows system expansion and integration with newer PLC platforms or cloud-based monitoring tools without disrupting existing production processes.

Q4: What testing and warranty coverage is provided for the SAFT172POW?
Every SAFT172POW unit supplied by ZYPLC undergoes full functional testing prior to shipment, including power output verification, ripple measurement, and communication interface validation. All units are covered by a 12-month warranty from the date of delivery. In the event of a fault within the warranty period, ZYPLC provides rapid replacement support to minimize production downtime. Stock is maintained for immediate dispatch via DHL or FedEx international express.
