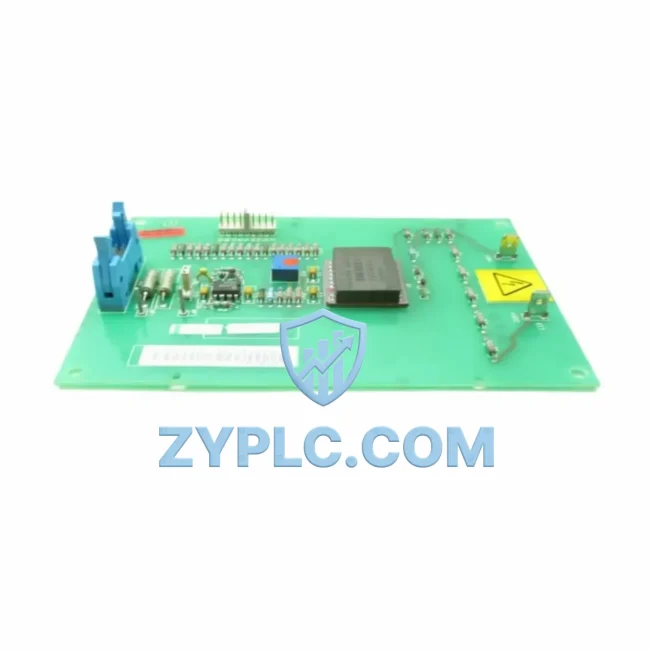

ABB SAFT183 VMC AC Drive Control Board | ACS Series

ABB SAFT183 VMC: Industrial Data Link for Smart Factory Drive Networks

The ABB SAFT183 VMC AC Drive Control Board is a precision-engineered communication and control interface designed for the ABB ACS Series variable frequency drive platform. In modern smart factory environments, where seamless data flow between field devices, PLC controllers, SCADA systems, and upper-level MES platforms is non-negotiable, the SAFT183 VMC serves as a critical node in the industrial data chain. It enables real-time signal acquisition, protocol-level communication, and reliable network transmission across multi-vendor automation architectures — making it an indispensable component for engineers tasked with building transparent, connected production lines.

As industrial sites evolve from isolated machine control toward fully integrated digital factories, the demand for robust drive-level communication boards has never been higher. The SAFT183 VMC addresses this demand by providing stable, low-latency data exchange between the ACS Series drive and the broader automation network — from sensor-level inputs to enterprise-level analytics platforms.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the ABB SAFT183 VMC sits at the heart of the drive communication layer. Signal acquisition begins at the sensor and actuator level — temperature transmitters, pressure transducers, and encoder feedback devices feed real-time process data into the ABB ACS880 or ACS580 variable frequency drive. The SAFT183 VMC control board processes these signals and translates them into structured data packets compatible with the plant’s fieldbus backbone.

Upstream, the SAFT183 VMC communicates with ABB AC500 PLC controllers via PROFIBUS-DP or Modbus RTU, enabling closed-loop speed and torque control with millisecond response times. In parallel, the drive data — including running frequency, output current, fault codes, and energy consumption — is forwarded through the network to ABB Panel Builder 800 HMI terminals or third-party SCADA platforms such as Wonderware InTouch or Ignition by Inductive Automation.

For sites running distributed I/O architectures, the SAFT183 VMC integrates seamlessly with ABB S800 Remote I/O modules, allowing field signals from remote junction boxes to be aggregated and transmitted over a single network segment. This reduces wiring complexity and improves signal integrity across long cable runs in large manufacturing facilities.

In multi-drive systems — such as coordinated conveyor lines, pump stations, or compressor banks — the SAFT183 VMC enables peer-to-peer drive communication through the ABB DDCS (Distributed Drive Control System) fiber optic link, synchronizing speed references and torque limits across multiple ACS800 or ACS880 units without burdening the main PLC scan cycle.

At the network edge, industrial Ethernet switches such as the ABB EL1000 Series or Hirschmann MACH series provide the managed switching infrastructure that carries SAFT183 VMC data packets from the drive cabinet to the control room. Where protocol conversion is required — for example, bridging PROFIBUS-DP drive data to an OPC-UA SCADA server — an ABB CI854 PROFIBUS Gateway or Anybus X-gateway handles the translation transparently, ensuring data integrity across protocol boundaries.

For remote monitoring and predictive maintenance applications, the SAFT183 VMC’s fault and diagnostic data can be routed through an ABB Ability™ Smart Sensor edge gateway or a Moxa MGate industrial protocol gateway, enabling cloud-based condition monitoring without modifying the existing drive control architecture. This data path supports alarm forwarding, trend logging, and remote parameter adjustment — key capabilities for reducing downtime in 24/7 production environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A plant may simultaneously operate legacy PROFIBUS-DP drives alongside newer EtherNet/IP-capable controllers, creating data silos that prevent unified monitoring and control. The ABB SAFT183 VMC directly addresses this challenge by providing a standardized communication interface at the drive level, enabling the ACS Series drive to participate in both legacy fieldbus networks and modern Ethernet-based architectures through appropriate gateway solutions.

Production line transparency — the ability to see real-time drive status, energy consumption, and fault history from a central SCADA or MES dashboard — is a core requirement for lean manufacturing and OEE (Overall Equipment Effectiveness) improvement programs. The SAFT183 VMC enables this transparency by ensuring that drive-level data is continuously available to upper-level systems, eliminating the need for manual data collection rounds and reducing the risk of undetected equipment degradation.

Remote diagnostics capability is another critical value delivered by the SAFT183 VMC. Maintenance engineers can access drive fault logs, parameter settings, and real-time operating data from the control room or even from off-site locations via VPN-connected SCADA clients — without requiring physical access to the drive cabinet. This capability is particularly valuable in hazardous environments, high-voltage switchgear rooms, or geographically distributed pump and compressor stations.

System scalability is built into the SAFT183 VMC’s design philosophy. As production capacity expands and new drives are added to the network, each additional ACS Series unit equipped with a SAFT183 VMC board can be integrated into the existing communication architecture with minimal configuration effort — supporting phased factory expansion without requiring a complete network redesign.

Every ABB SAFT183 VMC unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication interface integrity, control signal response, and firmware compatibility with the target ACS Series drive platform. This ensures that the board arrives ready for installation, minimizing commissioning time and reducing the risk of field failures during startup.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB SAFT183 VMC support?
The SAFT183 VMC is designed for the ABB ACS Series drive platform and supports integration with PROFIBUS-DP and Modbus RTU fieldbus networks natively. For EtherNet/IP, PROFINET, or OPC-UA connectivity, the board works in conjunction with ABB-approved protocol gateways such as the CI854 or third-party Anybus solutions, enabling seamless integration into virtually any industrial network architecture.

Q2: How does the SAFT183 VMC ensure network stability in high-interference industrial environments?
The SAFT183 VMC is engineered to ABB’s industrial-grade EMC standards, with shielded signal paths and robust connector design that minimize susceptibility to electrical noise from motor drives, welding equipment, and high-frequency switching devices. When installed according to ABB’s cable routing and grounding guidelines, the board maintains reliable communication even in electrically noisy environments typical of heavy industry.

Q3: Can the SAFT183 VMC be used with SCADA and HMI systems from other vendors?
Yes. Through standard fieldbus protocols and gateway solutions, the SAFT183 VMC can supply drive data to SCADA platforms including Wonderware, Ignition, Citect, and WinCC, as well as HMI terminals from Siemens, Schneider Electric, and other major vendors. The key requirement is that the SCADA/HMI system supports the fieldbus protocol used in the network segment where the ACS Series drive is installed.

Q4: What warranty and support does ZYPLC provide for the ABB SAFT183 VMC?
All ABB SAFT183 VMC units supplied by ZYPLC are covered by a against manufacturing defects and communication failures. Each unit undergoes pre-shipment functional testing before dispatch. Global shipping is available via DHL and FedEx with full tracking. For technical support, spare part sourcing, or bulk order inquiries, contact our team directly.

—
